Anritsu VNA Master MS2024B Maintenance Manual

Removal and Replacement 6-14 LCD Assembly Replacement
Model MS20xxB MM PN: 10580-00303 Rev. D 6-33
5. Use a Phillips screw driver to remove the four screws securing the LCD to the housing (Figure 6-25).
6. Disconnect the LCD backlight cable from the LCD backlight PCB.
7. Disconnect the LCD cable from the side of the LCD.
8. Carefully remove the LCD.

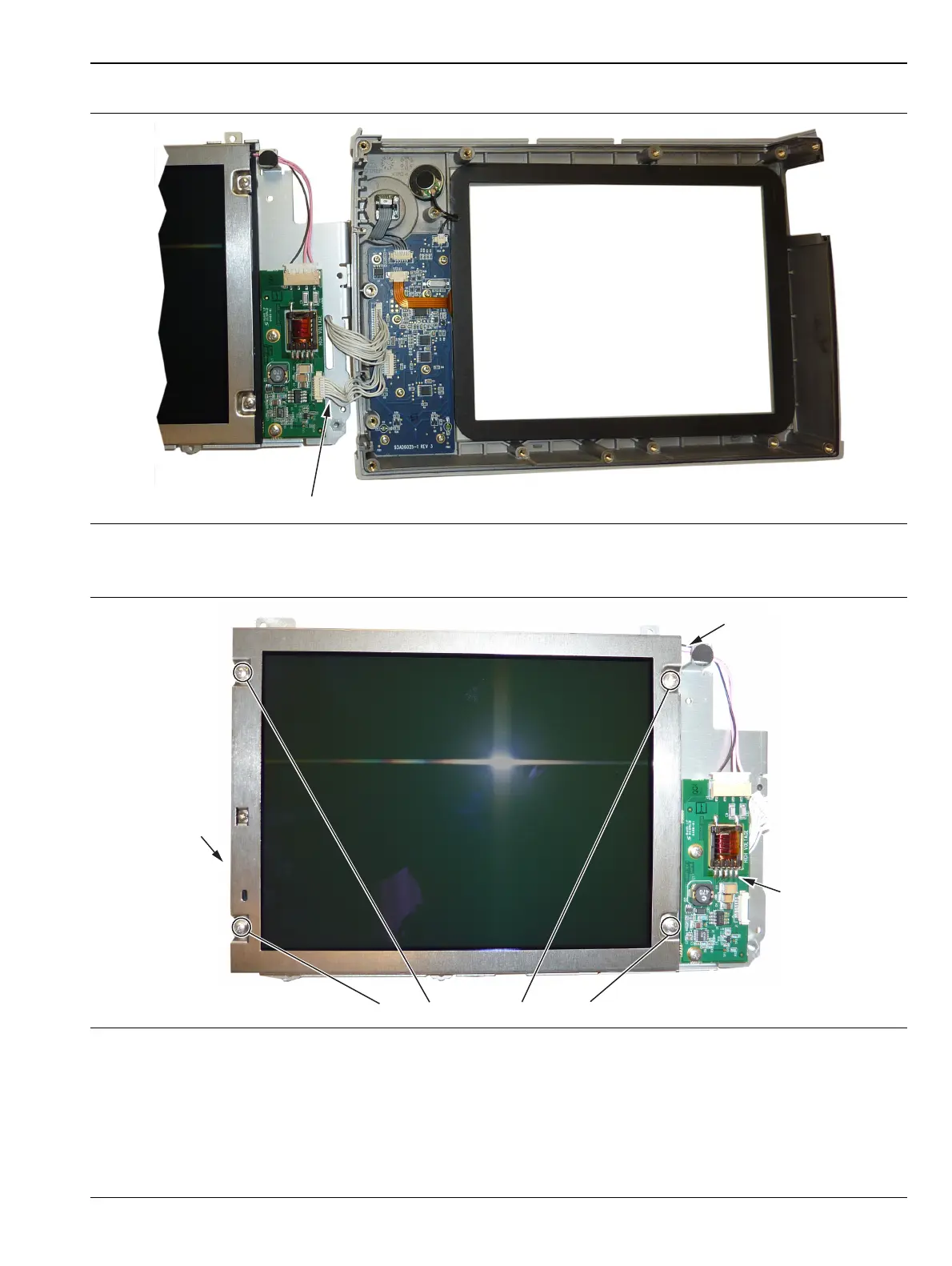

Figure 6-24. Replacing the LCD Assembly
Figure 6-25. Replacing the LCD
Disconnect Cable
LCD Cable to
Motherboard
Remove 4 screws to replace LCD
LCD Backlight
Cable
LCD Backlight
PCB
