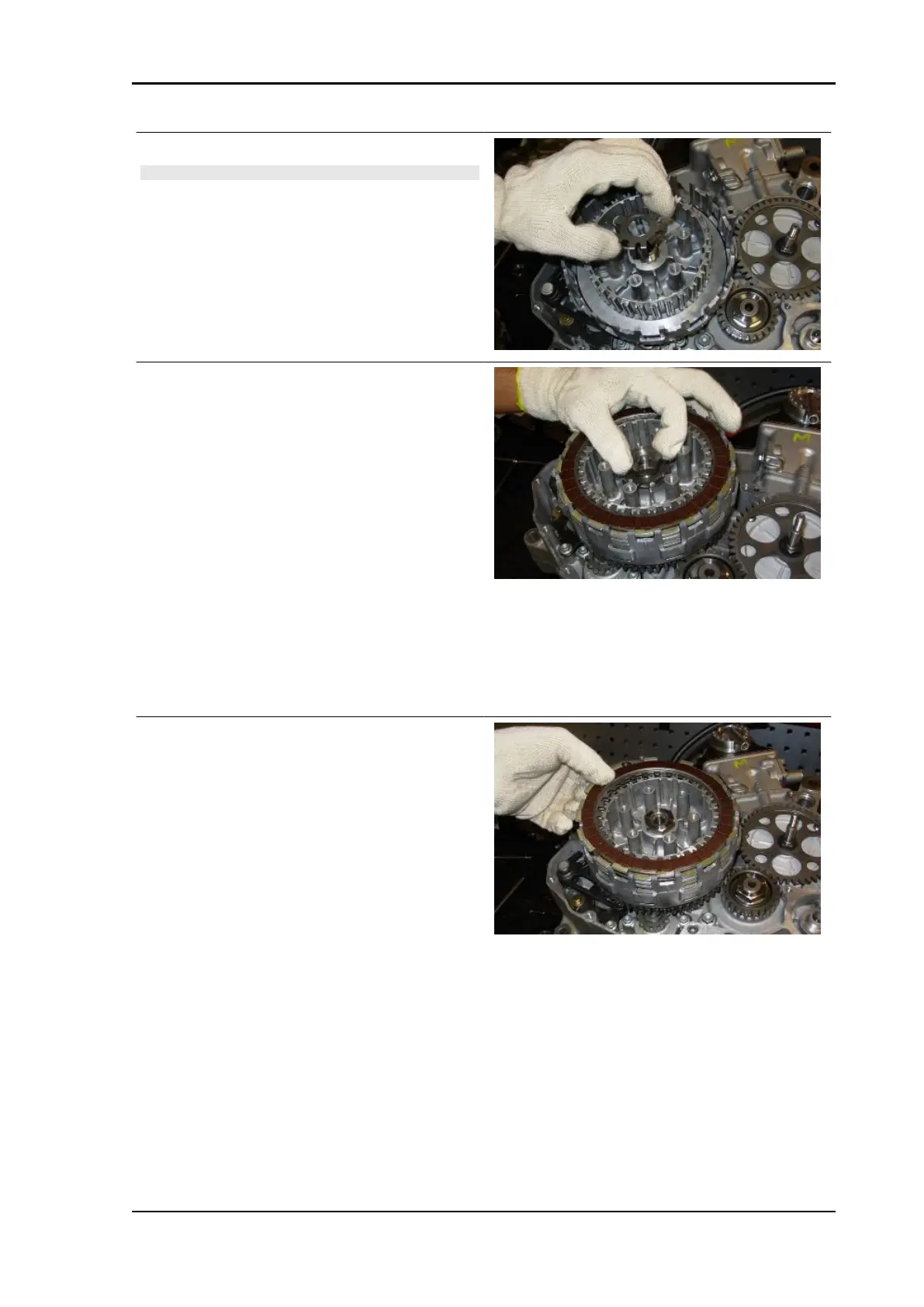

Place the washer/s with the tab/s.
CAUTION
RESTORE THE ORIGINAL NUMBER OF WASHERS AND
OBSERVE THEIR ORIGINAL POSITIONS.
•
Place the clutch hub nut.
•
Using the clutch locking tool, tighten the clutch hub nut to the prescribed tightening torque.
•
Fold the locking washer.
Specific tooling
9100896 Clutch housing locking tool
•
Use gearbox oil to lubricate the driving
discs and the driven discs.
•
Place the first friction disc, then the first
1.5 mm (0.059 in) steel disc. After that,
place a friction disc with the reference
tabs in the same slot as for the first disc
and then place a 2 mm (0.079 in) steel
disc until the penultimate disc that will
be the remaining 1.5 mm (0.059 in)
metal disc. Lastly, place the friction
disc with the reference tab one slot
away with respect to the previous
discs.
MXV 450 Engine
ENG - 101
