APRILIA MXV 450 - Installing the Chain

•
Inlet 34.83 mm (1.37 in)
•
Outlet 24.815 mm (0.97 in)

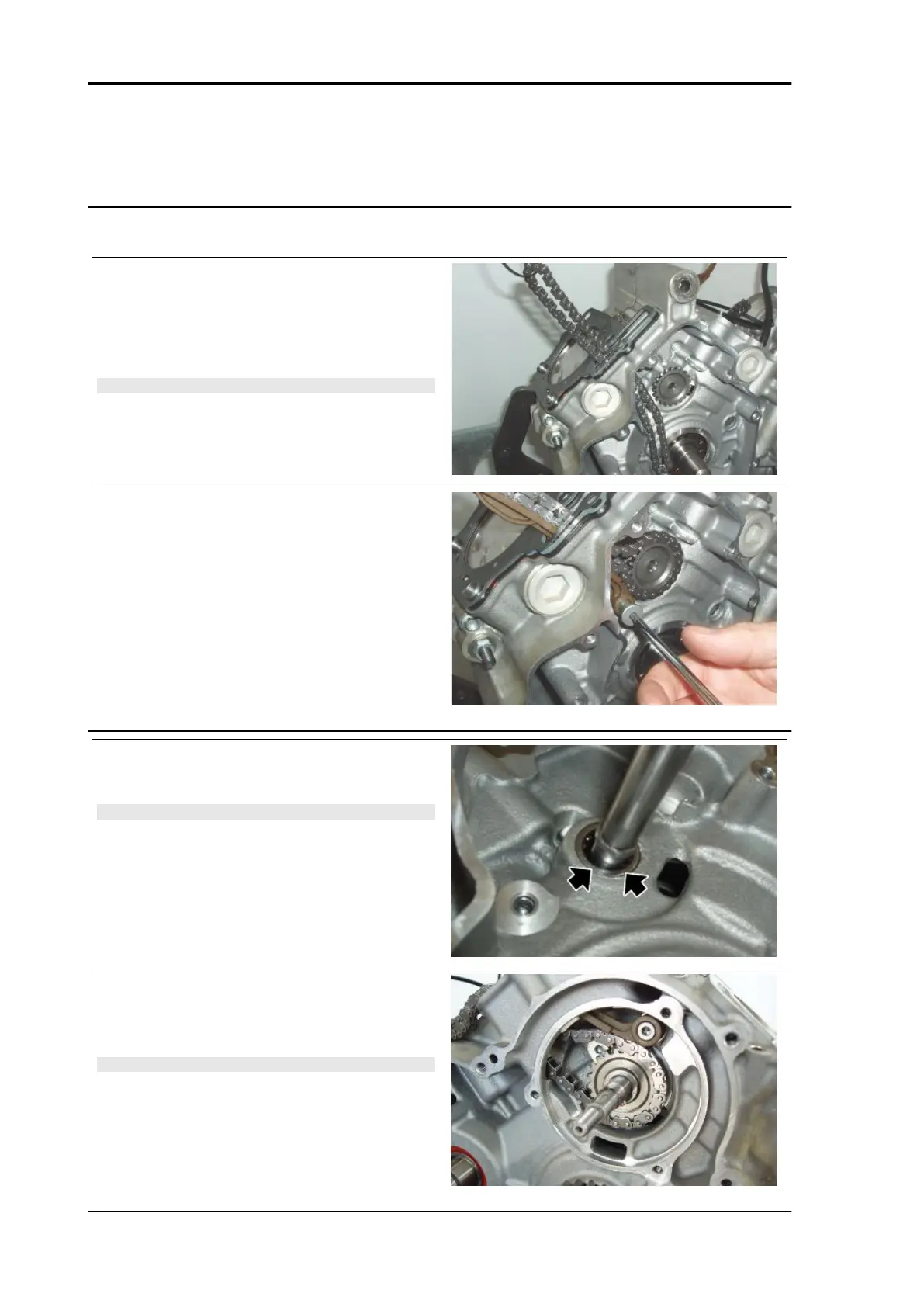

Installing the chain
FRONT
•
Place the cotter.
•
Fit the gear.
•
Fit the chain.
CAUTION
FIT THE CHAIN WITH THE COLOURED SIDE FACING OUT-
WARD.
•
Fit the movable chain guide slider.
•
Tighten the slider screw.
REAR
•
Fit the timing system shaft.
CAUTION
FIT THE TIMING SYSTEM SHAFT WITH BOTH MILLED
SIDES FACING DOWNWARDS.
•
Place the cotter.
•
Fit the gear.
•
Fit the chain.
CAUTION
FIT THE CHAIN WITH THE COLOURED SIDE FACING OUT-
WARD.
Engine MXV 450
ENG - 120
