Overhaul data
Assembly clearances
Crankcase - crankshaft - connecting rod
To choose the appropriate spare parts for the coupling bushings, check the type of original components
and the correct bushing on the table.

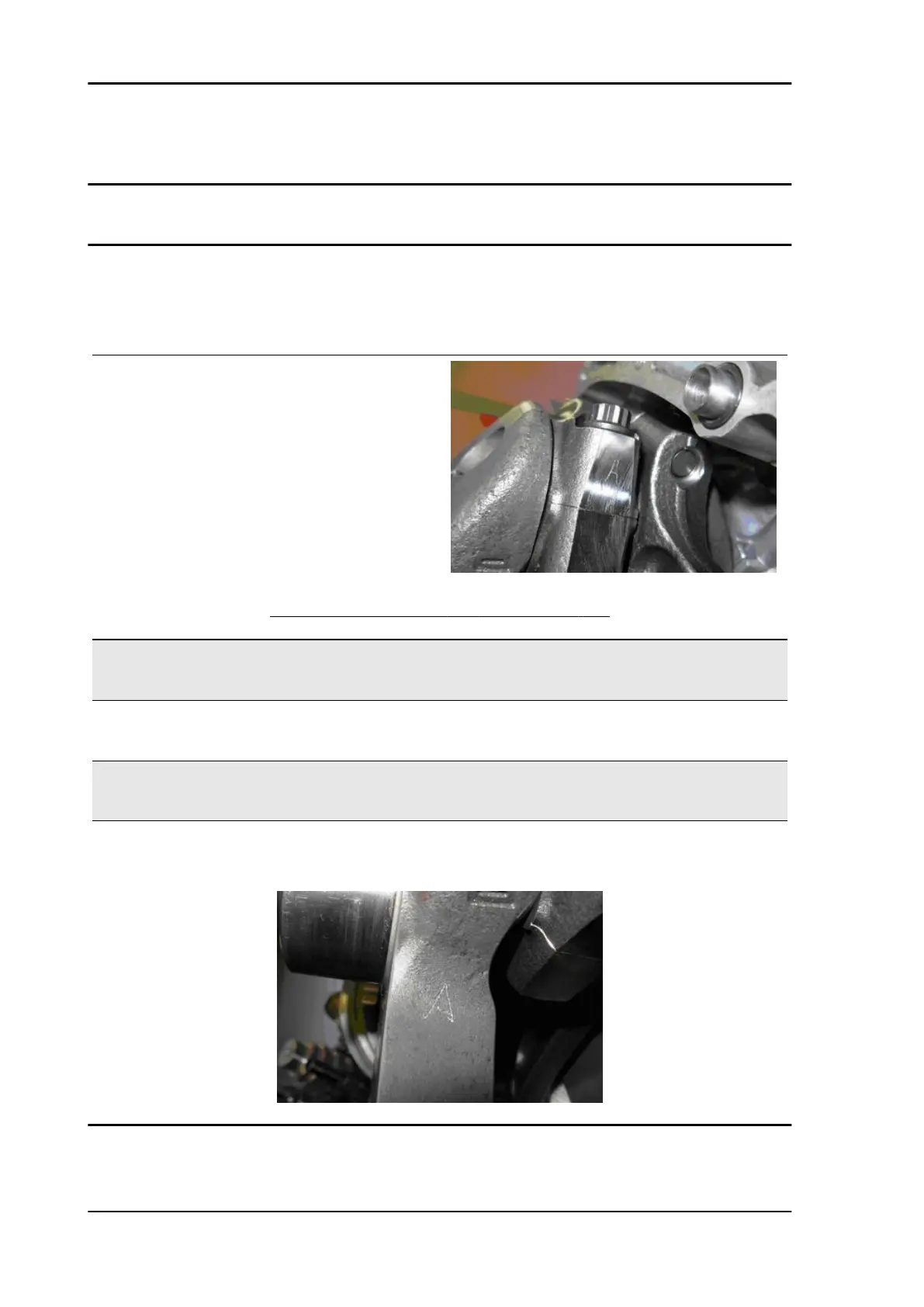

The type of component is engraved with laser pen
on the components themselves.
COUPLING TYPES - SHAFT - CONNECTING ROD
Specification
Desc./Quantity
Shaft - Connecting rod: A - A - BLUE types Shaft- A ø 34.984 mm - 34.991 mm (1.37732 in - 1.37759 in)
Connecting rod - A ø 38.000 mm - 38.012 mm (1.49606 in -
1.49653 in)
Colour: BLUE
Shaft - Connecting rod: A - B - YELLOW types Shaft- A ø 34.984 mm - 34.991 mm (1.37732 in - 1.37791 in)
Connecting rod - B ø 38.013 mm - 38.025 mm (1.49657 in -
1.49704 in)
Colour: YELLOW
Shaft - Connecting rod: B - A - GREEN types Shaft- B ø 34.992 mm - 35.000 mm (1.37763 in - 1.37795 in)
Connecting rod - A ø 38.000 mm - 38.012 mm (1.49606 in -
1.50078 in)
Colour: GREEN
Shaft - Connecting rod: B - B - BLUE types Shaft- B ø 34.992 mm - 35.000 mm (1.37763 in - 1.37795 in)
Connecting rod - B ø 38.013 mm - 38.025 mm (1.49657 in -
1.49704 in)
Colour: BLUE
Characteristics MXV 450
CHAR - 16
