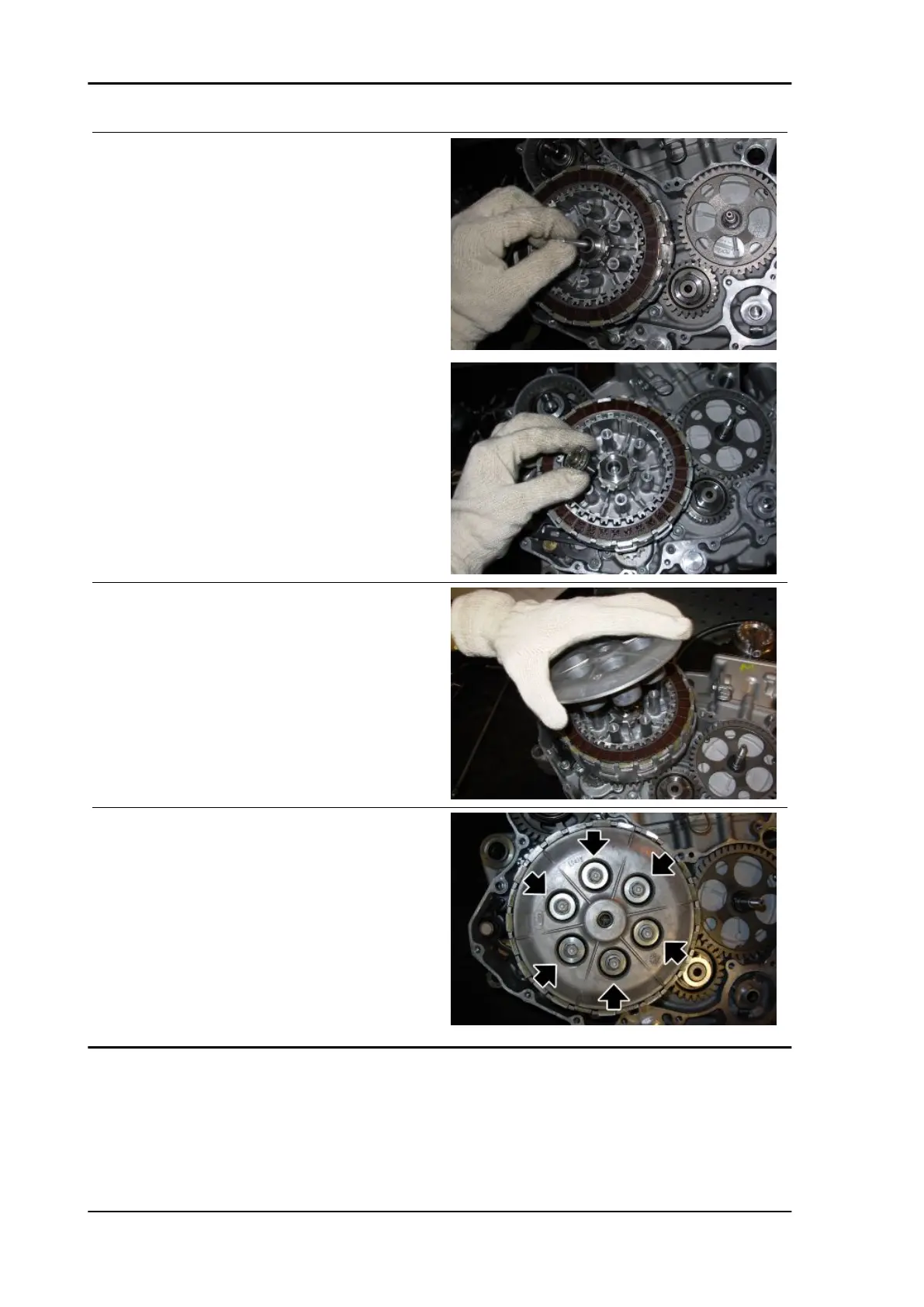

Place the control rod together with the
thrust bearing and the shim washer.
•
Place the thrust plate.
•
Fit the clutch springs.
•
Fit the screw washers.
•
Tighten the six screws operating in
stages and diagonally.
Installing the clutch cover
In case of replacement, fit the bearing flush with the machined surface and fit the bushing with the two
oil seals (water and oil) of the water pump using the specific punches.
The drainage hole is turned either -7.5°or +7.5° with respect to an imaginary line drawn between the
bushing centre and the centre of the lower hole used for fixing the water pump cover. See figure.
Engine MXV 450
ENG - 102
