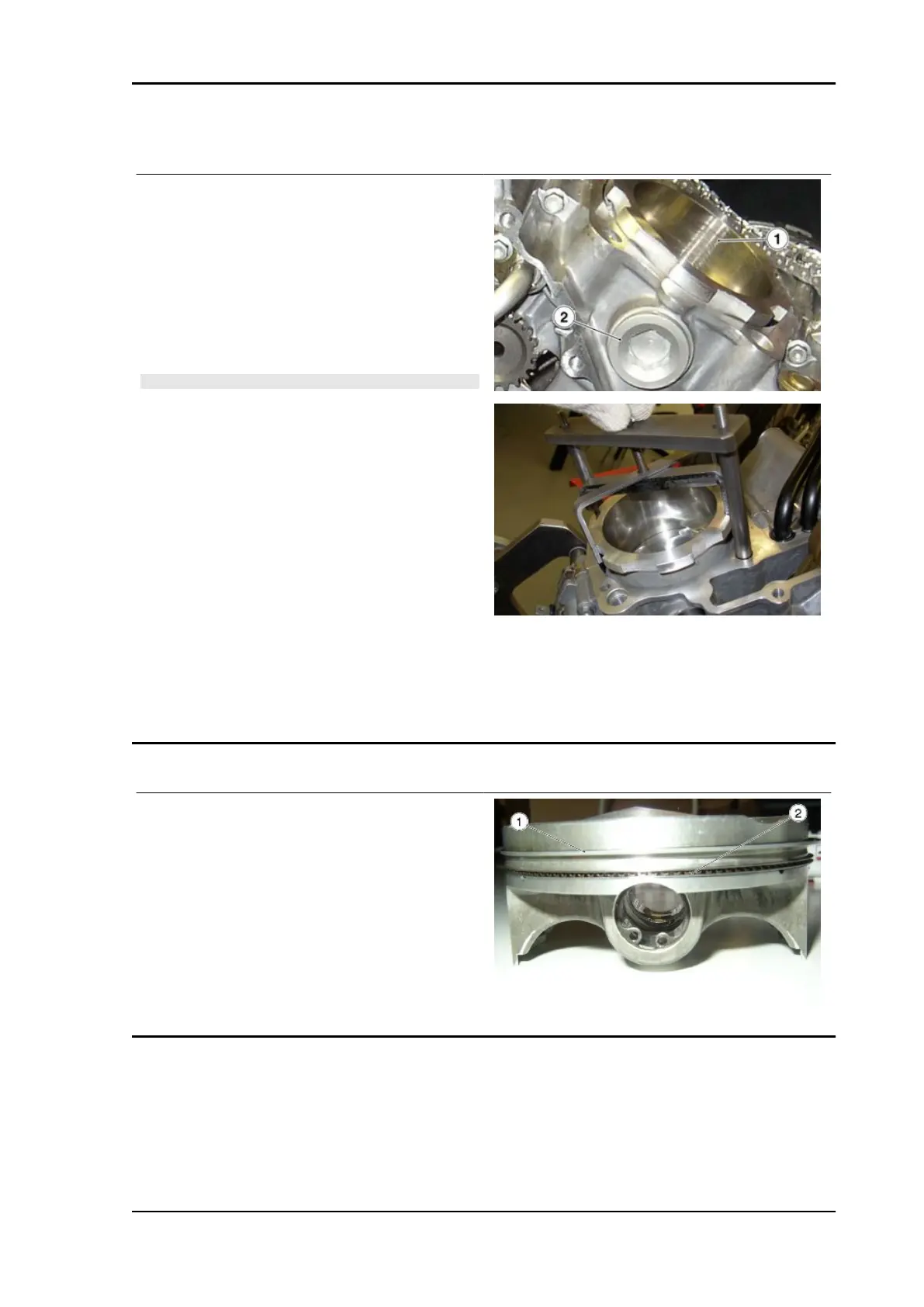

Removing the cylinder
•
It is necessary to remove the head be-
fore removing the cylinder
•
Undo and remove the inspection screw
(2); collect the O-ring gasket (mind the
coolant spills).
•
Use the special tool to remove the liner
(1) and collect the O-ring gasket.
CAUTION
BEFORE TAKING OUT THE PIN LOCKING RING, COVER
THE CRANKCASE OPENING WITH A CLEAN CLOTH SO
THAT THE RING DOES NOT FALL INTO THE CRANKCASE.
Specific tooling
9100897 Cylinder liner extractor
•
Take out the pin locking ring.
See also
Removing the
cylinder head
Disassembling the piston
•
Use a piston pin extractor to remove
the pin.
•
Remove the piston.
•
Remove the piston ring (1) and the oil
scraper ring (2).
Specific tooling
9100943 Piston pin extractor
Checking the cylinder
If cylinder liners are replaced, check that the new component is marked (punched) close to the date-
stamp.
Characteristic
Cylinder liners inside diameter
MXV 450 Engine
ENG - 125
