MAIN BEARINGS FITTING

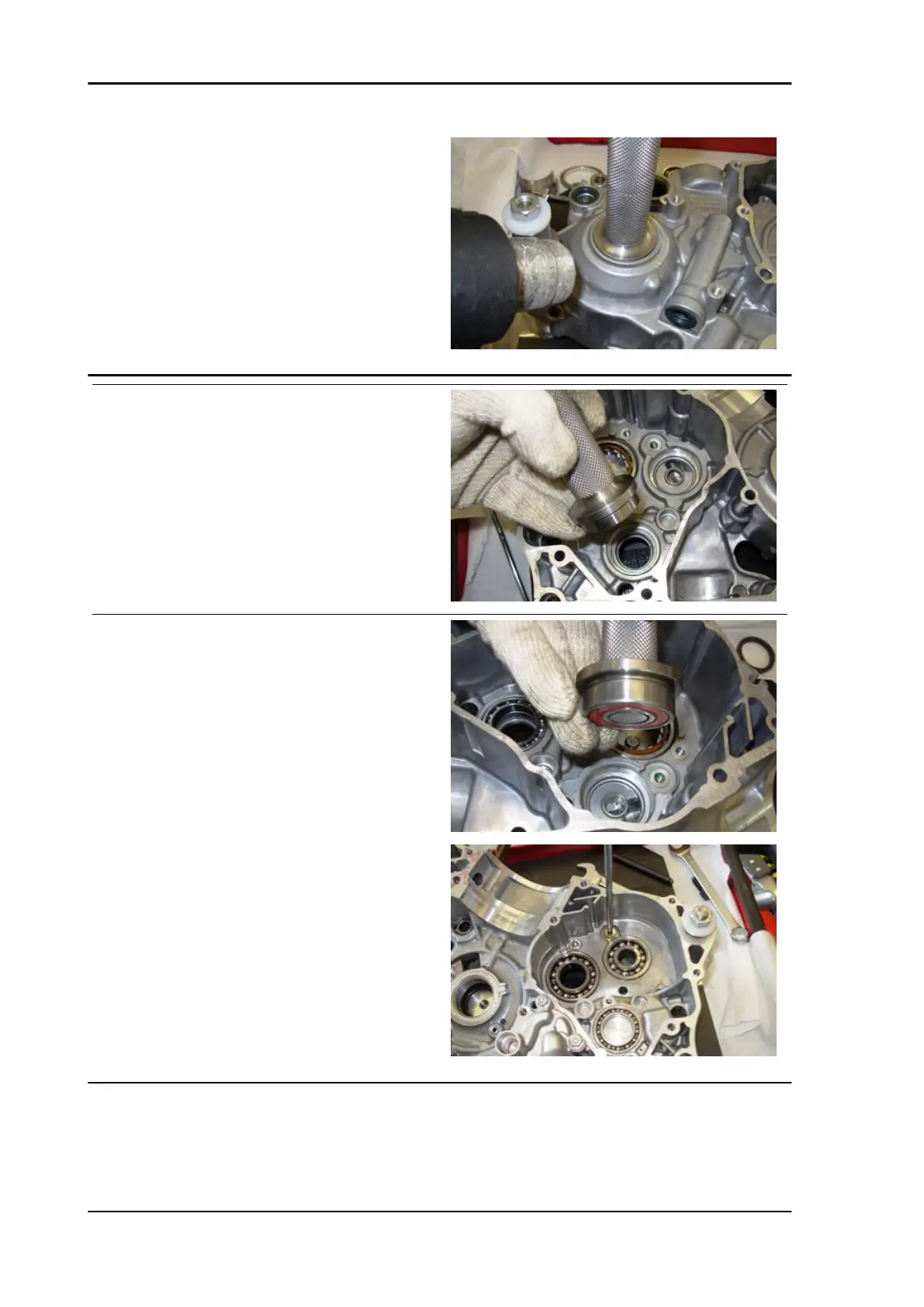

BEARING REFITTING - DESMODROMIC DRUM
SUPPORT
•
Refit the bearing using the specific
punch.
Specific tooling
9100892 Left crankcase desmodromic + wheel
hub
GEAR PRIMARY SHAFT BEARING REFITTING
•
Refit the bearing using the specific
punch.
•
Refit the grub screw with the corre-
sponding plate.
Specific tooling
9100886 Secondary shaft/right side - Main
shaft/left side
Checking the connecting rod
Characteristic
Rod small end inside diameter: maximum allowed
Engine MXV 450
ENG - 138
