APRILIA MXV 450 - Circuit Diagram

Circuit diagram

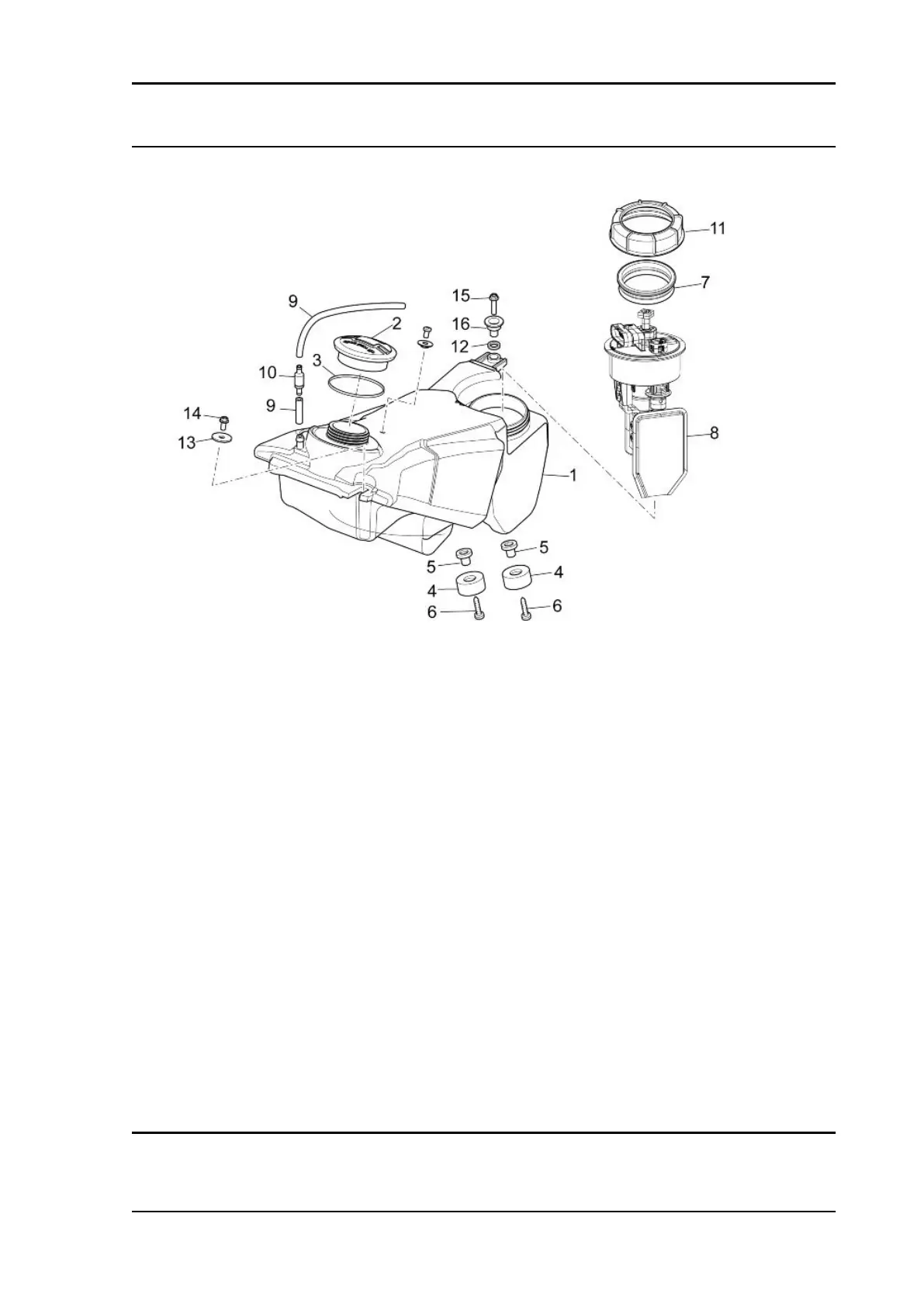

Key:
1. Fuel tank
2. Cap
3. Gasket
4. Rubber ring
5. T-shaped bushing
6. Screw
7. Gasket
8. Complete fuel pump unit
9. Pipe
10.Tank breather valve
11.Fuel pump fixing ring nut
12.Rubber washer
13.Plain iron washer
14.TE flanged screw
15.TE flanged screw
16.Bushing
MXV 450 Power supply
P SUPP - 155
