APRILIA MXV 450 - Swinging Arm

Swinging arm
Removing
•
Place the service stand under the engine block.
•
Using a belt secure the vehicle front part to the workbench.
•
Remove the rear wheel.
•

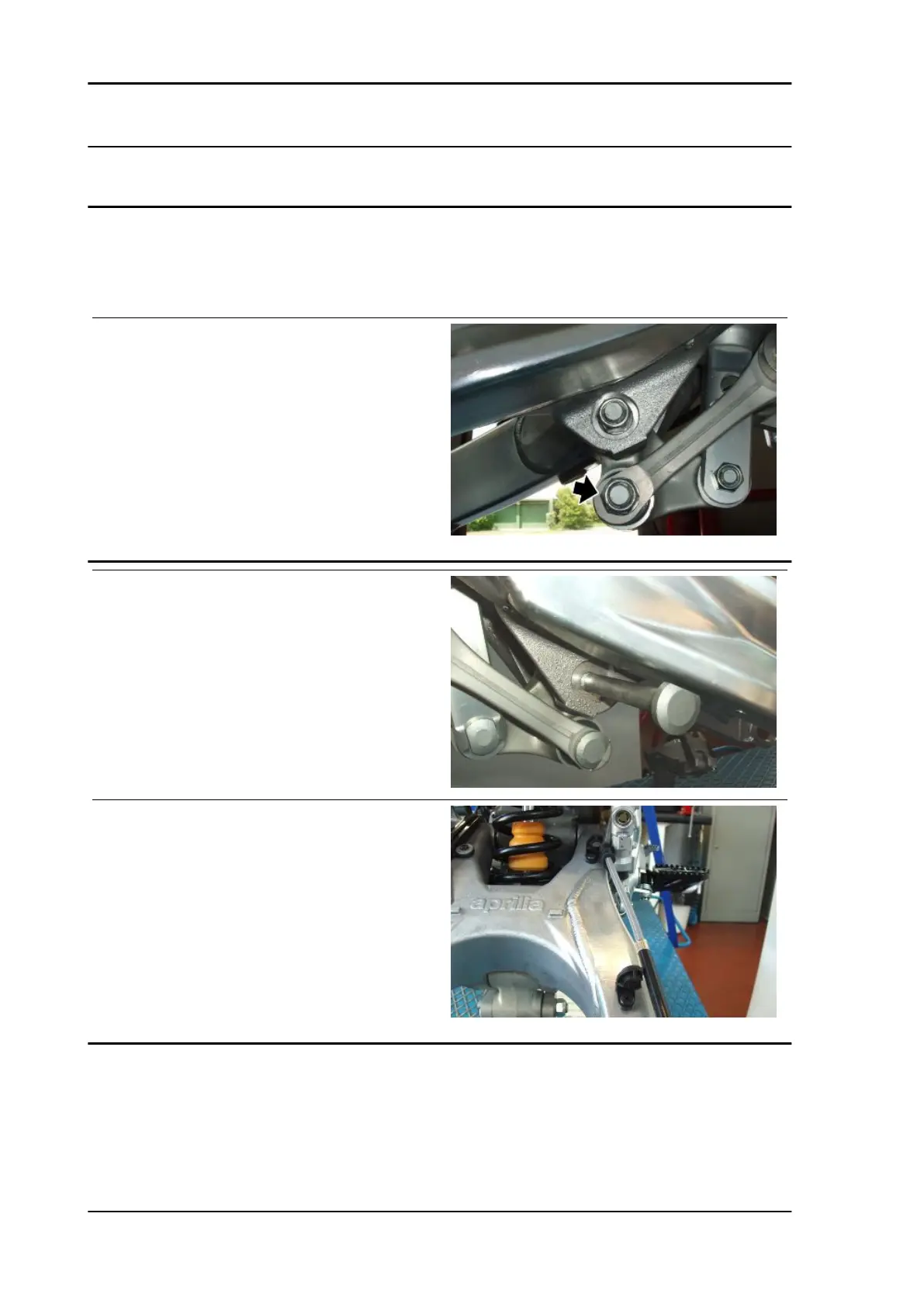

Unscrew and remove the nut of the pin
fixing the swingarm / linkage system
and collect the washer.
•
Slide off the pin fixing the swingarm /
linkage system.
•
Slide the brake pipe off the two hose
guides.
•
Remove the rear brake calliper from
the swingarm.
Chassis MXV 450
CHAS - 192
