the specified values; replace the valve
if necessary.
Characteristic
Intake valve thickness, sealing side - minimum
limit
2.2 mm (0.0866 in)
Exhaust valve thickness, sealing side - mini-
mum limit
2.5 mm (0.098 in)
•
Check that the valve stem eccentricity
is within the specified values; replace
the valve if necessary.
•

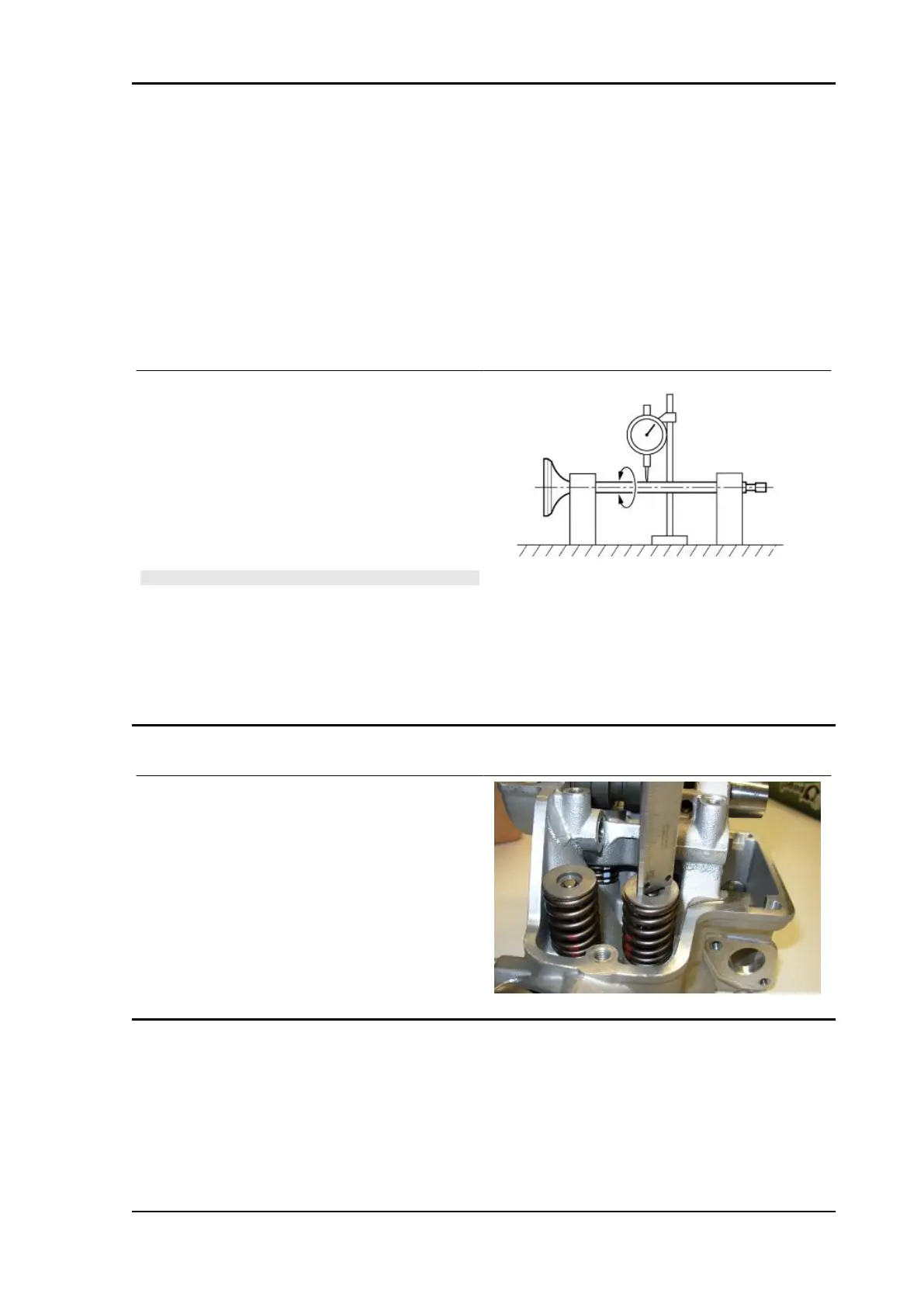

Fasten the valve in horizontal position,
as shown in the figure, and turn it to
check the eccentricity with a dial
gauge; if necessary, replace the part.
NOTE
IF THE VALVE IS REMOVED OR REPLACED, ALWAYS RE-
PLACE THE VALVE STEM OIL SEAL AS WELL.
Characteristic
Stem maximum eccentricity
0.01 mm (0.00039 in)
Cotter pins and plates deformation check
Check distance between valve stem and cap
The distance should not exceed the maximum val-
ue of 1.9 mm (0.075 in).
otherwise, replace cap and cotters
