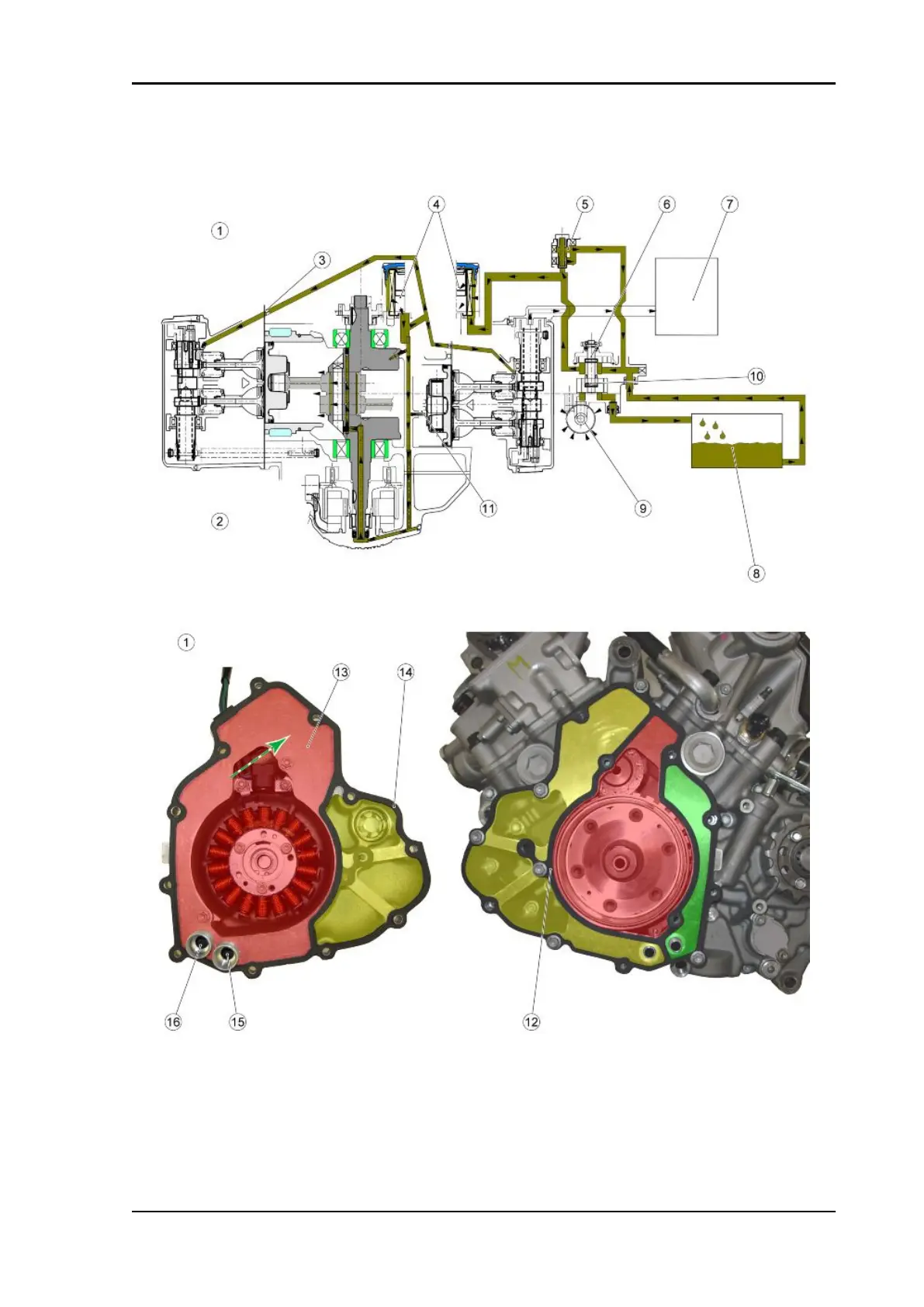

Conceptual diagrams
Key:
1. Clutch-side
2. Flywheel-side
3. Calibrated nozzle
4. Cartridge filter
MXV 450 Engine
ENG - 143
