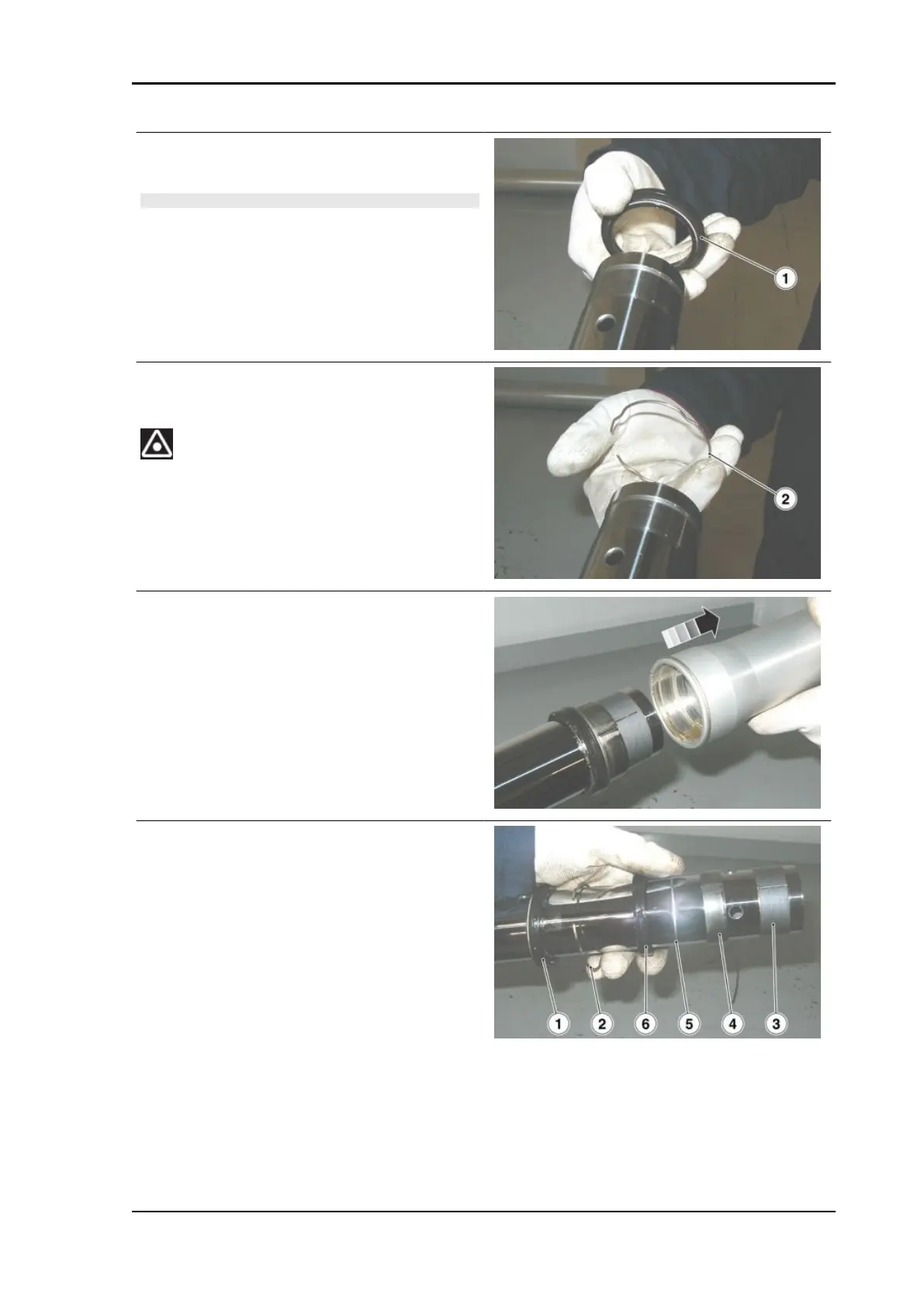

Slide off the dust scraper (1) from the
sleeve using a screwdriver as a lever.
CAUTION
BE CAREFUL NOT TO DAMAGE THE SLEEVE RIM AND
THE DUST SCRAPER (1).
•
Slide off the retainer ring (2) from inside
the sleeve using a thin screwdriver.
BE CAREFUL NOT TO DAMAGE THE SLEEVE RIM.
•
Firmly slide off the sleeve from the
stem.
•
On the fork stem there are:
- bushing (3)
- guide ring (4)
- shim washer (5)
- oil seal (6)
- retainer ring (2)
- dust scraper (1)
