- retainer ring (2);
- oil seal (6);
- shim washer (5);
- guide ring (4);
- bushing (3);
CAUTION
TO FIT THE OIL SEAL, TAPE THE BUSHING (3) HOUSING SLOT SO THAT THE OIL SEAL LIP IS
NOT DAMAGED.
•
Place shoes made of soft material (alu-
minium) before positioning the stem in
a vice.
•

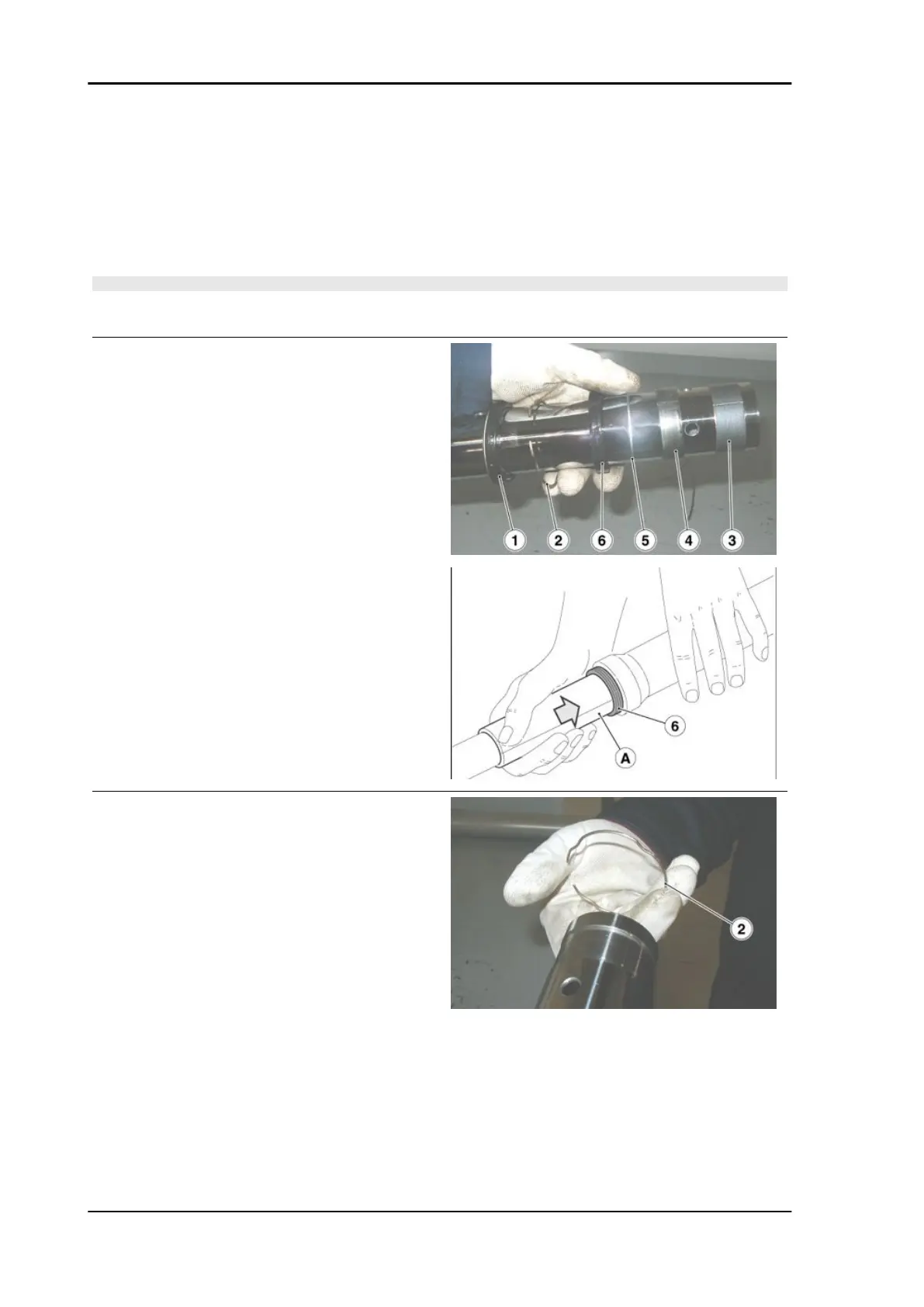

Place the bushing (3) in its seat on the
stem.
•
Insert the sleeve on the stem.
•
Push the guide ring (4) and the shim
washer (5) on the sleeve until they
stop.
•
Use the proper inserting tool (A) to
push the oil seal (6) in the sleeve until
it stops.
•
Fit the retainer ring (2).
