APRILIA MXV 450 - Page 82

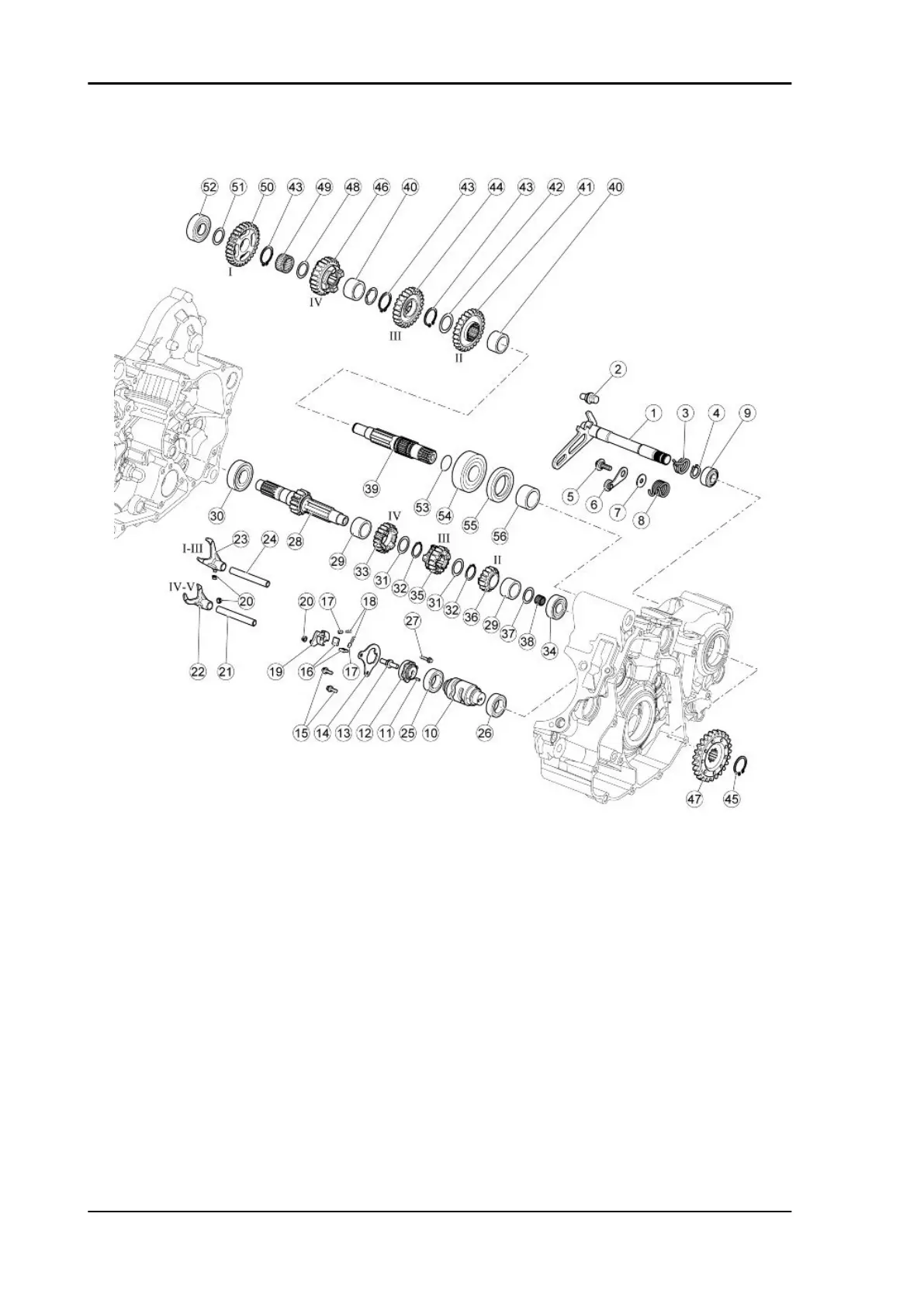

Diagram
Key:
1. Shaft selector+ratchet gear
2. Selector lock
3. Spring
4. Seeger ring
5. TE flanged screw
6. Complete index lever
7. Washer
8. Spring
9. Oil seal
10.Complete desmodromic
11.Roller
12.Gear selector drum
Engine MXV 450
