APRILIA MXV 450 - Page 85

•

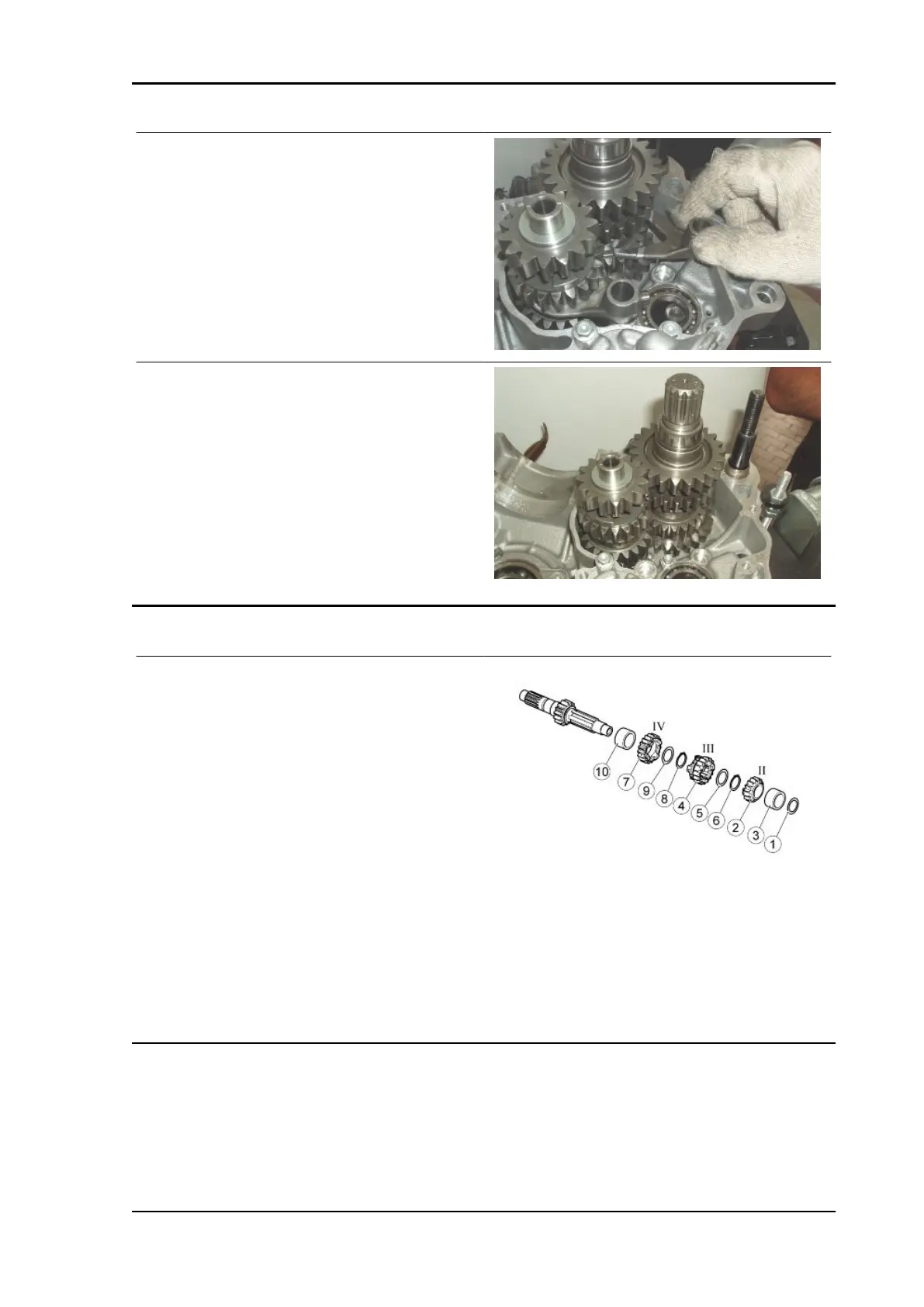

Slide off the forks.
•
Take out the main and the secondary
shafts at the same time.
Removing the primary shaft
•
Slide off the shim washer (1) from the
generator side.
•
Slide off the bushing (3).
•
Slide off the gear of the 2nd gear (2).
•
Remove the Seeger ring (6).
•
Slide off the special washer (5).
•
Slide off the gear of the 3rd gear (4).
•
Remove the Seeger ring (8).
•
Slide off the flat washer (9).
•
Slide off the gear of the 4th gear (7).
•
Slide off the bushing (10).
To refit, carry out the removal operations but in re-
verse order.
