All Surface Loader
16. Maintenance
16-4

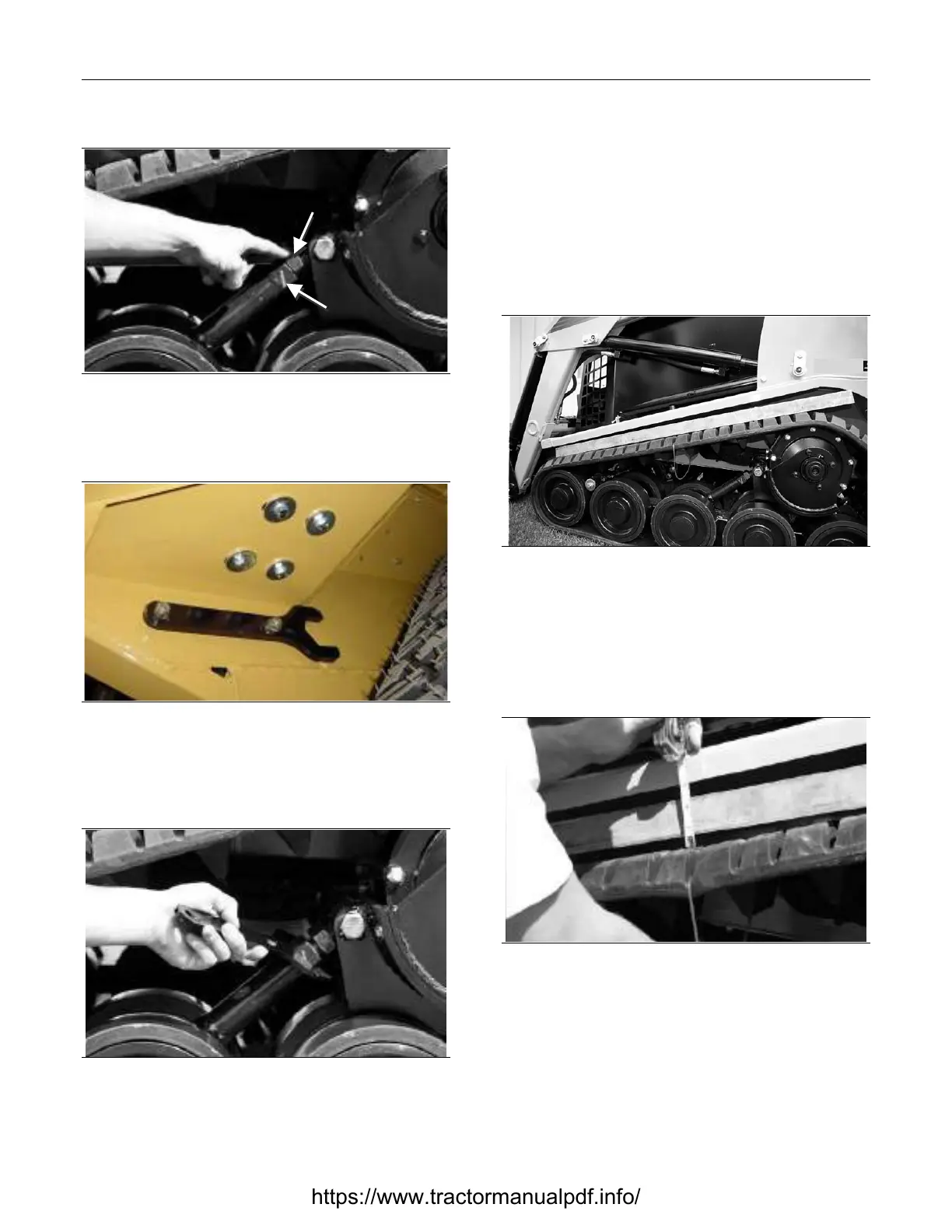

Track Tension Adjustment Procedures
Figure 16-8 16-005
1. Locate the jam nut on the track tensioner and
clean the threads thoroughly before proceeding.
Figure 16-9 16-006
2. Loosen the jam nut. You can use the wrench
supplied with the machine, but a standard
wrench is preferred for shop use.
Figure 16-10 16-007
3. After loosening the jam nut, turn the track ten-
sioner until the track tension is within specifica-
tions.
4. Once proper tension is achieved, retighten the
jam nut
Checking for Proper Track Adjustment
1. Drive the machine forward five feet.
Figure 16-11 16-008
2. Lay a straightedge along the top of the track be-
tween the sprocket and the front idler wheel.
3. Using a rope or wire, put 50 pounds of down
force on the track at the midpoint of the straight-
edge.
Figure 16-12 16-009
4. Using a ruler, measure the distance between the
straightedge and track. The track should not de-
flect more than 0.75 inch between the top of the
track and the straightedge.
5. If the track deflects more than 0.75 inch, tighten
the track.
Jam
Nut
Track
Tensioner
