ASV RC30 User Manual

Rubber Track Loader
10. Transmission and Drive Disassembly and Assembly
10-3

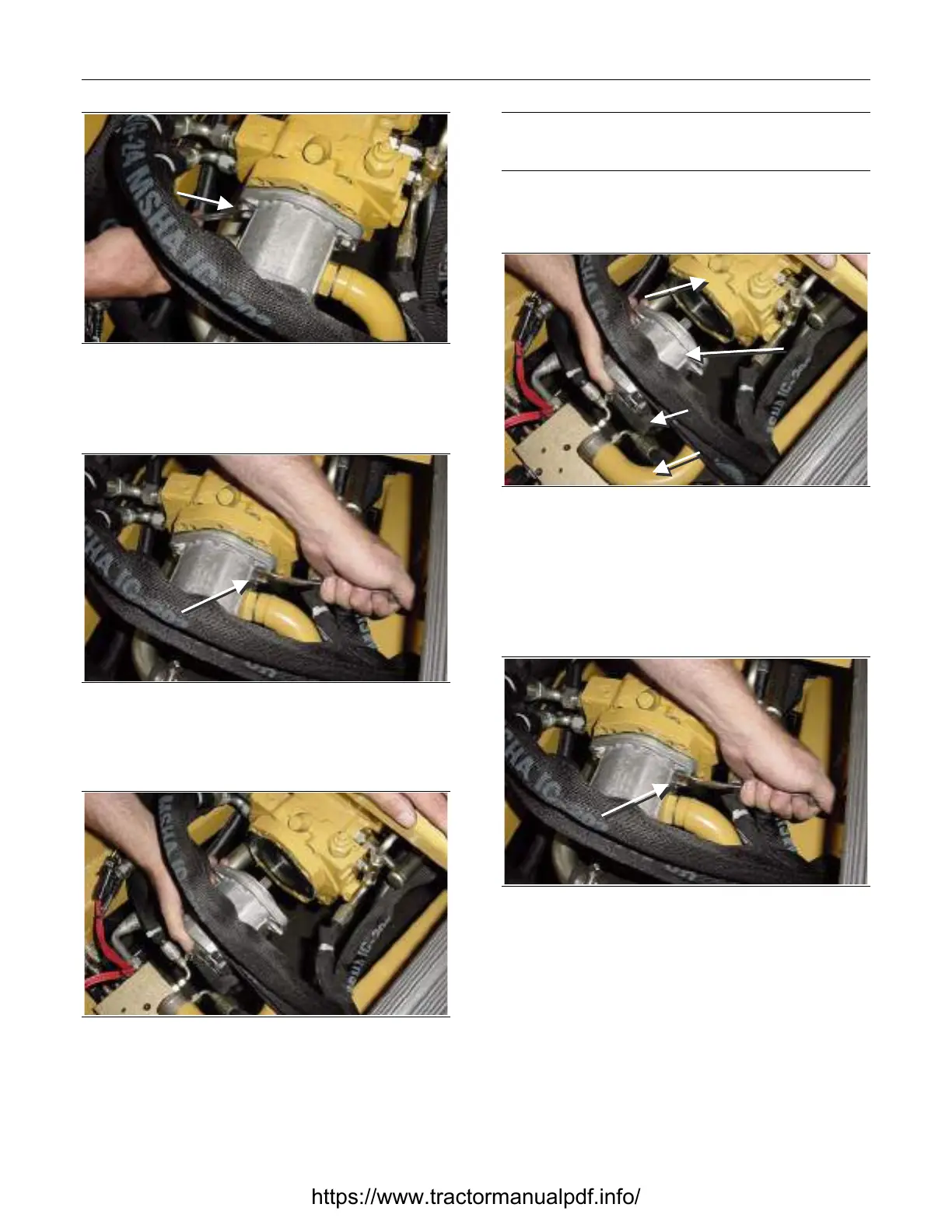

Figure 10-4 10-004
10. Remove the bolt on the left side of the auxiliary
gear pump.
Figure 10-5 10-005
11. Remove the bolt on the right side of the auxiliary
gear pump.
Figure 10-6 10-006
12. Remove the auxiliary gear pump by sliding the
lower manifold tube out of the transmission
hose.
Note: It is not necessary to separate the lower manifold
tube from the gear pump: this can be done after the pump
is removed, if necessary.
Auxiliary Gear Pump Installation
Figure 10-7 10-006
1. With the lower manifold tube attached to the
auxiliary gear pump, align the mounting bolt
holes in the auxiliary gear pump with the holes in
the tandem pump. It will be necessary to slide
the manifold tube into the transmission hose to
properly position the auxiliary gear pump.
Figure 10-8 10-005
2. Install the bolt on the right side of the auxiliary
gear pump.
Remove
Bolt
Remove
Bolt
Install
Bolt
Lower
Manifold
Tube
Trans-
mission
Hose
A
uxiliary
Gear
Pump
Tandem
Pump
