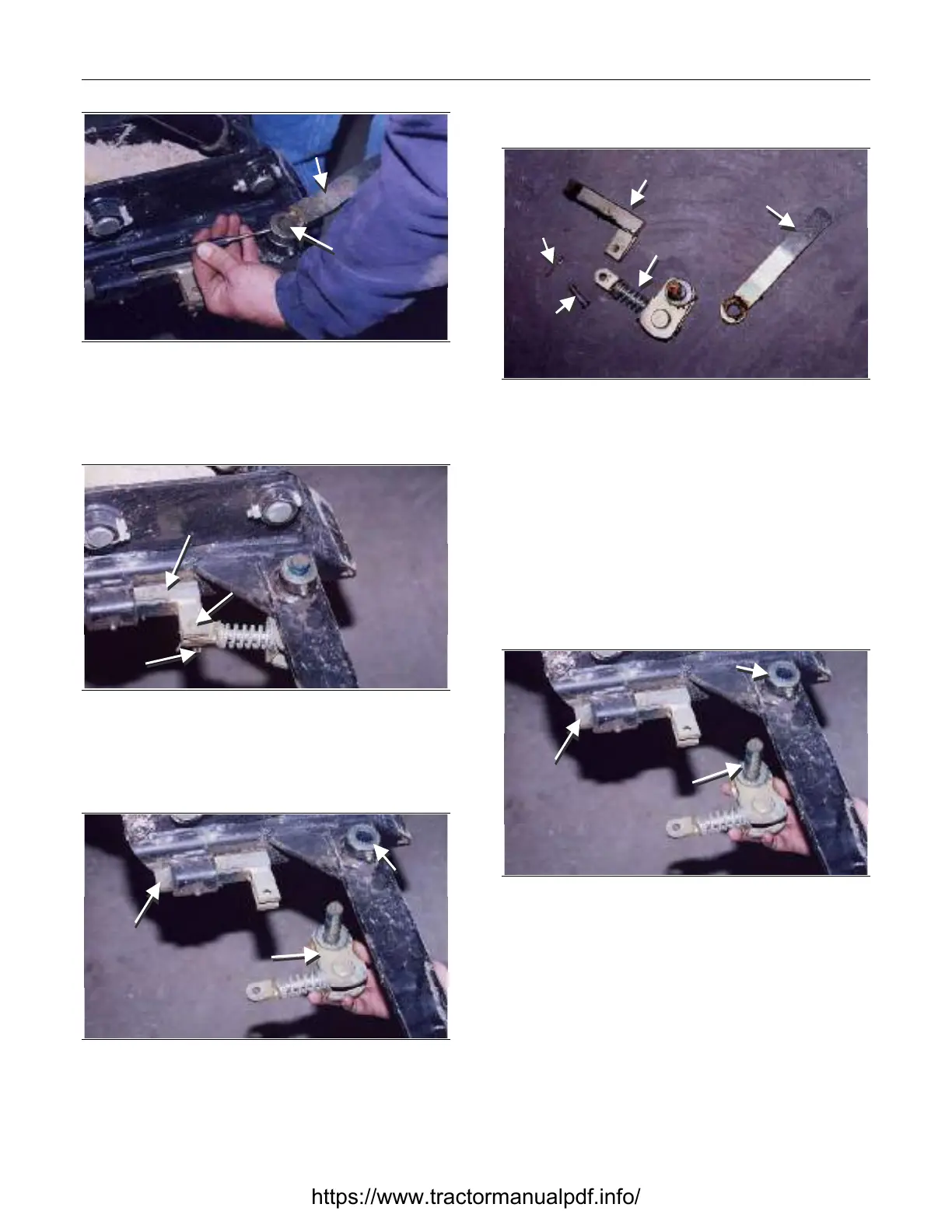

Rubber Track Loader
14. Quick Attach Disassembly and Assembly
14-2
Handle
Pivot Pin
Shaft
Figure 14-1 14-001
3. With a steel punch, remove the spring pin that
fastens the handle to the pivot pin shaft. Slide
the handle off the shaft.
Clevis
Pin
Cotter
Pin
Latch
Pin
Figure 14-2 14-002
4. Remove the cotter pin. Pull out the clevis pin
that fastens the latch pin to the spring mecha-
nism.
Spring
Mechanism
Grease
Fitting
Housing
Latch
Pin
Figure 14-3 14-003
5. Remove the spring mechanism from the grease
fitting housing. Remove the latch pin from the
quick attach bracket
Latch Pin Assembly Installation
Spring
Mechanism
Handle
Latch Pin
Clevis
Pin
Cotter Pin
Figure 14-4 14-004
1. The quick attach parts are individually replace-
able.
2. With no work tool attached and suitable blocks
in place, tilt the quick attach assembly forward
and lower the lift arms until the quick attach as-
sembly rests securely on the blocks about 6
inches off the ground.
3. Turn the engine start switch to the OFF position.
Pivot Pin
Shaft
Grease
Fitting
Housing
Latch
Pin
Figure 14-5 14-003
4. Slide the latch pin into the quick attach bracket
and insert the pivot pin shaft in the grease fitting
housing.
