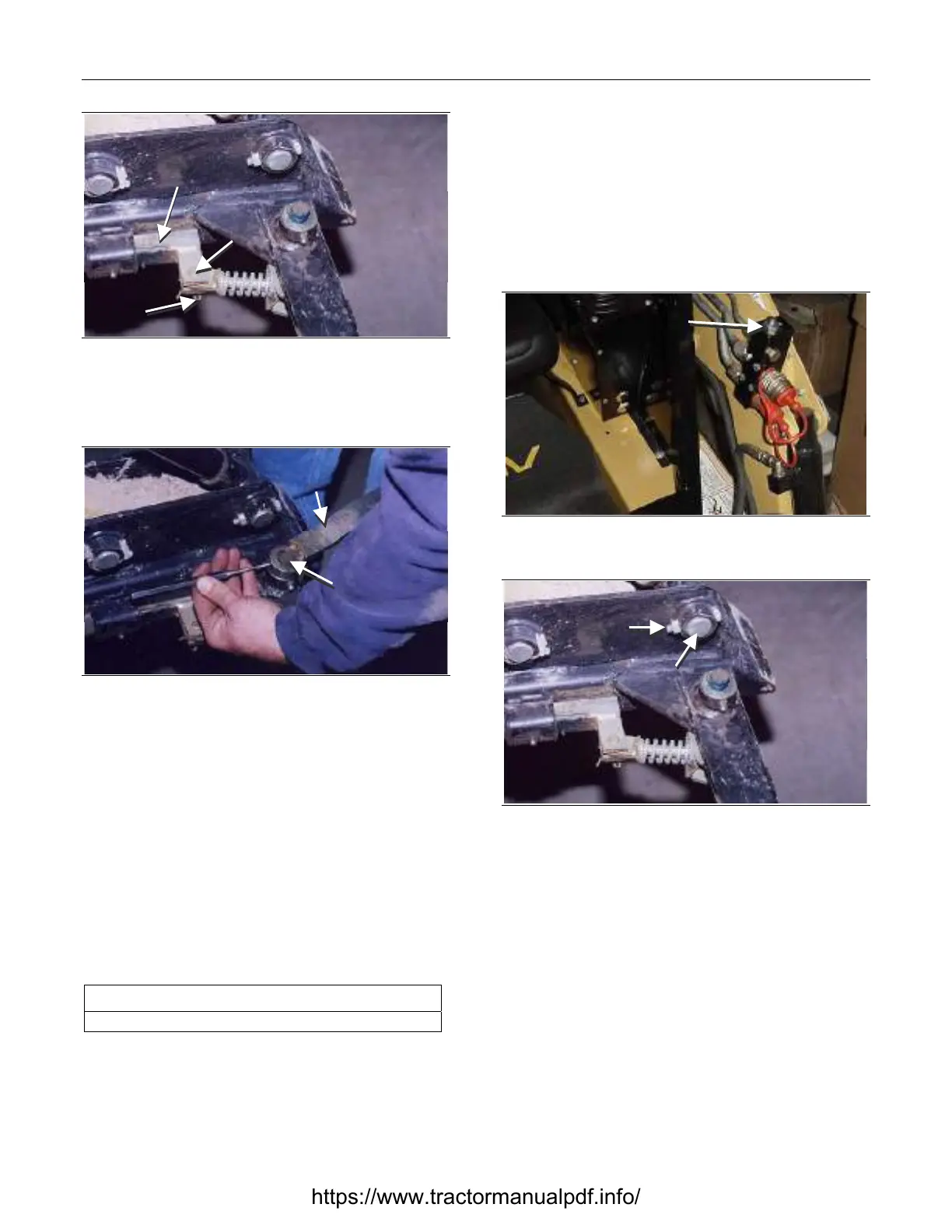

Rubber Track Loader
14. Quick Attach Disassembly and Assembly
14-3
Clevis
Pin
Cotter
Pin
Latch
Pin
Figure 14-6 14-002
5. Insert the clevis pin that fastens the latch pin to
the spring mechanism. Install the cotter pin.
Handle
Pivot Pin
Shaft
Figure 14-7 14-001
6. Slide the handle onto the pivot pin shaft. Insert
the spring pin that fastens the handle to the pivot
pin shaft.
Quick Attach Assembly Re-
moval and Installation
The tools required for quick attach assembly re-
moval and installation are listed in Table 14-2. Use
manufacturer-recommended tools whenever possi-
ble.
Table 14-2
Required Tools
Combination Wrench
Quick Attach Assembly Removal
1. With no work tool attached and suitable blocks
in place, tilt the quick attach assembly forward
and lower the lift arms until the quick attach as-
sembly rests securely on the blocks about 6
inches off the ground.
2. Turn the engine start switch to the OFF position.
Figure 14-8 14-005
Remove
Bolt
Remove
Pin
Figure 14-9 14-002
3. Remove the bolt and push out the pin that se-
cures each end of the quick attach assembly to
the tilt cylinders.
Low Flow
Relief Valve
