Rubber Track Loader
10. Transmission and Drive Disassembly and Assembly
10-6

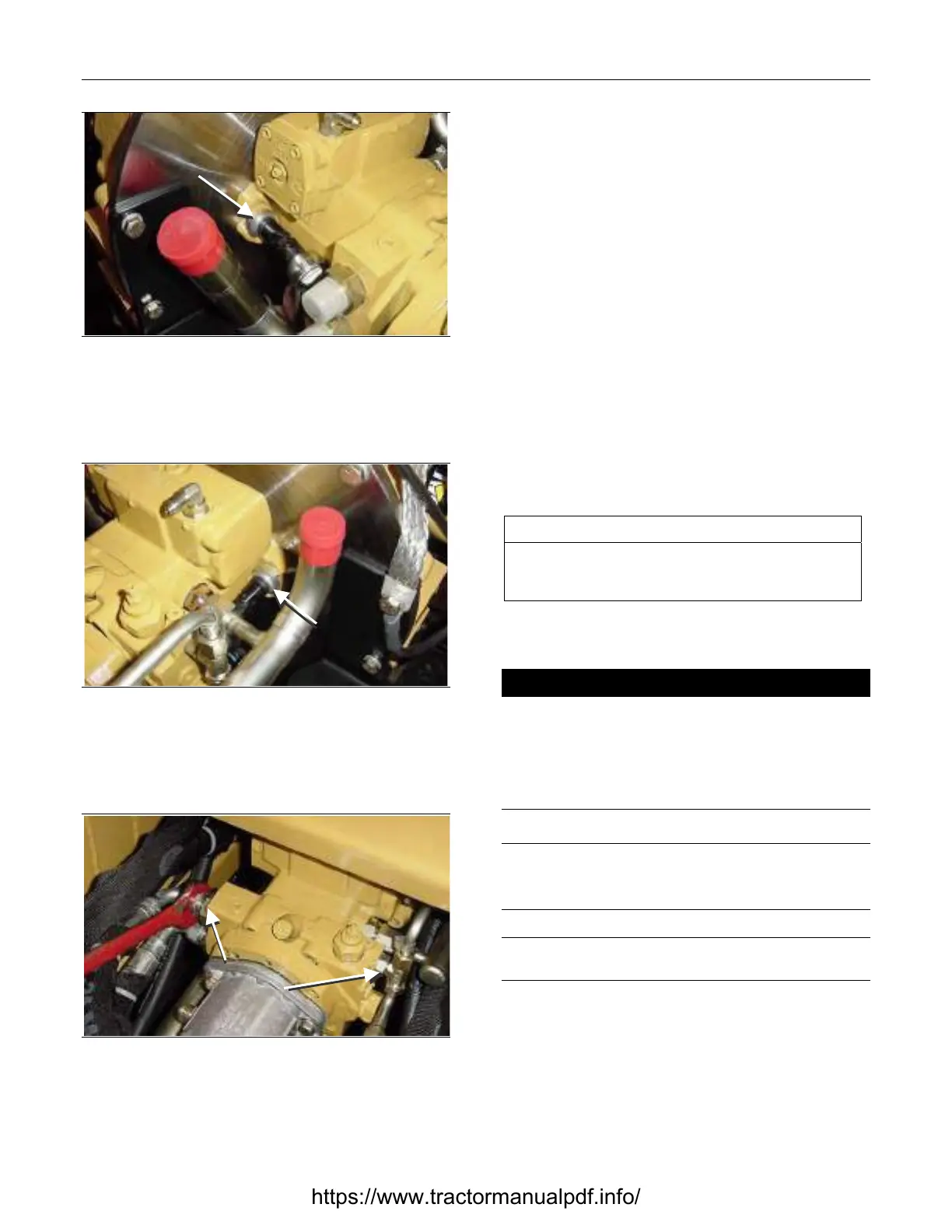

Figure 10-16 10-009
2. Install the mounting bolt (with spring lock washer
and flat washer) on the left-hand side of the tan-
dem pump.
Figure 10-17 10-008
3. Install the mounting bolt (with spring lock washer
and flat washer) on the right-hand side of the
tandem pump.
Figure 10-18 10-007
4. Install the hoses and tubes on the tandem
pump.
5. Install the auxiliary gear pump. Refer to Chapter
10. Auxiliary Gear Pump Installation.
6. Install the fuel tank. Refer to Chapter 6. Fuel
Tank Installation.
7. Install the seat. Refer to Chapter 6. Seat
Installation.
8. Add fuel and manufacturer-approved hydraulic
fluid.
Pump Drive Coupler Removal
and Installation
The tools required for pump drive coupler removal
and installation are listed in Table 10-3. Use manu-
facturer-recommended tools whenever possible.
Table 10-3
Required Tools
Screwdriver
Combination Wrench
Socket Wrench
Pump Drive Coupler Removal
! WARNING !
Hot oil can cause personal injury. Lower all attach-
ments and make sure the oil is cool before removing
any components or lines.
Remove the oil filler cap only when the engine is
stopped and the filler cap is cool enough to touch with
your hands.
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. Lower the lift arms to the ground.
2. Turn the engine start switch to the OFF position.
3. Relieve hydraulic pressure from the auxiliary
circuit.
Install
Bolt
Install
Bolt
Install
Hoses and
Tubes
