Rubber Track Loader
11. Engine Components Disassembly and Assembly
11-4

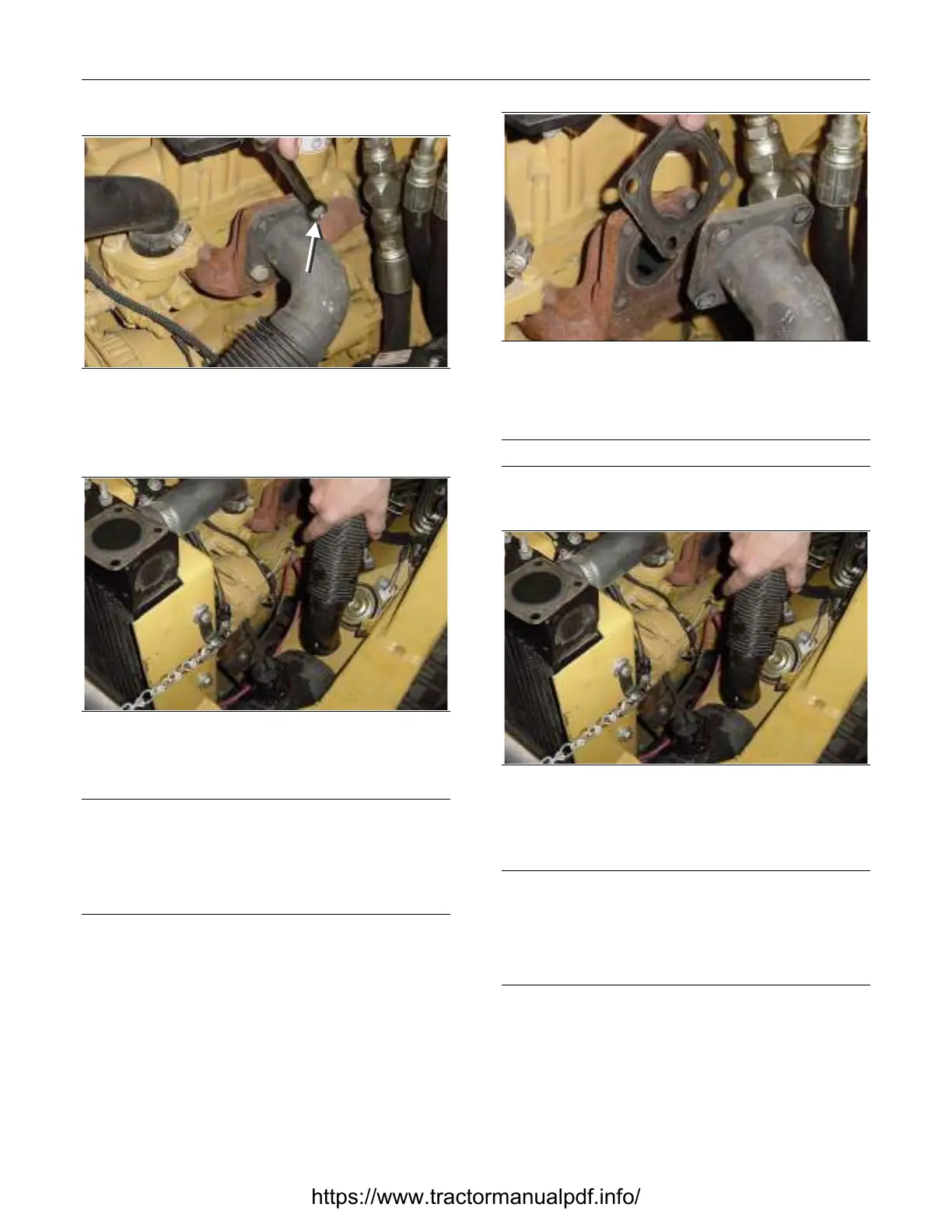

Figure 11-9 11-004
2. Remove the four bolts that secure the exhaust
flex pipe to the exhaust manifold.
Figure 11-10 11-002
3. Using the Channel locks, slide the exhaust pipe
off the muffler.
NOTICE
Do not kink or twist the exhaust pipe. One end of the ex-
haust pipe is attached to the muffler, which is fixed to the
frame. The other end is attached to the engine, which vi-
brates during operation. Kinks or twists in the exhaust pipe
could cause premature failure.
Figure 11-11 11-005
4. Remove the exhaust flex pipe gasket from the
exhaust manifold.
Note: The gasket may come off with the exhaust pipe.
Exhaust Pipe Installation
Figure 11-12 11-002
1. Carefully slide the exhaust pipe over the muffler
extension. Do not tighten the clamp yet.
NOTICE
Do not kink or twist the exhaust pipe. One end of the ex-
haust pipe is attached to the muffler, which is fixed to the
frame. The other end is attached to the engine, which vi-
brates during operation. Kinks or twists in the exhaust pipe
could cause premature failure.
Remove
Bolts
