Rubber Track Loader
12. Undercarriage Disassembly and Assembly
12-6

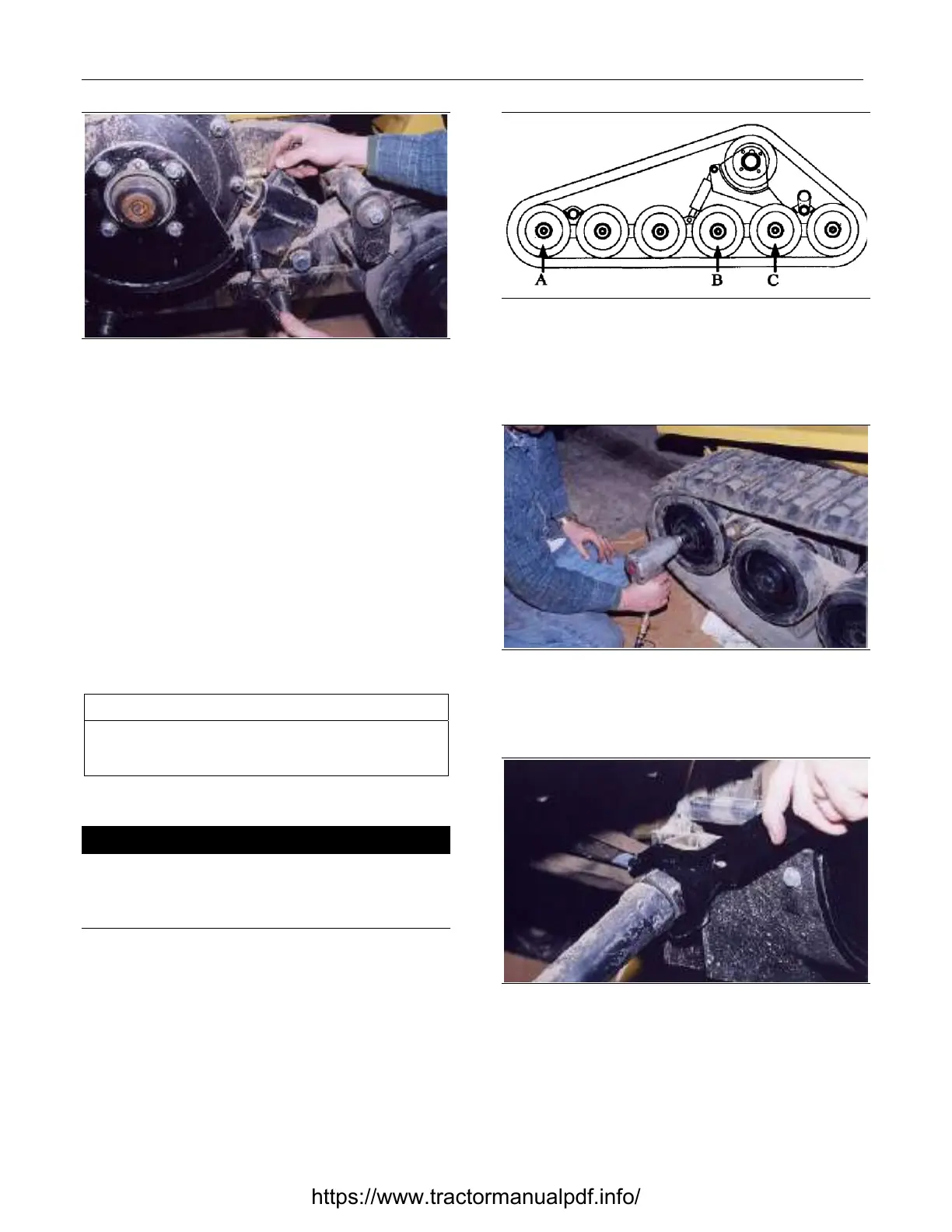

Figure 12-21 12-021
2. Insert and tighten the two bolts that fasten the
brake cylinder to the rail.
3. Replace the outside wheel directly behind the
drive sprocket. Refer to Chapter 12. Wheel In-
stallation.
Track Removal and
Installation
The tools required for track removal and installation
are listed in Table 12-4. Use manufacturer-
recommended tools whenever possible.
Table 12-4
Required Tools
Socket Wrench Floor Jack
Combination Wrench Straight Edge
Crowbar Tape Measure
Track Removal
! WARNING !
To remove the tracks, the machine must be jacked up and
placed on jack stands sturdy enough to support the weight
of the machine. The manufacturer-supplied jack stands
are recommended.
Figure 12-22 12-004
1. Locate the wheels marked A and B. If the track
is to be removed, these wheels and the wheel to
the inside of B must also be removed.
Figure 12-23 12-016
2. Remove the wheels located in step 1. Refer to
Chapter 12. Wheel Removal.
Figure 12-24 12-011
3. Loosen the jam nut located on the track ten-
sioner. A field wrench located under the right
fender of the machine can be used, but a stan-
dard wrench is preferred for shop use.
