Rubber Track Loader
11. Engine Components Disassembly and Assembly
11-5

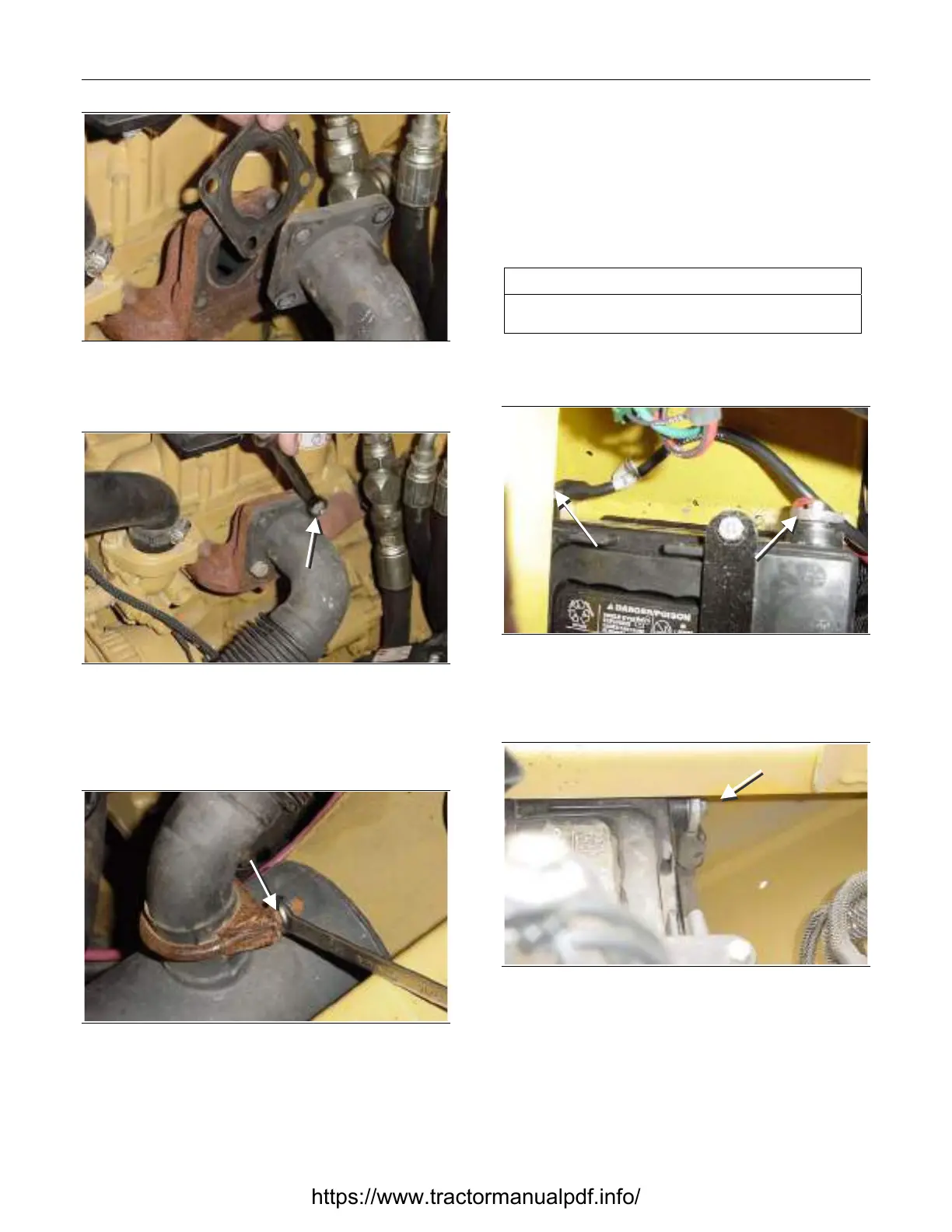

Figure 11-13 11-005
2. Place the exhaust flex pipe gasket in position.
Figure 11-14 11-004
3. With the exhaust pipe gasket in place, install the
four bolts that secure the exhaust pipe to the
exhaust manifold.
Figure 11-15 11-001
4. Make sure there are no kinks or bends in the
muffler, then tighten the bolts on the muffler
clamp.
Battery Removal and Installa-
tion
The tools required for battery removal and installa-
tion are listed in Table 11-3. Use manufacturer-
recommended tools whenever possible.
Table 11-3
Required Tools
Combination Wrench
Socket Wrench
Battery Removal
Figure 11-16 11-006
1. Identify the positive and negative battery termi-
nals.
Figure 11-17 11-007
2. Disconnect the battery cable from the negative
battery terminal.
Install
Bolts
Tighten
Bolts
Positive
Terminal
Negative
Terminal
Disconnect
Negative
Cable
