Rubber Track Loader
12. Undercarriage Disassembly and Assembly
12-2

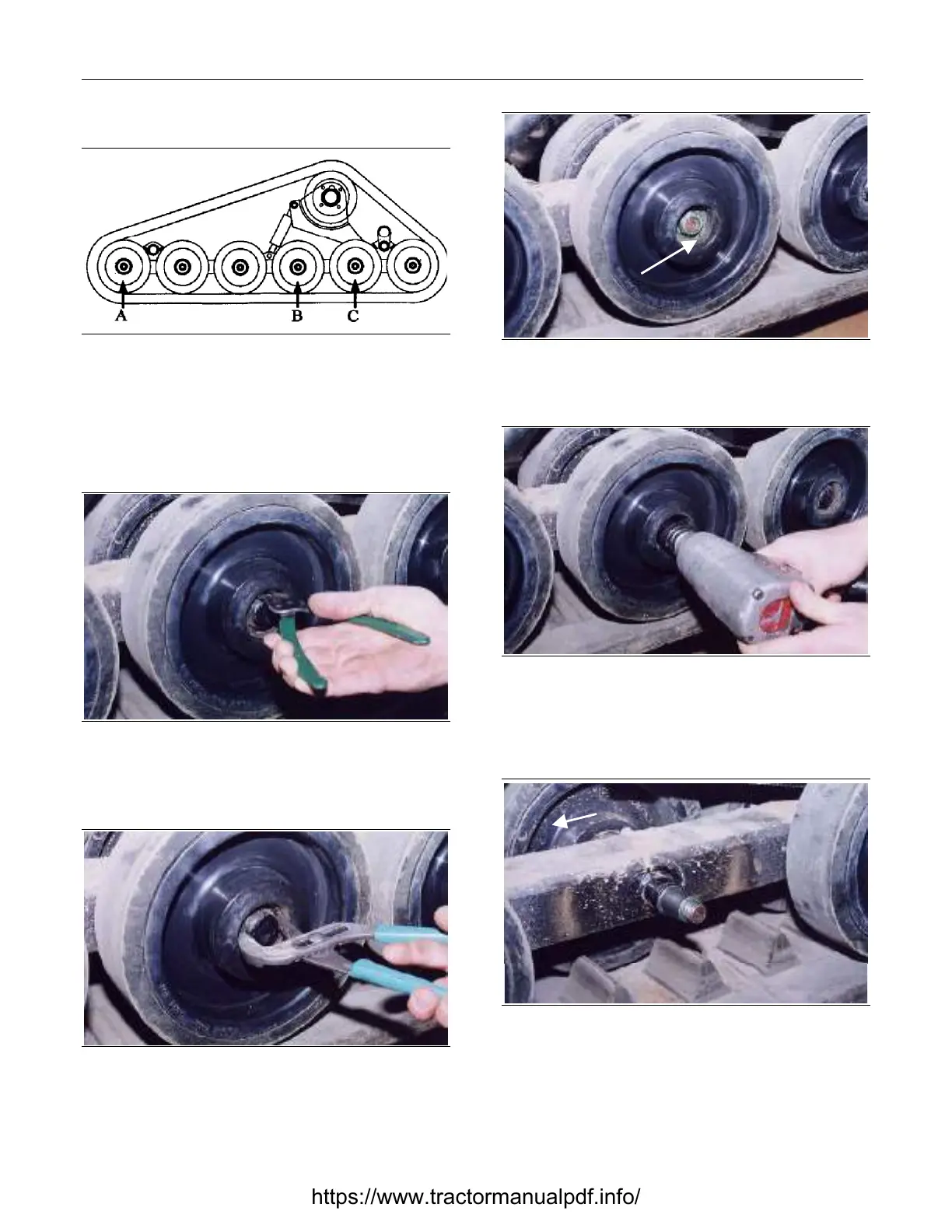

Wheel Removal
Figure 12-1 12-004
1. Locate the wheels marked A, B, and C. If the
track is to be removed, wheels A, B, and the
wheel to the inside of B must be removed. If the
brake is to be replaced, wheel C must be re-
moved.
Figure 12-2 12-005
2. Use a snap-ring pliers to remove the snap ring
that secures the wheel cap.
Figure 12-3 12-006
3. Using a large channel lock pliers, remove the
wheel cap.
O-Ring
Figure 12-4 12-007
4. Remove the o-ring from inside the wheel.
Figure 12-5 12-008
5. Using a socket, remove the nut that fastens the
wheel to the shaft. Remove the wheel with a
wheel extractor.
Inside Wheel
Figure 12-6 12-009
6. To remove an inside wheel, the machine must
be positioned securely on jack-stands. Slide un-
der the machine and repeat the wheel removal
procedure.
