Rubber Track Loader
13. Loader Disassembly and Assembly
13-3

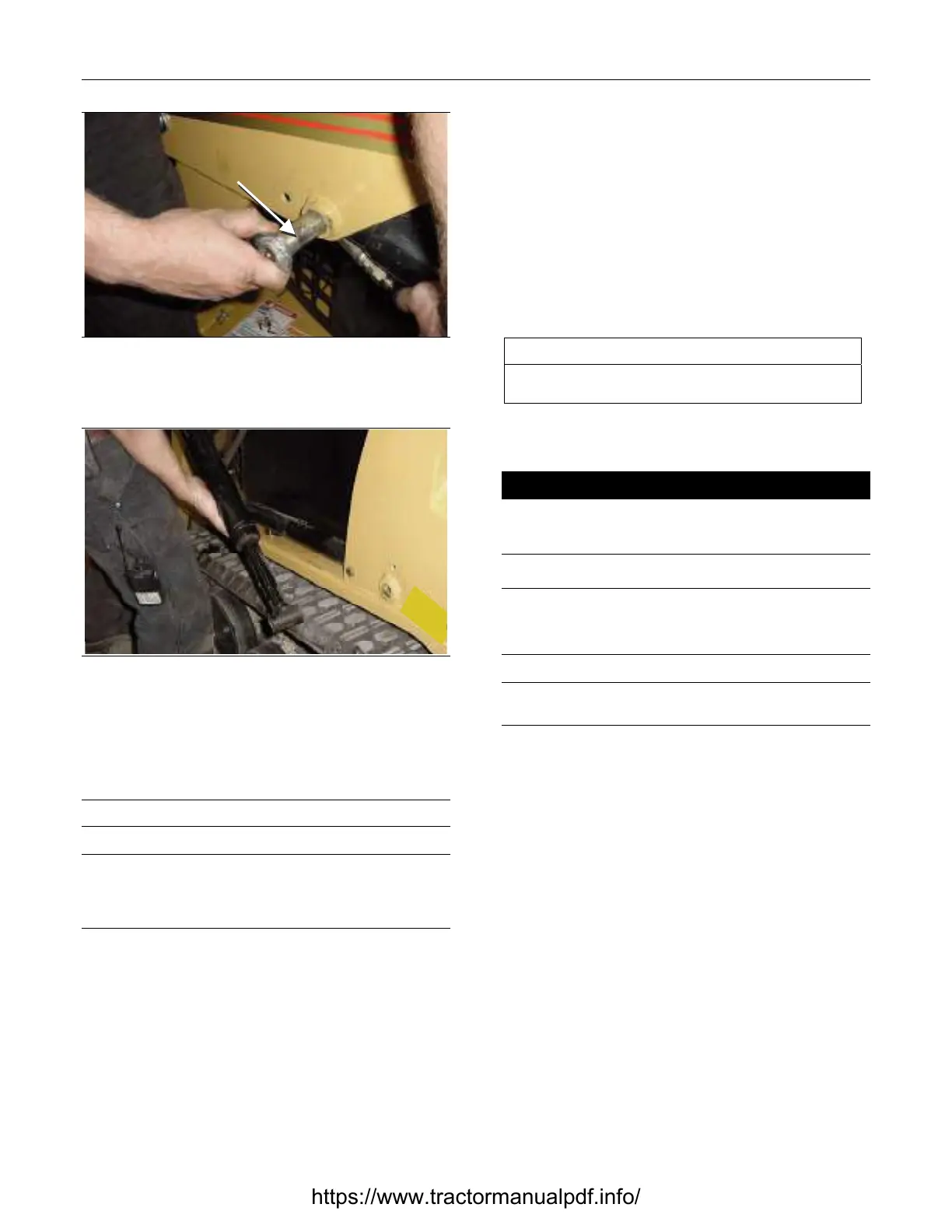

Figure 13-6 13-006
8. Remove the forward pin assembly.
Figure 13-7 13-007
9. Remove the lift cylinder from the machine.
Lift Cylinder/Tilt Cylinder Installation
Note: Reverse the above steps to install the cylinder.
Note: Begin the lift cylinder installation with the loader
arms lowered and resting about 6 inches off the ground on
a jackstand. This is the position the loader arms were in
following lift cylinder removal.
Quick-Coupler Block / Pres-
sure Release Valve Removal
and Installation
The tools required for low-flow relief valve removal
and installation are listed in Table 13-2. Use manu-
facturer-recommended tools whenever possible.
Table 13-2
Required Tools
Combination Wrench
Socket Wrench
Pressure Release Valve Removal
! WARNING !
Hot oil can cause personal injury. Lower all attach-
ments and make sure the oil is cool before removing
any components or lines.
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. Lower the lift arms to the ground.
2. Turn the engine start switch to the OFF position.
Remove
Pin
