Rubber Track Loader
13. Loader Disassembly and Assembly
13-2
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.

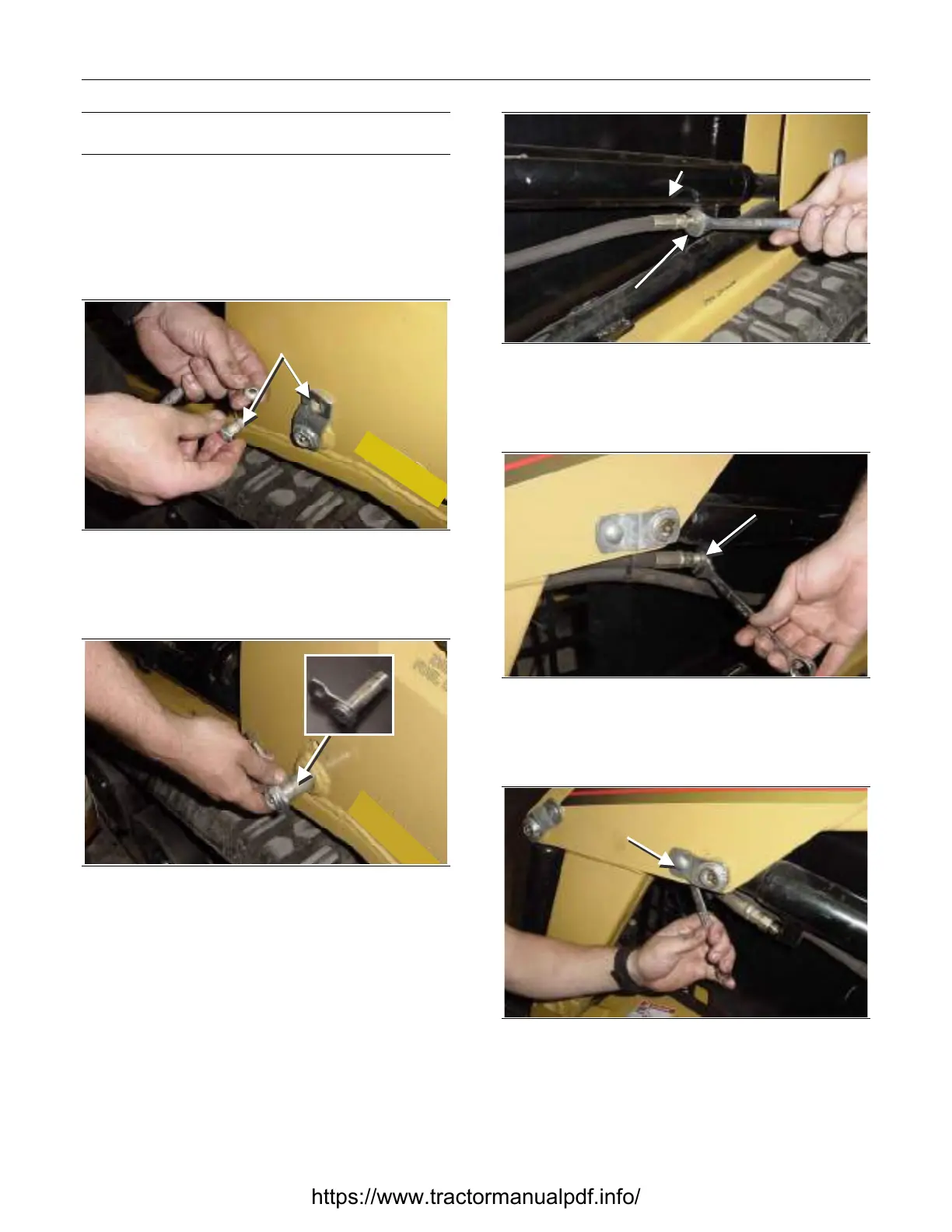

1. Lower the loader arms onto a jackstand with the
arms resting about 6 inches off the ground.
2. Turn the engine start switch to the OFF position.
Figure 13-1 13-001
3. Remove the bolt on the pin assembly on the
loader tower.
Figure 13-2 13-002
4. Remove the pin assembly.
Figure 13-3 13-003
5. Remove and cap the hose on the ram end of the
cylinder.
Figure 13-4 13-004
6. Remove and cap the hose on the loader end of
the cylinder.
Figure 13-5 13-005
7. Remove the forward pin assembly bolt.
Remove
Hose
Remove
Pin
Remove
Bolt
Remove
Hose
Remove
Bolt
Lift
Cylinder
