ASV RC30 User Manual

All Surface Loader
5. Operator Enclosure Disassembly and Assembly
5-4
4. Install the light bar. Refer to Chapter 5. Light Bar
Installation procedure.
Console Gauge/Warning Panel
Removal and Installation
The tools required for console gauge/warning panel
removal and installation are listed in Table 5-3. Use
manufacturer-recommended tools whenever possi-
ble.
Table 5-3
Required Tools
Combination wrench
Console Gauge Removal
1. Lower the light bar. Refer to Chapter 5. Light Bar
Removal procedure.
Remove
Connectors

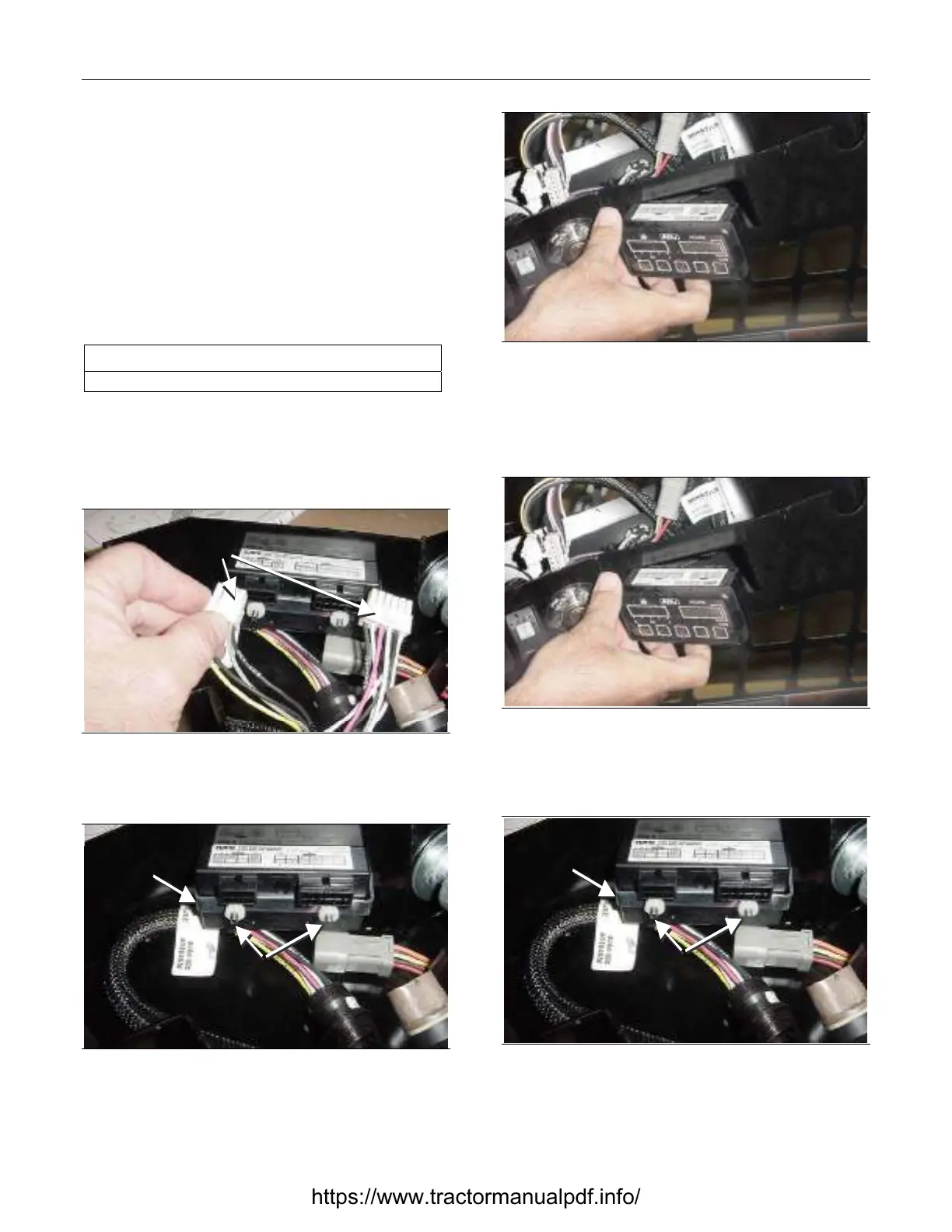

Figure 5-13 5-013
2. Remove the connectors from the console gauge.
Remove
Nuts
Retaining
Clip
Figure 5-14 5-014
3. Remove the two nuts that secure the console
gauge to the retaining clip.
Figure 5-15 5-015
4. Pull the console gauge out from the front of the
dash panel.
Console Gauge Installation
Figure 5-16 5-016
1. Insert the console gauge from the front of the
dash panel.
Install
Nuts
Retaining
Clip
Figure 5-17 5-017
2. Install the two nuts that secure the console
gauge to the retaining clip.
