8. Hydraulic Reservoir Disassembly and Assembly
8-5
Figure 8-16 8-010
4. Remove the filler cap gasket from the reservoir.
Filler Cap Assembly Installation
Figure 8-17 8-011

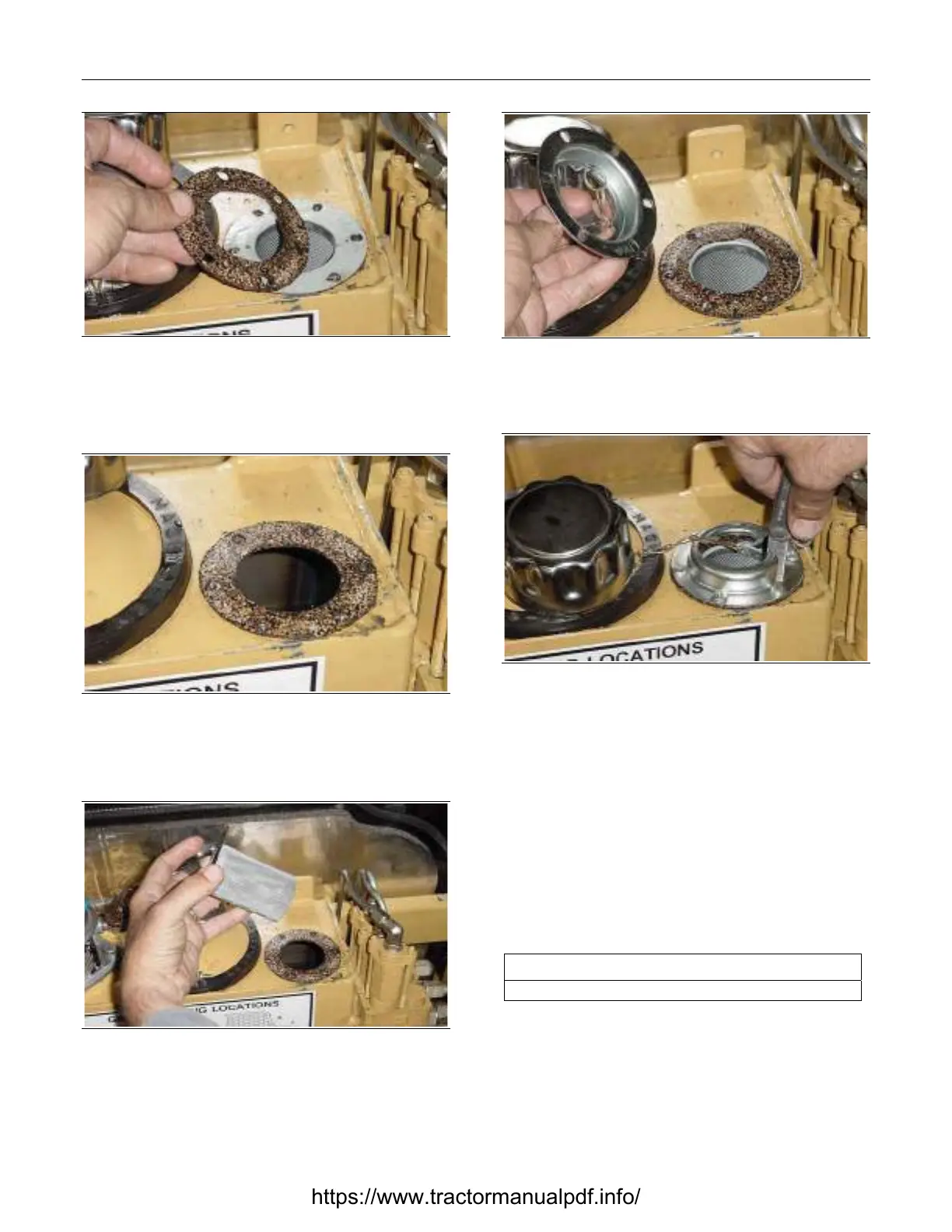

1. Place the filler cap assembly gasket in position
on top of the reservoir.
Figure 8-18 8-009
2. Insert the filler cap screen in the reservoir.
Figure 8-19 8-008
3. Place the filler cap flange on the gasket with the
mounting holes aligned.
Figure 8-20 8-007
4. Insert the six screws in the base of the filler cap
flange and replace the cap. Put thread sealant
on the six screws before installing.
Access Cover Removal and
Installation
The tools required for access cover removal and
installation are listed in Table 8-3. Use manufac-
turer-recommended tools whenever possible.
Table 8-3
Required Tools
Combination Wrench
