Rubber Track Loader
6. Chassis Disassembly and Assembly
6-3
Fuel Sending Unit Removal
1. Remove the seat. Refer to Chapter 6. Seat Re-
moval procedure.
2. Pump fuel from the tank until there is no fuel
remaining above the sending unit.
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Fuel
Sending
Unit

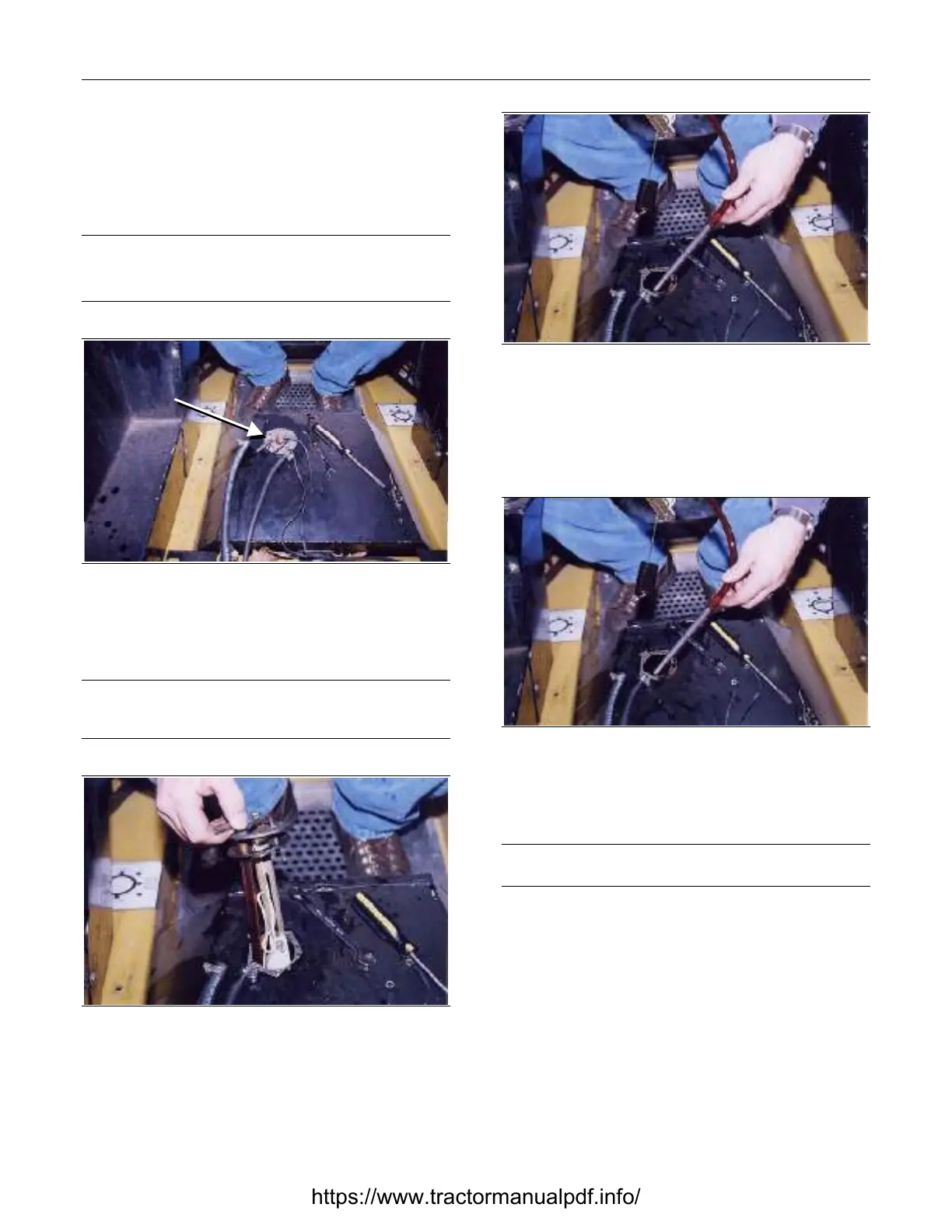

Figure 6-7 6-004
3. Remove the hoses and wires from the fuel send-
ing unit, then remove the screws that fasten the
unit to the tank. Mark the wires and hoses.
Note: If the fuel sending unit wires are crossed, the fuel
gauge will not work. If the hoses are crossed, the engine
will not run.
Figure 6-8 6-005
4. Remove the fuel sending unit. Be careful not to
damage the float mechanism when pulling it
through the opening in the fuel tank.
Figure 6-9 6-006
5. The fuel pickup line will also come out with the
fuel sending unit.
Fuel Sending Unit Installation
Figure 6-10 6-006
1. Insert the fuel pickup line into the fuel tank open-
ing. The pickup line is attached to the fuel send-
ing unit.
Note: The weight on the end of the fuel pickup line must
rest on the bottom of the tank for proper operation.
