All Surface Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-3

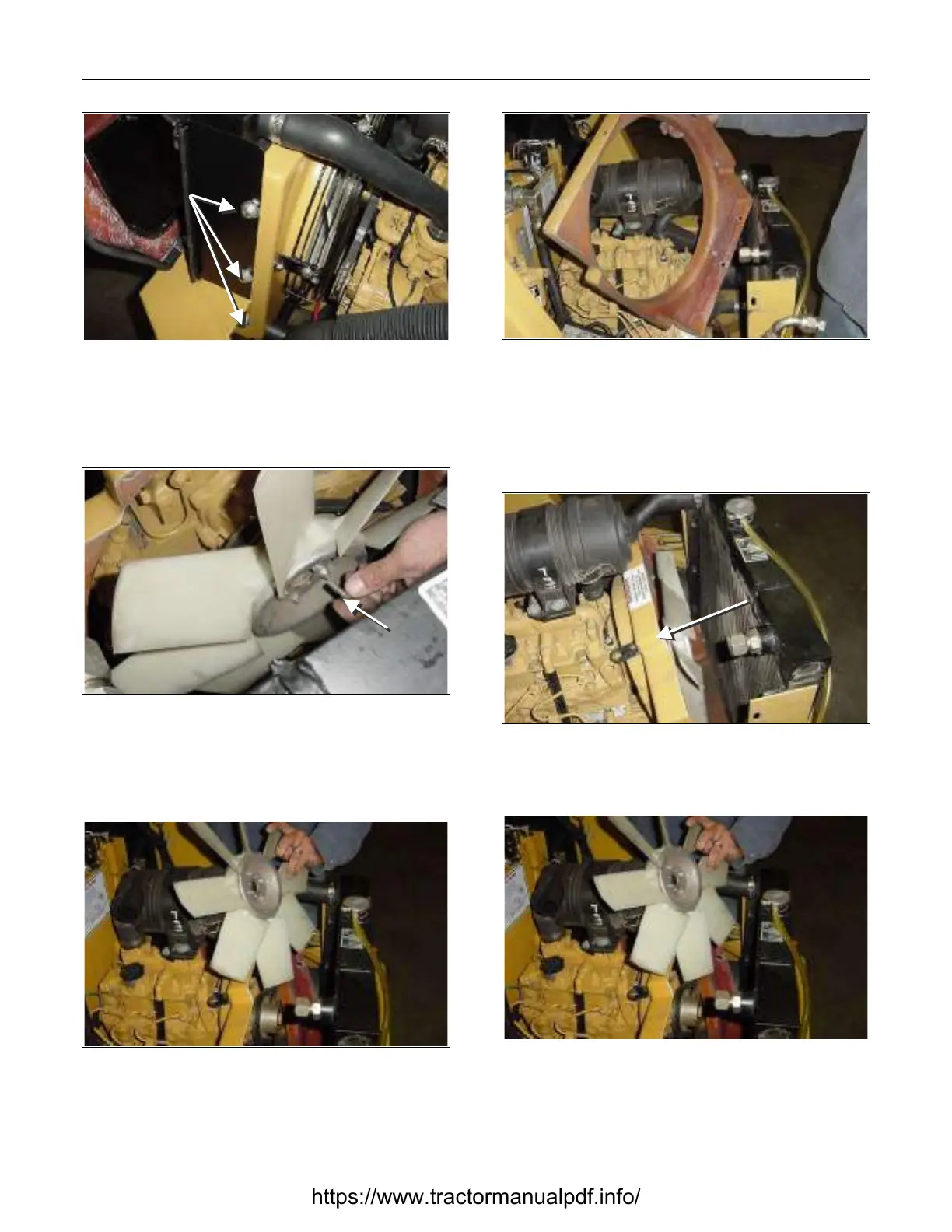

Figure 7-4 7-003
3. Remove the three bolts from each side of the
fan shroud that secure the shroud to the radia-
tor/cooler.
Figure 7-5 7-004
4. With the shroud pulled back, reach between the
radiator/cooler and the fan and remove the four
bolts that secure the fan to the engine.
Figure 7-6 7-005
5. Remove the fan from the engine compartment.
Figure 7-7 7-006
6. Remove the shroud from the engine compart-
ment.
Fan and Fan Shroud Installation
Figure 7-8 7-007
1. Place the fan shroud in the engine compartment.
Figure 7-9 7-005
2. Place the fan in the engine compartment.
Remove
Bolts
Remove
Bolts
Fan
Shroud
