Rubber Track Loader
8. Hydraulic Reservoir Disassembly and Assembly
8-3

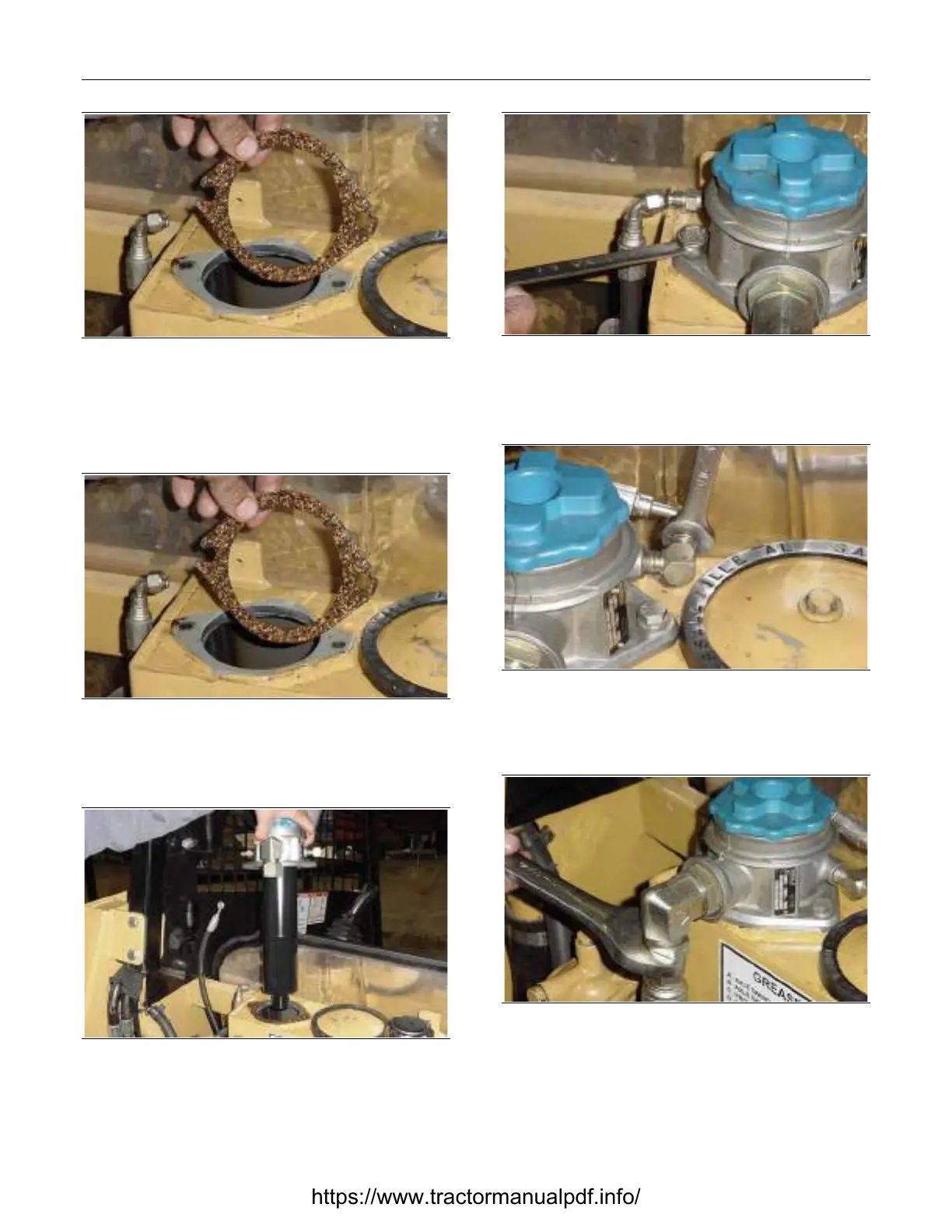

Figure 8-6 8-006
6. Remove the filter assembly gasket from the res-
ervoir.
Filter Assembly Installation
Figure 8-7 8-006
1. Place the filter assembly gasket in position on
top of the reservoir. Replace if damaged.
Figure 8-8 8-005
2. Position the filter assembly on the gasket with
the mounting holes aligned.
Figure 8-9 8-004
3. Install the two bolts that secure the filter assem-
bly to the reservoir.
Figure 8-10 8-003
4. Install the hose on the right side of the filter as-
sembly.
Figure 8-11 8-002
5. Install the hose on the front side of the filter as-
sembly.
