ASV RC30 User Manual

All Surface Loader

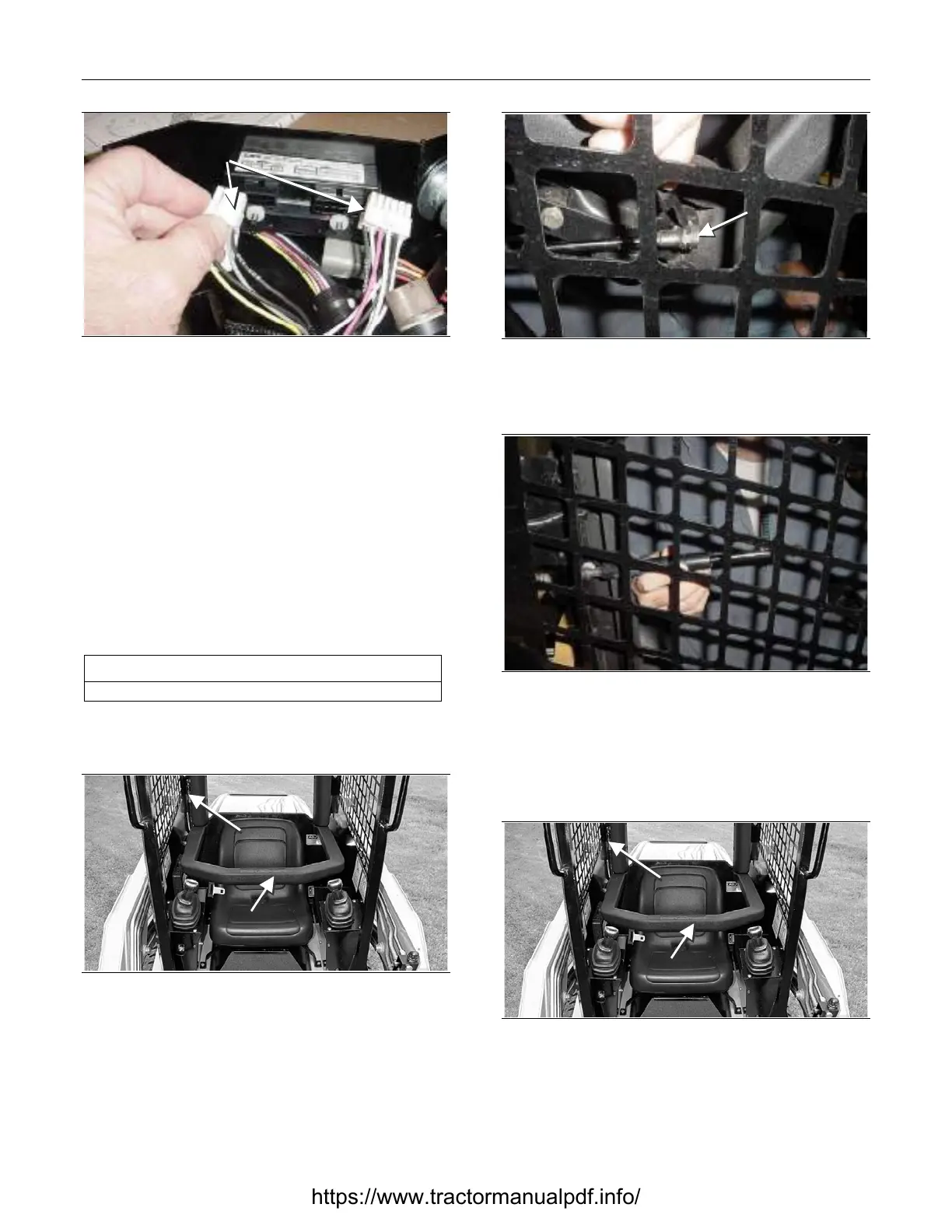

5. Operator Enclosure Disassembly and Assembly
5-5
Plug in
Connector
s
Figure 5-18 5-018
3. Plug in the console gauge connectors.
4. Install the light bar. Refer to Chapter 5. Light Bar
Installation procedure.
Lap Bar Gas Assist Spring
Removal and Installation
The tools required for gas assist spring removal and
installation are listed in Table 5-4. Use manufac-
turer-recommended tools whenever possible.
Table 5-4
Required Tools
Screwdriver
Lap Bar Gas Assist Spring Removal
Raise Lap Bar
(Shown in Down
Position
)
Gas Assist
Spring
Figure 5-19 5-019
1. Put the lap bar in the UP position to relieve ten-
sion on the lap bar gas assist spring.
Remove
Retainin
g
Cli
p
Figure 5-20 5-020
2. Using a small screwdriver, remove the retaining
clip from each end of the gas assist spring.
Figure 5-21 5-021
3. Remove the gas assist spring by pulling both
ends out from the ball joints.
Lap Bar Gas Assist Spring Installation
Gas Assist
Spring Location
Raise Lap Bar
(Shown in Down
Position
)
Figure 5-22 5-022
1. Put the lap bar in the UP position to minimize
tension on the lap bar gas assist spring during
installation.
