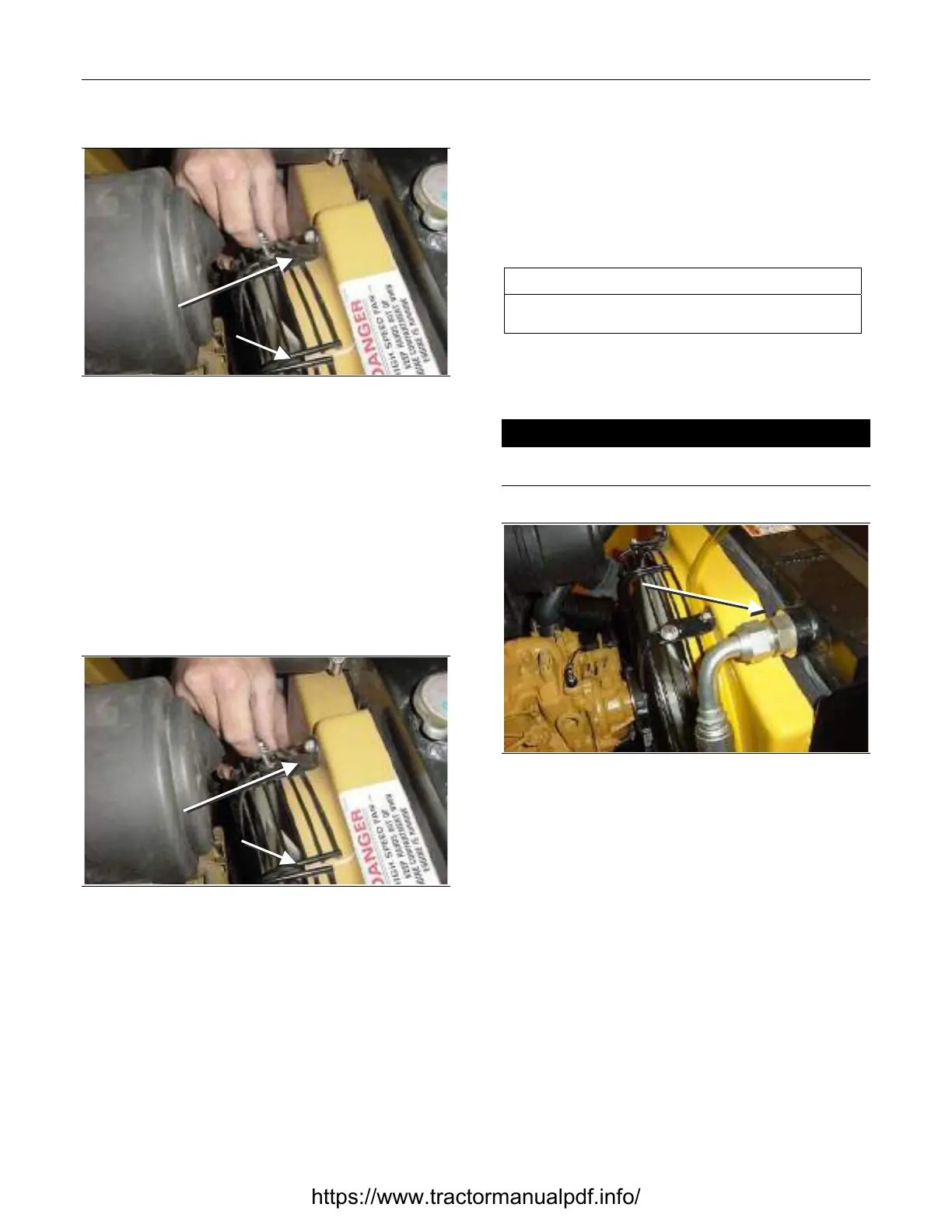

ASV RC30 User Manual

All Surface Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-2
Fan Guard Removal
Figure 7-1 7-001
1. Remove the capscrews that secure the fan
guard to the fan guard mounts.
2. Remove the fan guard from the engine com-
partment.
Fan Guard Installation
1. Position the fan guard over the fan and against
the fan shroud.
Figure 7-2 7-001
2. Install the capscrews that secure the fan guard
to the fan guard mounts.
Fan and Fan Shroud Removal
and Installation
The tools required for fan and fan shroud removal
and installation are listed in Table 7-2. Use manufac-
turer-recommended tools whenever possible.
Table 7-2
Required Tools
Combination Wrench
Socket Wrench
Fan and Fan Shroud Removal
! WARNING !
Hot oil can cause personal injury. Make sure the oil is
cool before removing any components or lines.
Figure 7-3 7-002
1. Remove the upper hose from the oil cooler sec-
tion. Cap the hose and fitting.
2. Remove the fan guard. Refer to Chapter 7. Fan
Guard Removal.
Remove
Hose
Fan
Guard
Mount
Fan
Guard
Fan
Guard
Mount
Fan
Guard
