Rubber Track Loader
3. System Diagrams
3-3
Drive Loop System
The drive loop system (Figure 3-3) contains the fol-
lowing major components.
• Tandem pump
• Drive motors
• Pilot control manifold
• Brake cylinders
• Drive control joystick

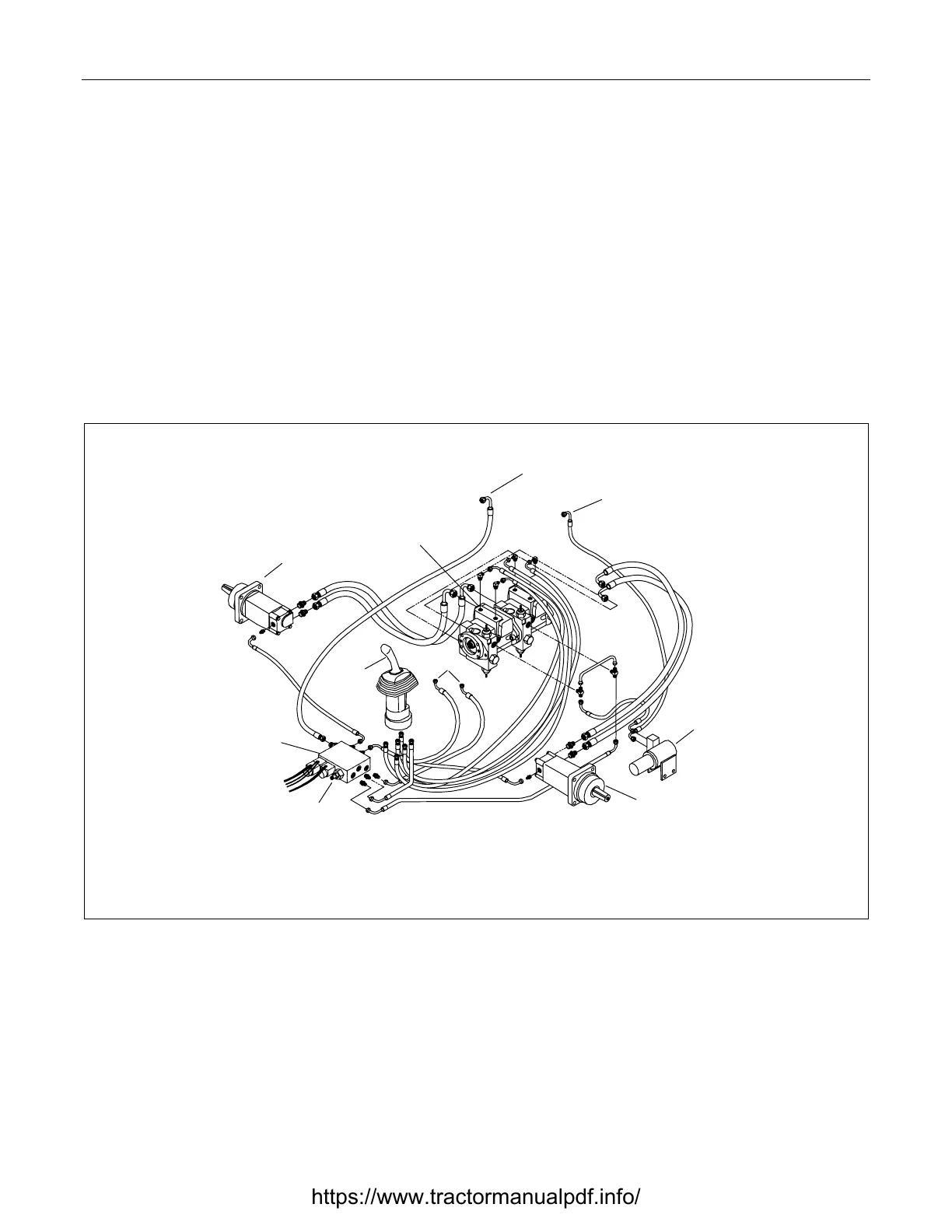

Figure 3-3
Drive Loop System 3-003
To Implement
Valve
To Tank
Brake
Cylinder
Drive
Motor
Pilot
Control
Manifold
Charge
Pressure
Test Port
Drive
Control
Joystick
To Tan
k
Tandem Pump
(With Drive &
Charge Pressure
Relief Valves)
Drive
Motor
