ASV RC30 User Manual

Rubber Track Loader
10. Transmission and Drive Disassembly and Assembly
10-5

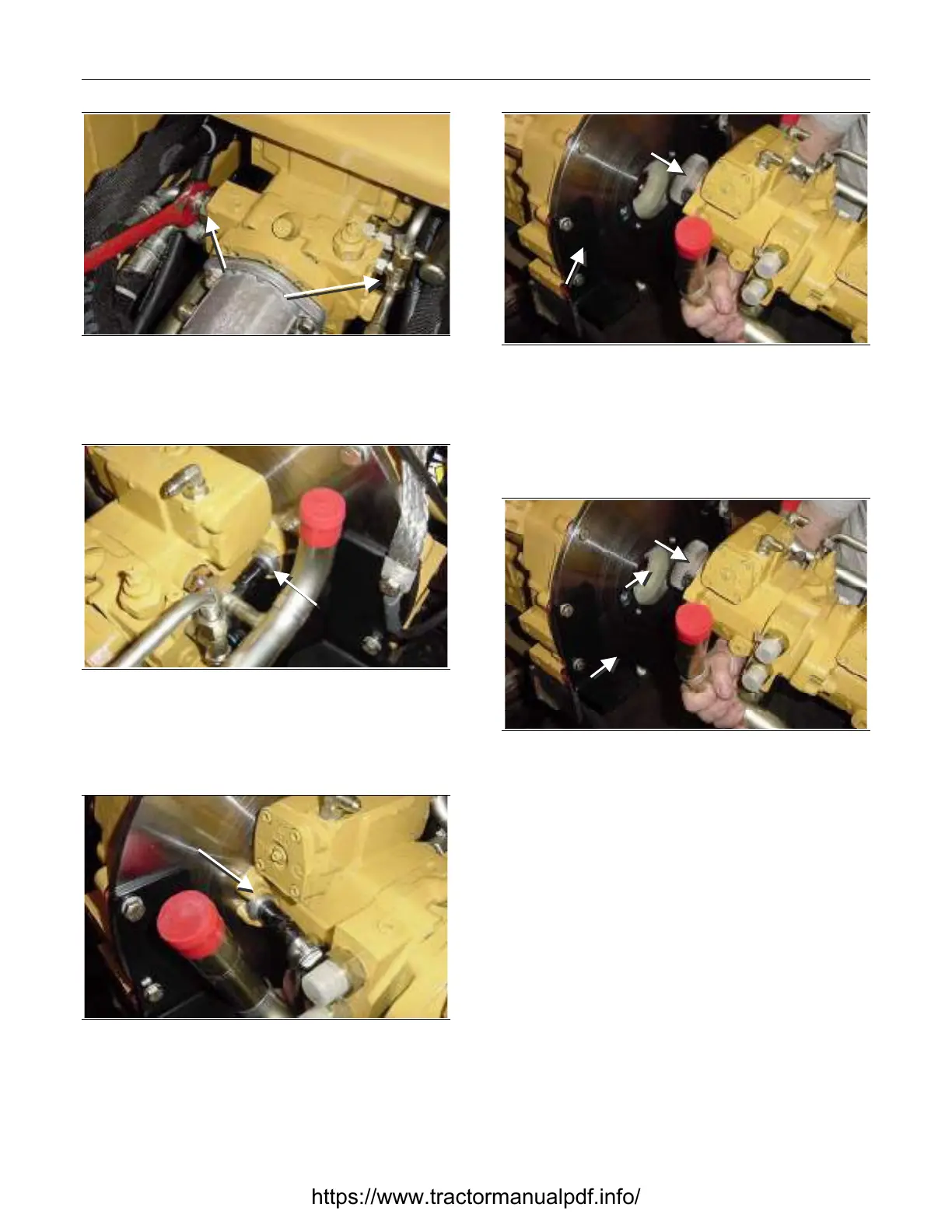

Figure 10-11 10-007
8. Remove all hoses and tubes from the tandem
pump. Cap the hoses and tubes.
Figure 10-12 10-008
9. Remove the mounting bolt (with spring lock
washer and flat washer) from the right-hand side
of the tandem pump.
Figure 10-13 10-009
10. Remove the mounting bolt (with spring lock
washer and flat washer) from the left-hand side
of the tandem pump.
Figure 10-14 10-010
11. Remove the tandem pump (with pump drive
coupler attached) from the pump mounting plate.
Tandem Pump Installation
Figure 10-15 10-010
1. With the pump drive coupler attached to the tan-
dem pump, position the tandem pump against
the pump mounting plate. Make sure the teeth
on the pump drive coupler mesh properly with
the flywheel gear teeth.
Remove
Hoses and
Tubes
Remove
Bolt
Remove
Bolt
Pump
Mounting
Plate
Pump Drive
Coupler
Pump
Mounting
Plate
Pump D
r
ive
Coupler
Flywheel
Gear
