ASV RC30 User Manual

Rubber Track Loader
11. Engine Components Disassembly and Assembly
11-2

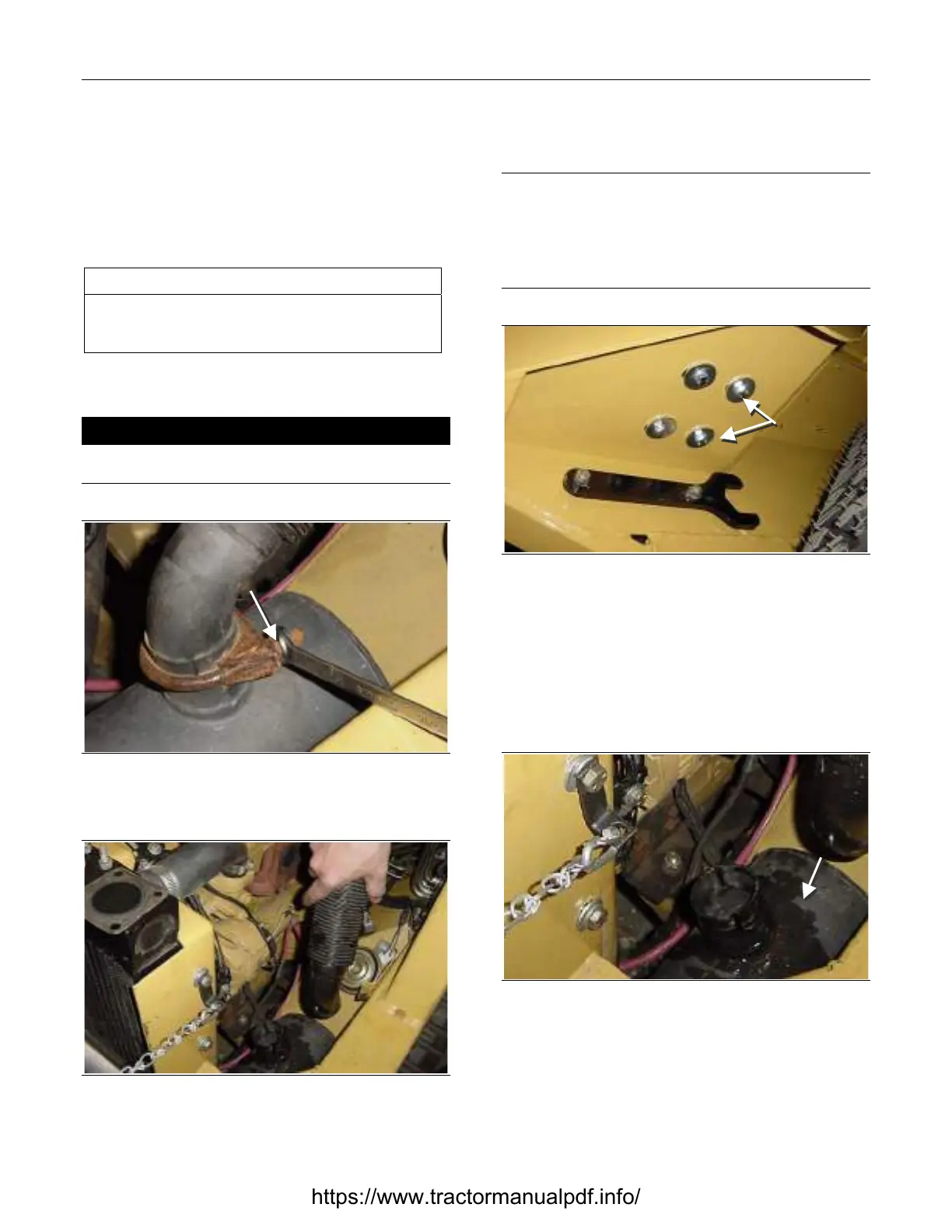

Muffler Removal and
Installation
The tools required for muffler removal and installa-
tion are listed in Table 11-1. Use manufacturer-
recommended tools whenever possible.
Table 11-1
Required Tools
Socket Wrench
Combination Wrench
Channel Lock Pliers
Muffler Removal
! CAUTION !
The muffler gets very hot during operation. Do not
service the muffler until it is cool enough to touch.
Figure 11-1 11-001
1. Loosen the bolts on the muffler clamp.
Figure 11-2 11-002
2. Using the channel lock, slide the flex pipe off the
muffler.
NOTICE
Do not kink or twist the exhaust pipe. One end of the ex-
haust pipe is attached to the muffler, which is fixed to the
frame. The other end is attached to the engine, which vi-
brates during operation. Kinks or twists in the exhaust pipe
could cause premature failure.
Figure 11-3 11-003
3. From underneath the machine, remove the four
bolts that fasten the muffler to the frame.
4. Remove the muffler from the engine compart-
ment.
Muffler Installation
Figure 11-4 11-002
1. Guide the end of the exhaust pipe through the
opening in the rear frame structure and position
the muffler over the four muffler mounting holes.
Loosen
Bolts
Remove
Bolts
Position
the Muffler
over the
four
Mounting
Holes
