All Surface Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-7

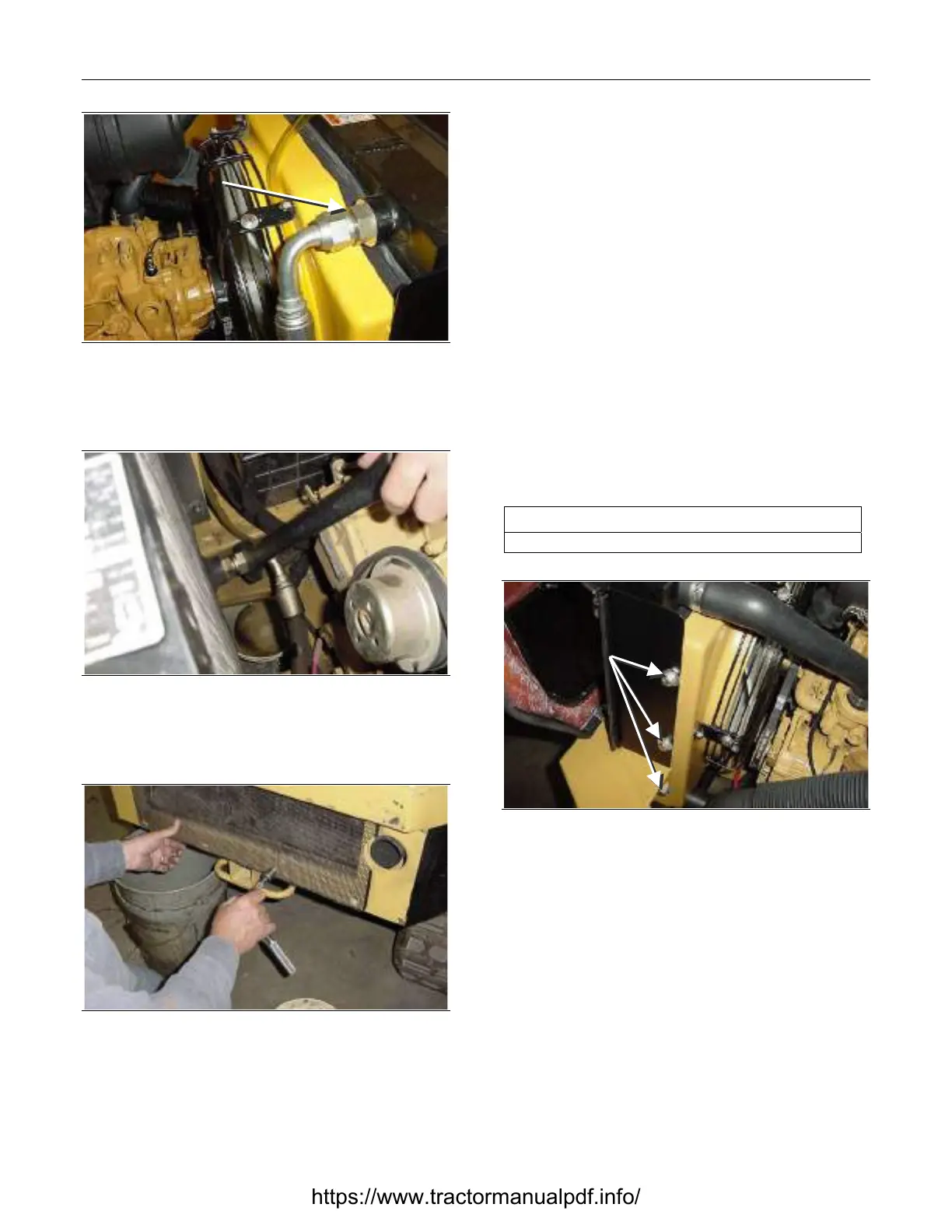

Figure 7-25 7-002
5. Remove the hose and fitting caps and install the
upper hose on the oil cooler section.
Figure 7-26 7-010
6. Remove the hose and fitting caps and install the
lower hose on the oil cooler section.
Figure 7-27 7-008
7. Position the lower engine compartment screen
and secure with the mounting bolts.
8. Fill the radiator with coolant and the hydraulic
reservoir with oil.
Radiator/Oil Cooler
Adjustment Procedures
Adjustment procedures are provided for the follow-
ing radiator/oil cooler components.
• Fan Shroud
• Fan Guard
Fan Shroud Adjustment
The tools required for fan shroud adjustment are
listed in Table 7-4. Use manufacturer-recommended
tools whenever possible.
Table 7-4
Tool Name
Combination Wrench
Figure 7-28 7-003
1. The fan shroud can adjusted upward or down-
ward. To adjust, loosen the bolts on each side of
the shroud and move the shroud in the desired
direction. Tighten the bolts when finished.
Loosen
Bolts
to Adjust
Install
Hose
