ASV RC30 User Manual

Rubber Track Loader
10. Transmission and Drive Disassembly and Assembly
10-7
4. Drain the hydraulic fluid. Refer to Chapter 16.
Hydraulic Fluid and Filter Change.
5. Remove the seat. Refer to Chapter 6. Seat Re-
moval.
6. Remove the fuel tank. Refer to Chapter 6. Fuel
Tank Removal.
7. Remove the auxiliary gear pump. Refer to Chap-
ter 10. Auxiliary Gear Pump Removal.
8. Remove the tandem pump. Refer to Chapter 10.
Tandem Pump Removal.

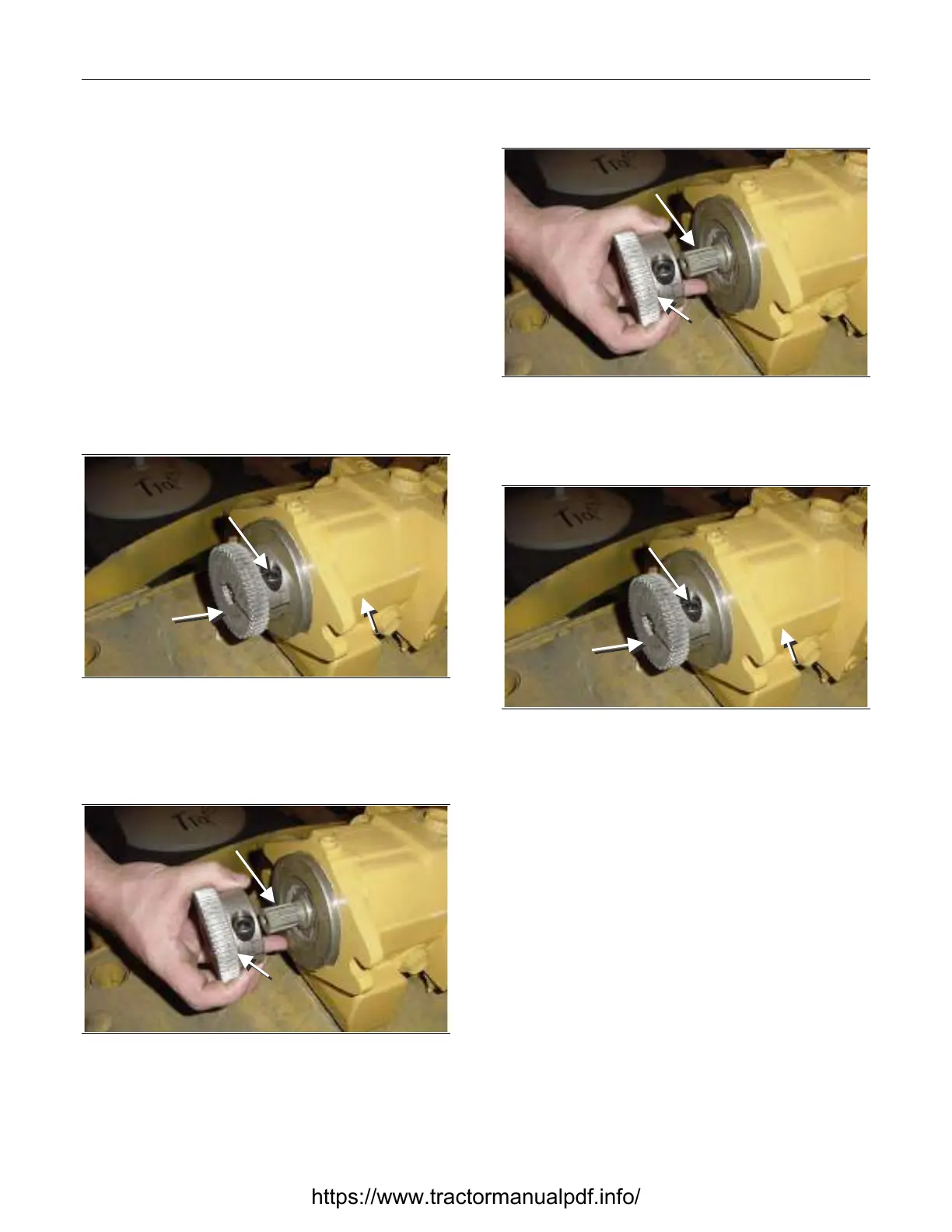

Figure 10-19 10-011
9. Loosen the locking screw that secures the pump
drive coupler to the drive shaft extending from
the end of the tandem pump.
Figure 10-20 10-012
10. Slide the pump drive coupler off the tandem
pump drive shaft.
Pump Drive Coupler Installation
Figure 10-21 10-012
1. Slide the pump drive coupler all the way onto the
tandem pump drive shaft.
Figure 10-22 10-011
2. Tighten the locking screw that secures the pump
drive coupler to the tandem pump drive shaft.
3. Install the tandem pump. Refer to Chapter 10.
Tandem Pump Installation.
4. Install the auxiliary gear pump. Refer to Chapter
10. Auxiliary Gear Pump Installation.
5. Install the fuel tank. Refer to Chapter 6. Fuel
Tank Installation.
6. Install the seat. Refer to Chapter 6. Seat
Installation.
7. Add fuel and manufacturer-approved hydraulic
fluid.
Loosen
Locking
Screw
Pump
Drive
Coupler
Tandem
Pum
p
Tandem Pump
Drive Shaft
Pump
Drive
Coupler
Tandem Pump
Drive Shaft
Pump
Drive
Coupler
Tighten
Locking
Screw
Pump
Drive
Coupler
Tandem
Pum
p
