ASV RC30 - Loader Float Magnet Installation

Rubber Track Loader
9. Loader/Transmission Controls Disassembly and Assembly
9-6

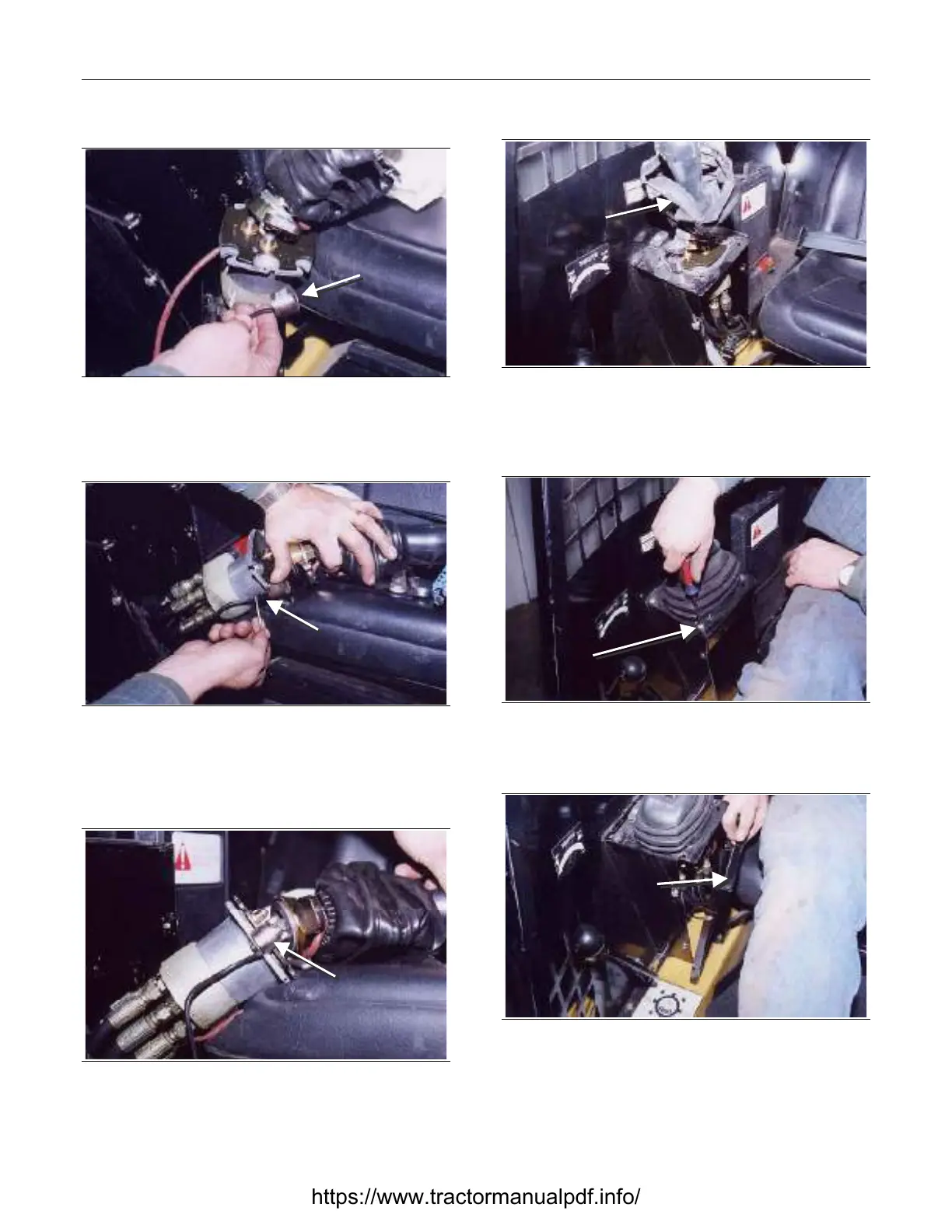

Loader Float Magnet Installation
Position
Magnet
Figure 9-20 9-010
1. Position the loader float magnet at the front of
the control.
Install
Screw
Figure 9-21 9-009
2. The loader float magnet is held in place by an
allen screw at the bottom of the magnet. Install
this screw.
Loader Float
Magnet
Figure 9-22 9-008
3. With the loader float magnet installed, the con-
trol is ready to mount in the console.
Pull the
Boot Down
Figure 9-23 9-007
4. Position the control on the console and pull the
rubber boot down over the base of the joystick.
Install
Screws
Figure 9-24 9-003
5. Install the four retaining screws in the top cover.
Position the
Side Cover
Figure 9-25 9-002
6. Place the side cover in position on the console.
