ASV RC30 User Manual

Rubber Track Loader
12. Undercarriage Disassembly and Assembly
12-7

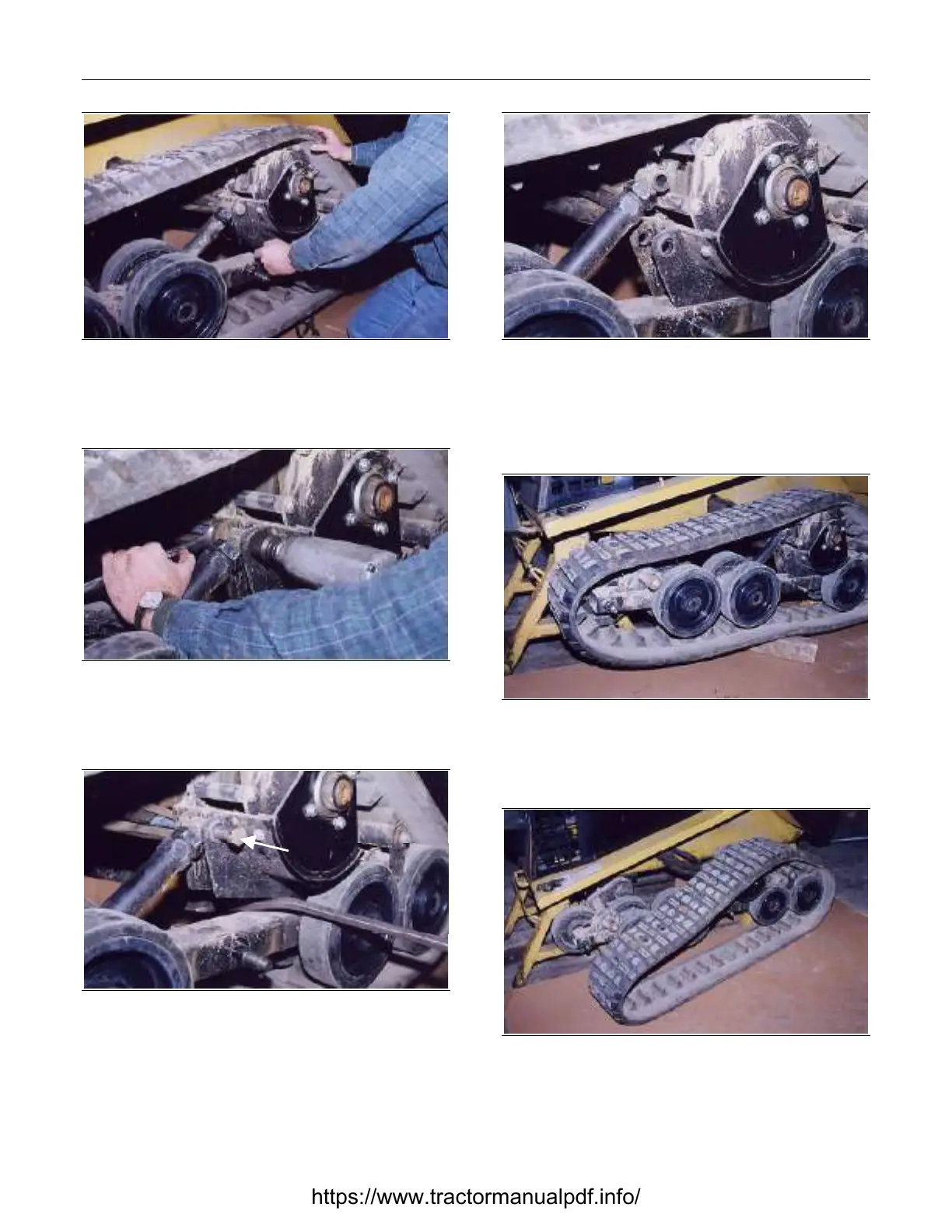

Figure 12-25 12-012
4. Using the wrench, turn the track tensioner until
the track has significant slack.
Figure 12-26 12-013
5. Remove the nut from the bolt that fastens the
track tensioner to the drive sprocket assembly.
Remove
Bolt
Figure 12-27 12-014
6. Using a crowbar, pry up the drive sprocket as-
sembly until the track tensioner bolt is loose.
Remove the bolt.
Figure 12-28 12-015
7. Pry the drive sprocket assembly away from the
tensioner and pivot the tensioner out of the way.
Lower the drive sprocket assembly until it is rest-
ing on the rail.
Figure 12-29 12-056
8. With the wheels removed and the drive sprocket
lowered, the track is ready for removal.
Figure 12-30 12-017
9. Pull the track to the outside, and remove the
track.
