ASV RC30 User Manual

Rubber Track Loader
6. Chassis Disassembly and Assembly
6-5

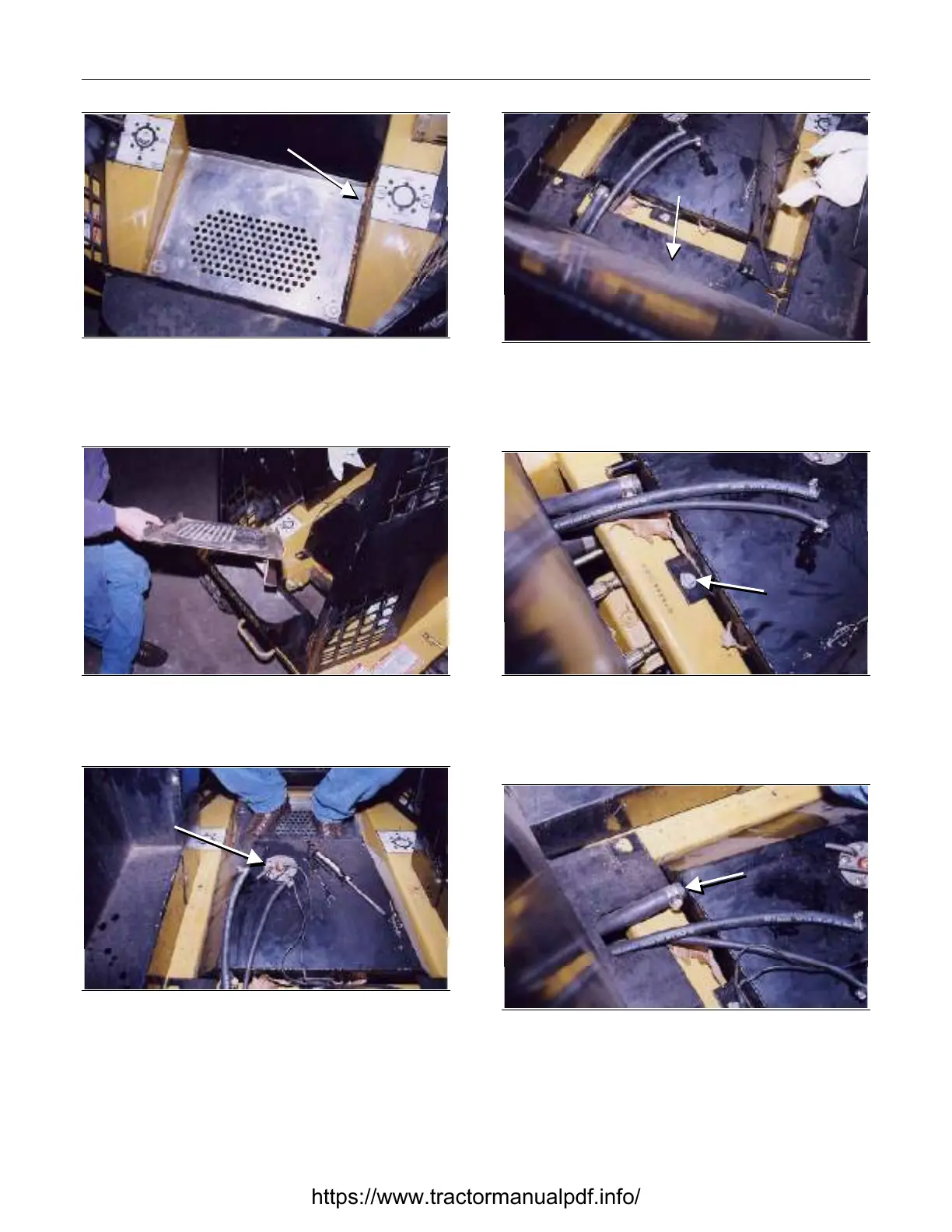

Remove Floor
Pan Bolts
Figure 6-14 6-007
4. Remove the four bolts that hold the floor pan to
the frame.
Figure 6-15 6-008
5. Remove the floor pan.
Fuel
Sending
Unit
Figure 6-16 6-004
6. Remove the hoses and wires from the fuel send-
ing unit.
Remove
Filler Piece
Figure 6-17 6-009
7. Remove the steel filler piece behind the fuel
tank.
Remove
Bolt
Figure 6-18 6-010
8. Remove the bolt that fastens the fuel tank to the
frame.
Disconnect
Vent Hose
Figure 6-19 6-011
9. Disconnect the rubber vent hose from the fuel
tank.
