7. Radiator/Oil Cooler Disassembly and Assembly
7-5
Figure 7-13 7-008

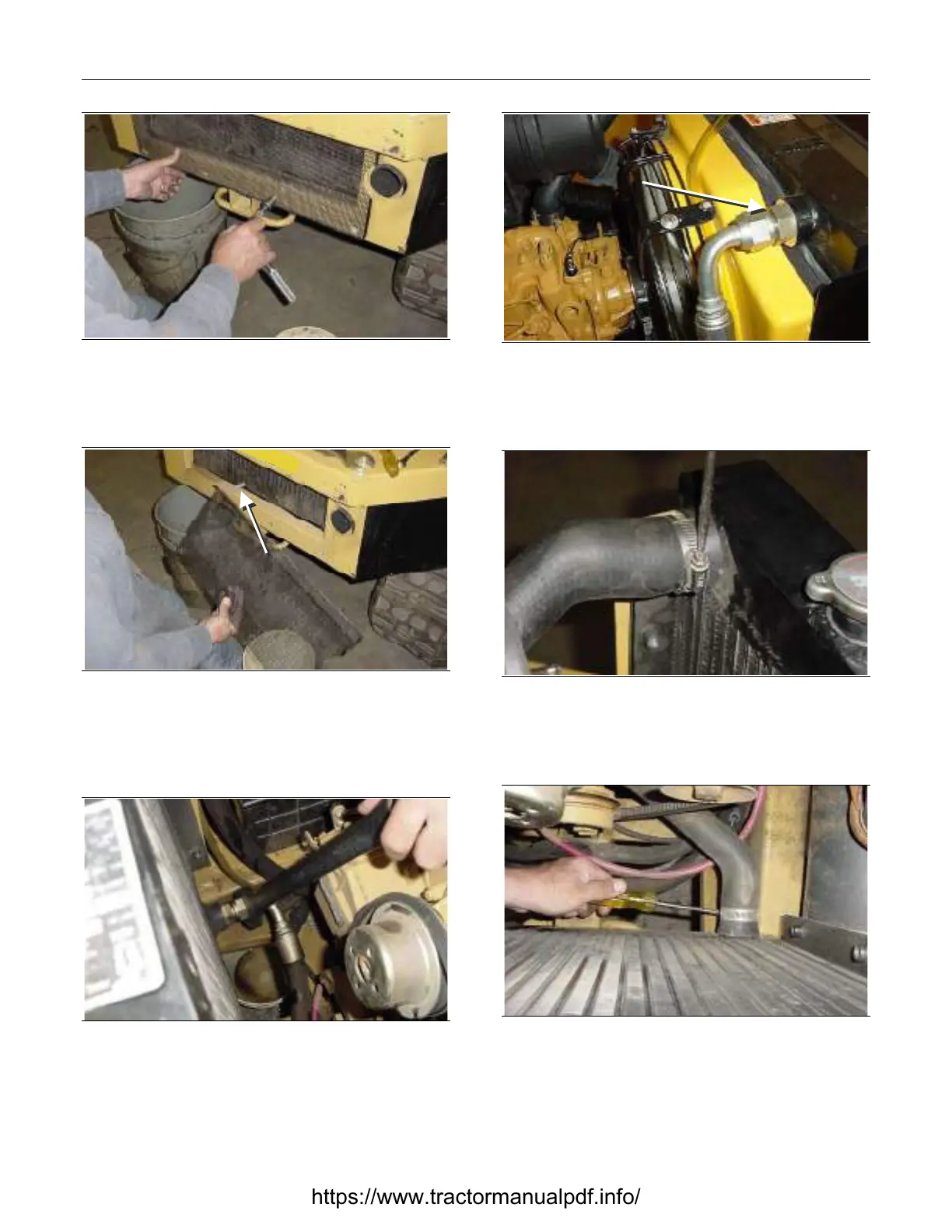

3. Remove the bolts from the lower engine com-
partment screen.
Figure 7-14 7-009
4. Remove the lower engine compartment screen
and drain the coolant using the petcock on the
bottom of the radiator.
Figure 7-15 7-010
5. Remove the lower hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-16 7-002
6. Remove the upper hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-17 7-011
7. Remove the upper hose from the radiator sec-
tion. Cap the hose and fitting.
Figure 7-18 7-012
8. Remove the lower hose from the radiator sec-
tion. Cap the hose and fitting.
Remove
Hose
Drain
Coolant
