12. Undercarriage Disassembly and Assembly
12-10

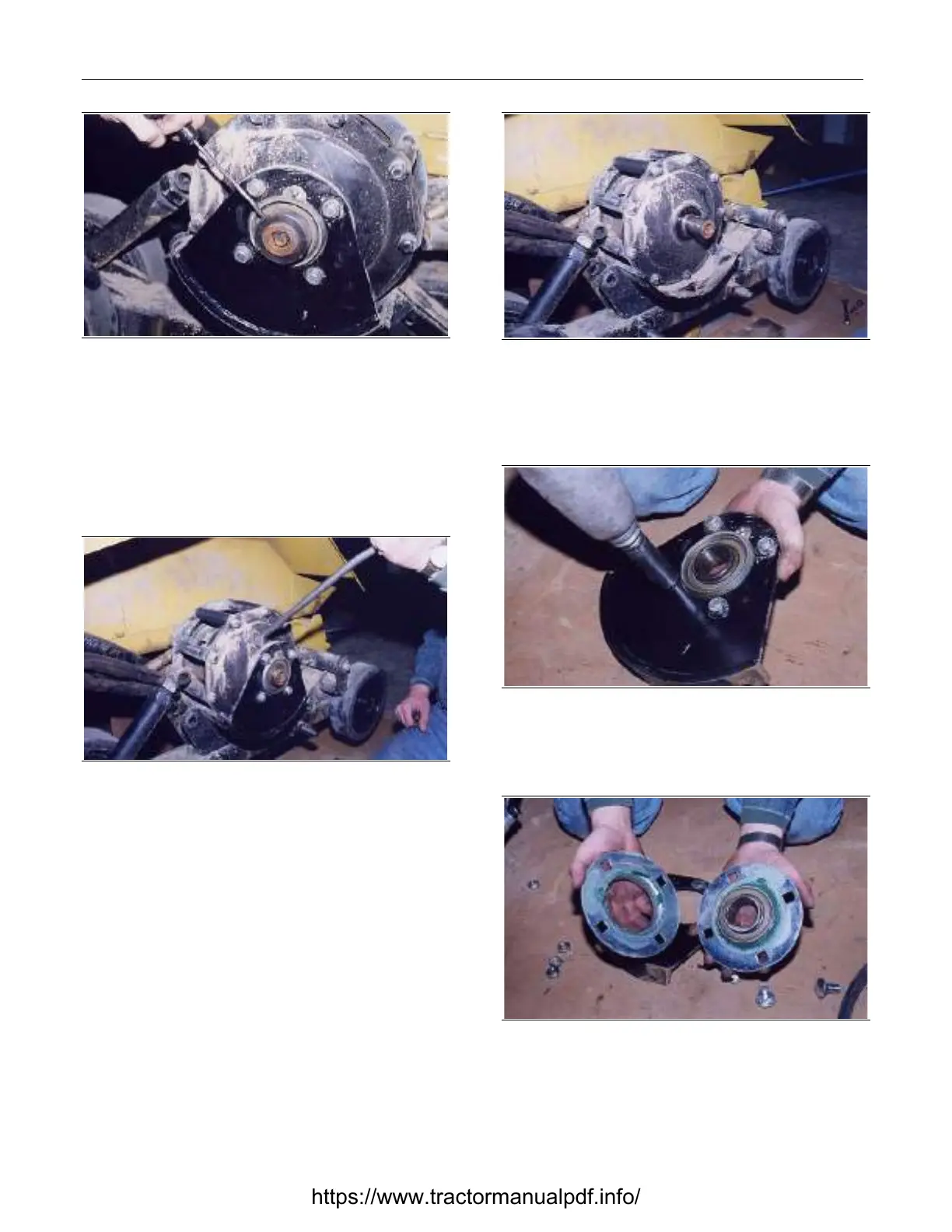

Figure 12-40 12-025
5. Loosen the allen bolt from the lock collar. Using
a steel punch, rotate the lock collar in the direc-
tion opposite to which it was tightened. (You will
be able to see the original marks on the collar.)
Use the punch hole to rotate. DO NOT chisel
against the allen bolt or use the allen bolt hole to
rotate the collar. Remove the lock collar
Figure 12-41 12-026
6. Pry the bearing plate off the shaft. Be careful not
to bend or damage the bearing plate or bearing
flange.
Figure 12-42 12-027
7. Remove the bearing plate from the sprocket
shaft.
Figure 12-43 12-028
8. Remove the bearing flange bolts from the bear-
ing plate.
Figure 12-44 12-029
9. Split the bearing flanges and expose the bear-
ing. Replace if necessary.
