Conguring a Module Using Studio5000 Logix Designer
C.4. RPI conguration
Setting the RPI values
Searching the module
When setting up an EtherNet/IP system, the RPI value must be carefully set in the controller.
To set the RPI values, the module properties must be selected.
In :
➔ Double-click the module or
➔ Right-click the module and select Properties from the context menu.

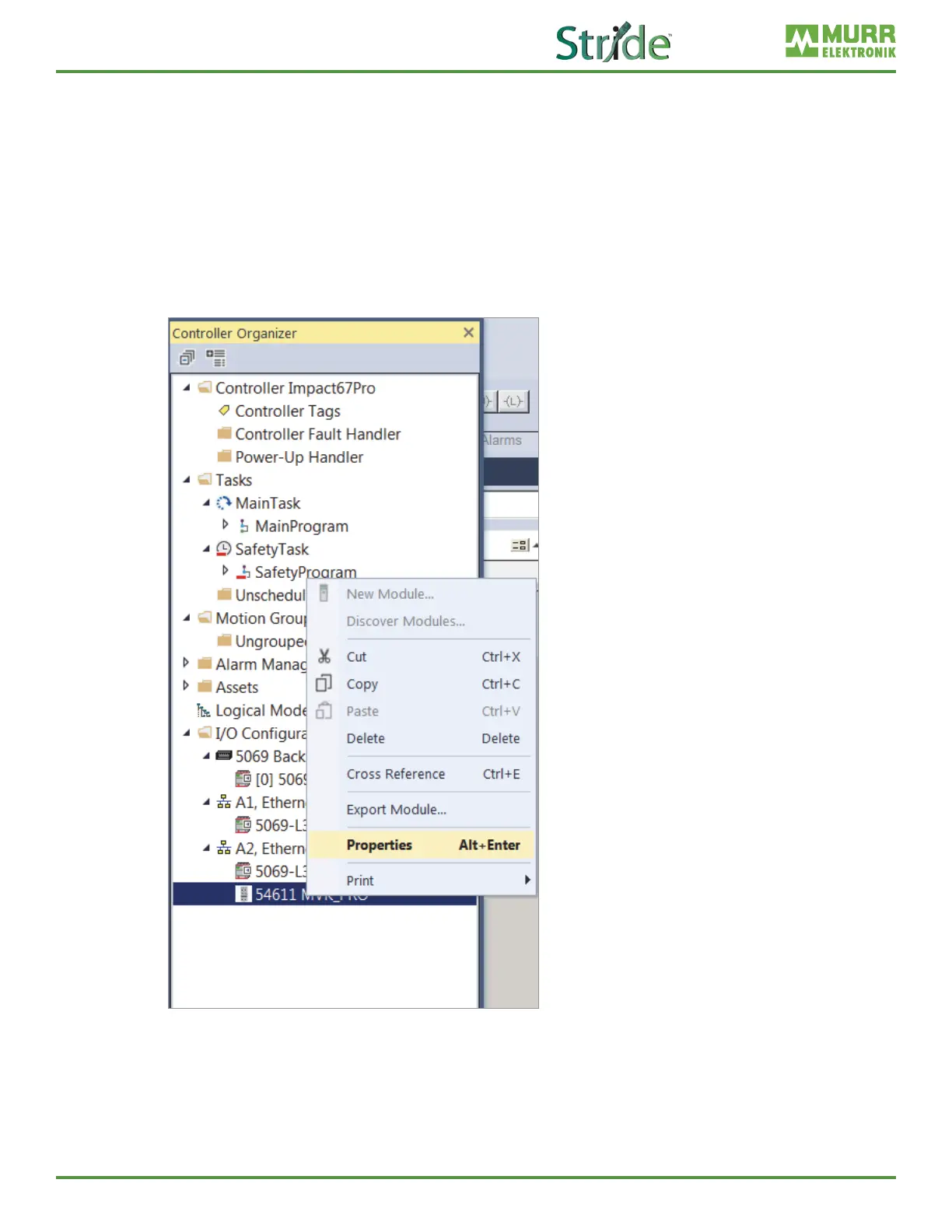

Fig. C-9: Searching a module.
