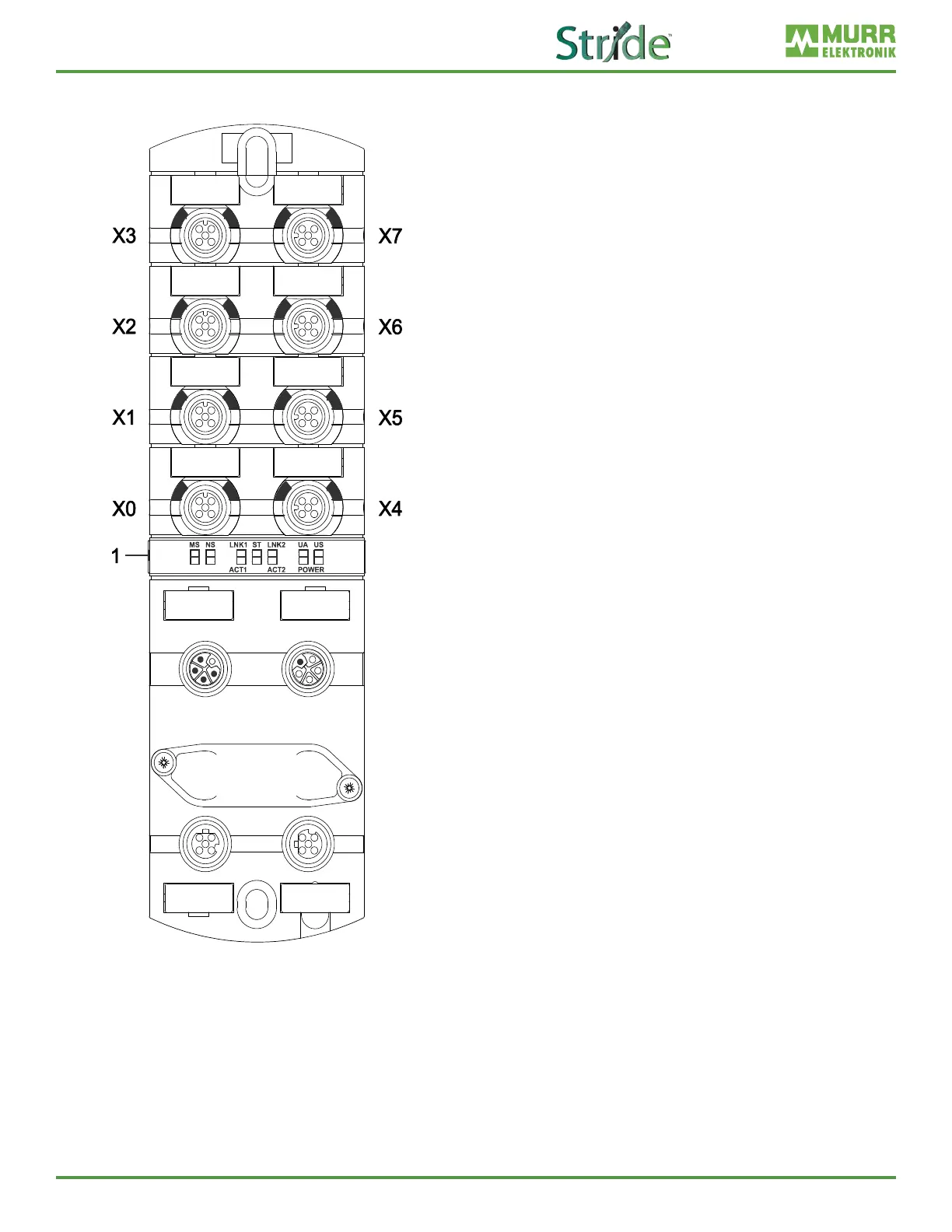

3.1.4. Display elements
X0–X7 LED digital inputs and outputs or IO-Link
1 LED MS (module conguration status)
LED NS (network status)
LED LNK1/ACT1 (Ethernet port 1 link/activity)
LED ST (module overall status)
LED LNK2/ACT2 (Ethernet port 2 link/activity)
LED POWER UA (actuator voltage)
LED POWER US (operating voltage)
Fig. 3-2: Display elements
