5.3. Mounting clearance
NOTE
➔ For correct installation and improved heat dissipation, we recommend keeping a minimum distance
of 3mm [0.12 in] when mounting the STRIDE IO-Link master.
NOTE
➔ If angled male connectors are used, a minimum distance of 50mm [2in] is required.
≥3 [0.12]
≥3 [0.12]

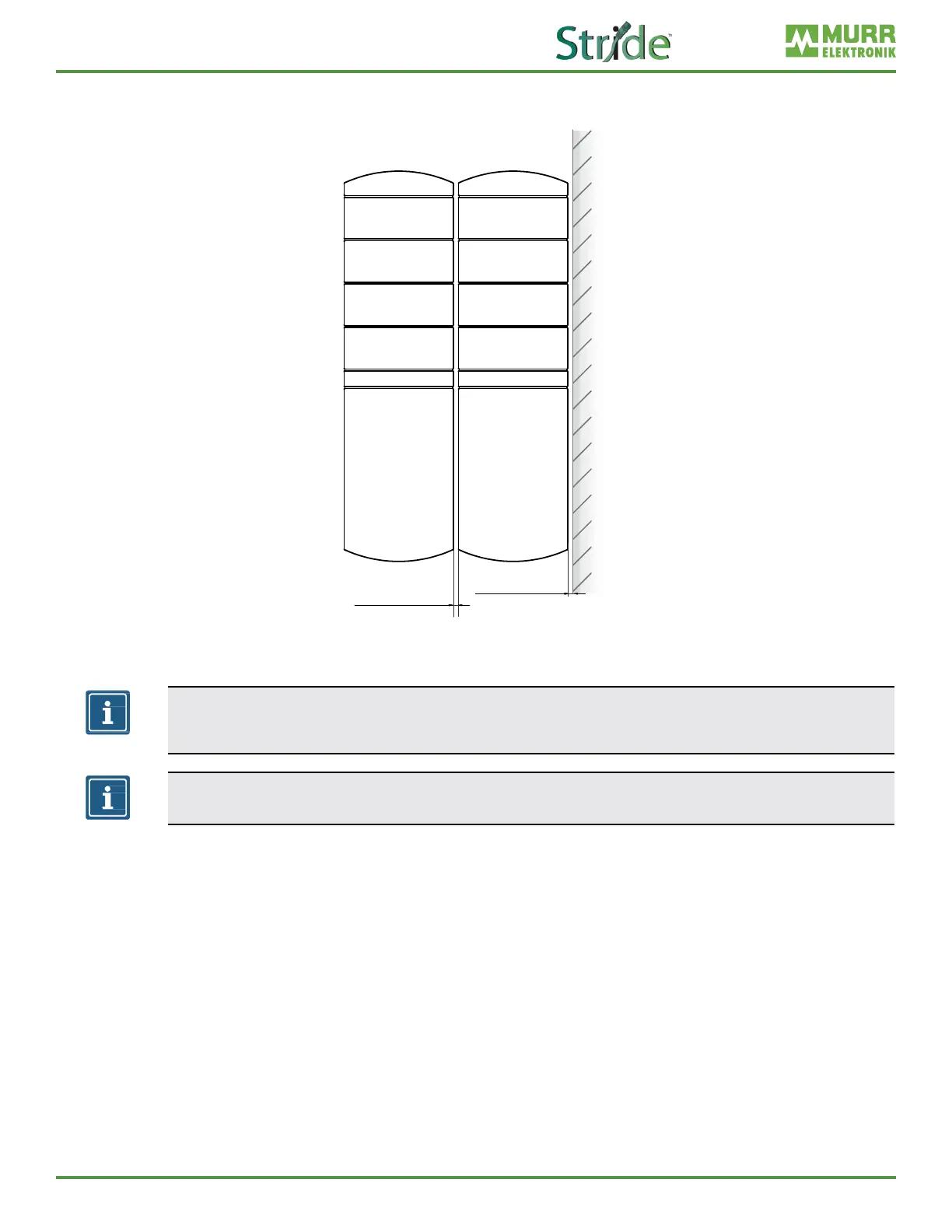

Fig. 5-2: Mounting clearance, mm [in].
