5. Mounting
5.1. Requirements
➔ Mount on a at mounting surface to avoid mechanical tension.
➔ Provide suitable grounding.
➔ Select a suitable installation site in terms of vibration and shock load, temperature and humidity
(see Section 4, “Technical Data”).
➔ Protect connections to avoid stress to connectors or cables by personnel or device.
5.2. Dimensions
63 [2.5]
23 [0.91]
25 [0.98]
200 [7.87]
209.4 [8.244]
225.4 [8.874]
36 [1.4]

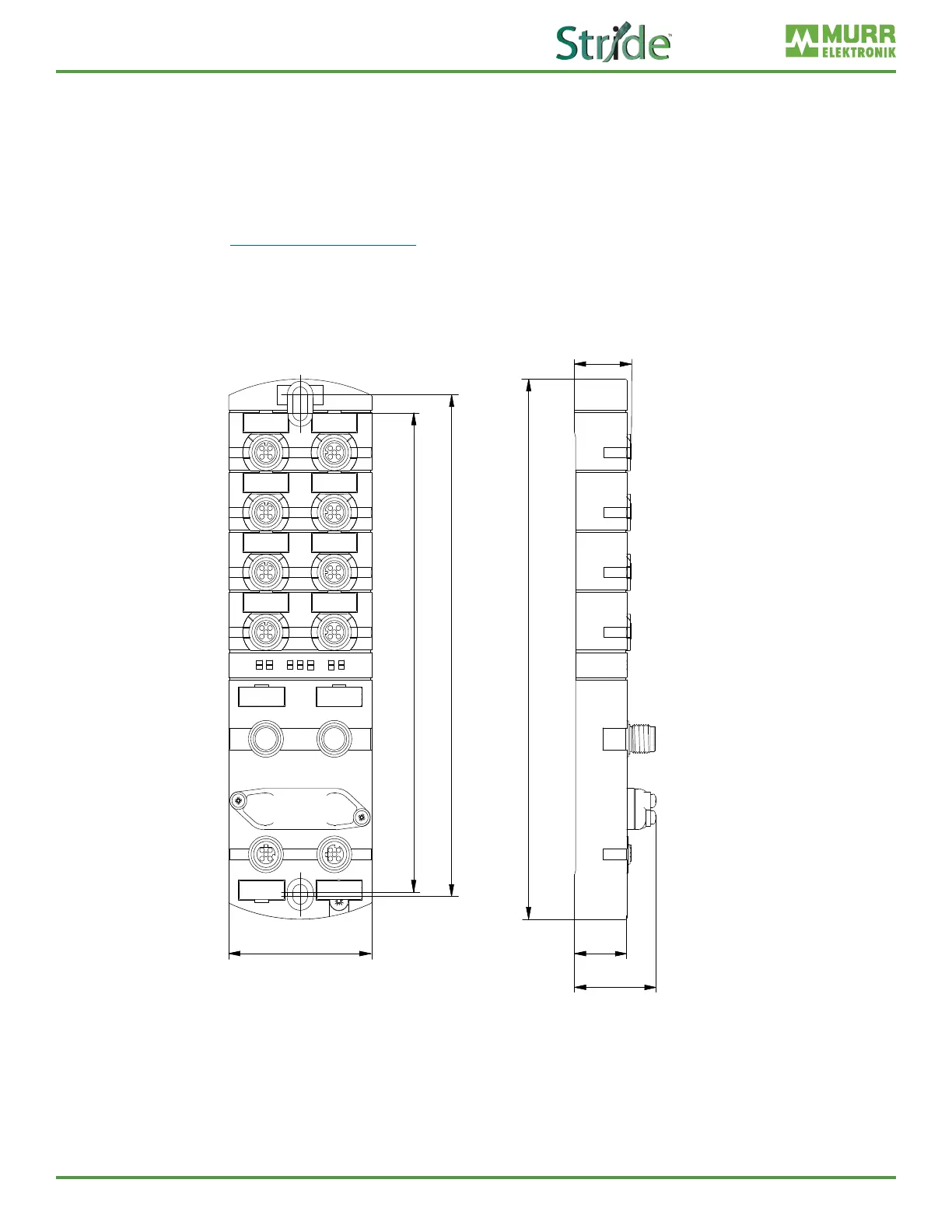

Fig. 5-1: Dimensions, mm [in].
