Sensor power supply
Please note:
◼ Sensors can be supplied via pin 1 (24V) and pin 3 (0V) of the M12 female connectors.
◼ The maximum permissible current for the power supply of the sensors is 1A for the digital I/O port
and 1A for the IO-Link port.
◼ In case of overcurrent or short circuit, the connected cable or sensor must be disconnected from the
M12 female connector.
Supported IO-Link communication
The module supports the IO-Link communication using the following speeds:
◼ 4,800 baud (COM 1)
◼ 38,400 baud (COM 2)
◼ 230,400 baud (COM 3)
NOTE
The module automatically selects the appropriate communication speed for the IO-Link device.
NOTE
Maximum cable length is limited to 20m [66ft] for IO-Link connection.
6.1.2. Connecting Ethernet bus
Connecting the M12 ports
Screw Size Torque Tool Required
M12 0.6 N·m [5 in·lb] M12 Torque Wrench
The pin assignment of the slots can be found in Section 3.1.3, “Connections”.

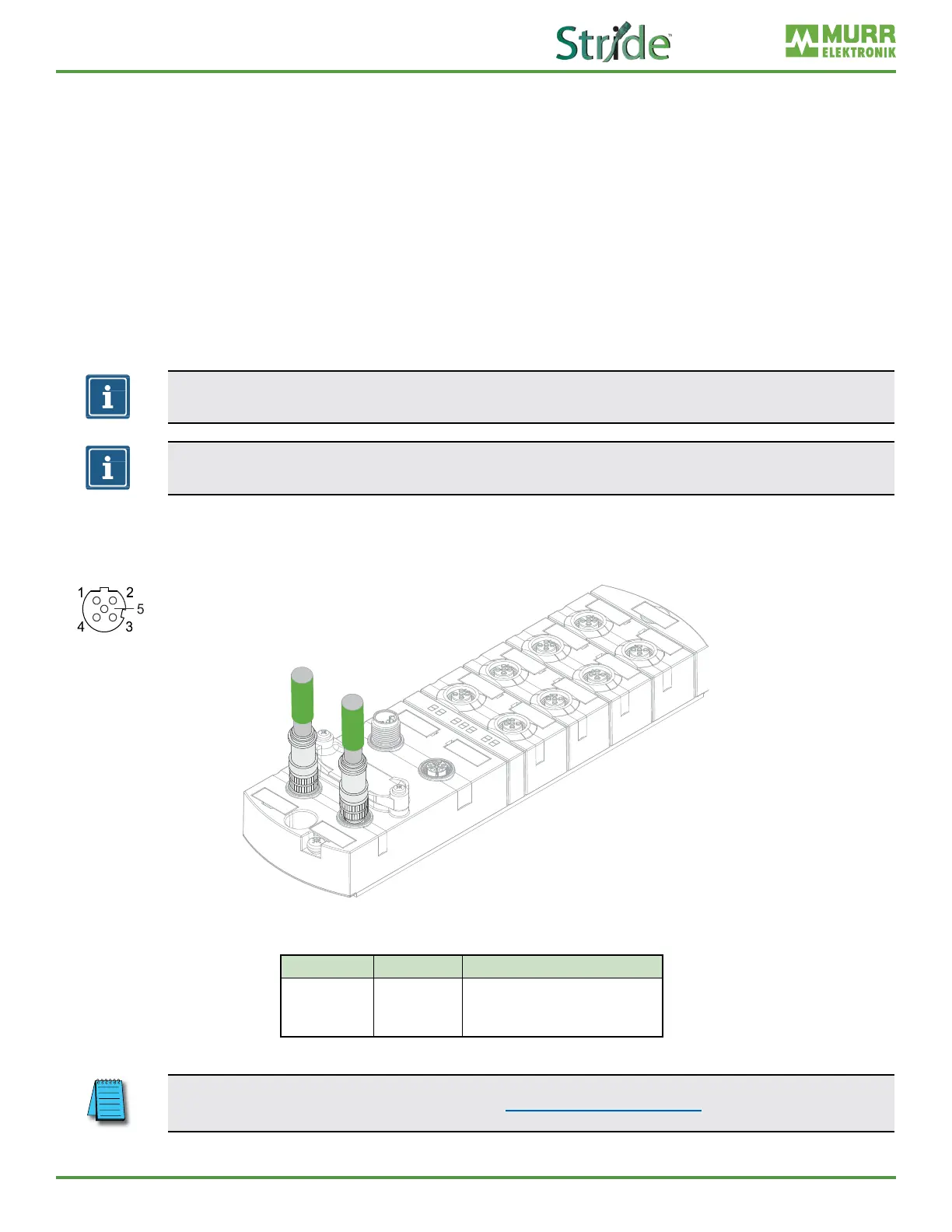

Fig. 6-2: Example of M12 connection (Ethernet bus).
