SIOL-EI8B-USER-M
25
Installation Powered by
Version 1, May 2022
6.1.1. Connecting sensors and actuators
Connecting the M12 ports
Screw Size Torque Tool Required
M12 0.6 N·m [5 in·lb] M12 Torque Wrench
The pin assignment of the slots can be found in Section 3.1.3, “Connections”.
NOTE
Feeding in an external ground via M12 female connectors can lead to faults.
➔ Do not feed external ground to the module via M12 female connectors.
NOTE
Maximum cable length of the sensor and actuator cables is limited to 30m [98ft].

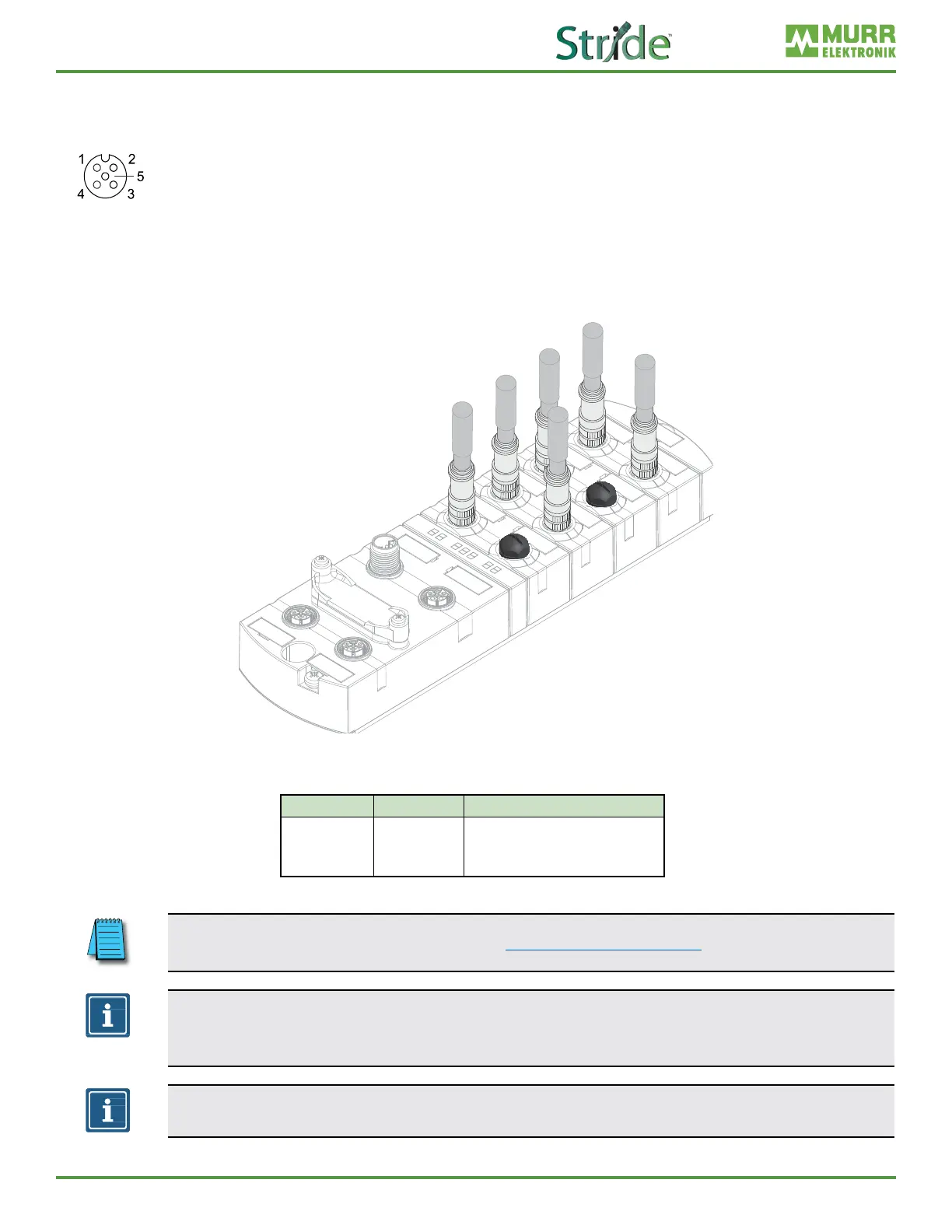

Fig. 6-1: Example of M12 connection inputs and outputs.
