9. Operation
9.1. LED indication
The module has separate and clearly arranged indicators:
◼ LED indication for inputs and outputs
◼ LED indication for bus
◼ LED indication POWER
◼ Extended LED indications
The LEDs on the front panel of the module are labeled for clear identication of the displayed information.
9.1.1. LED assignment to channel and pin
A separate status display is assigned to each input and output.

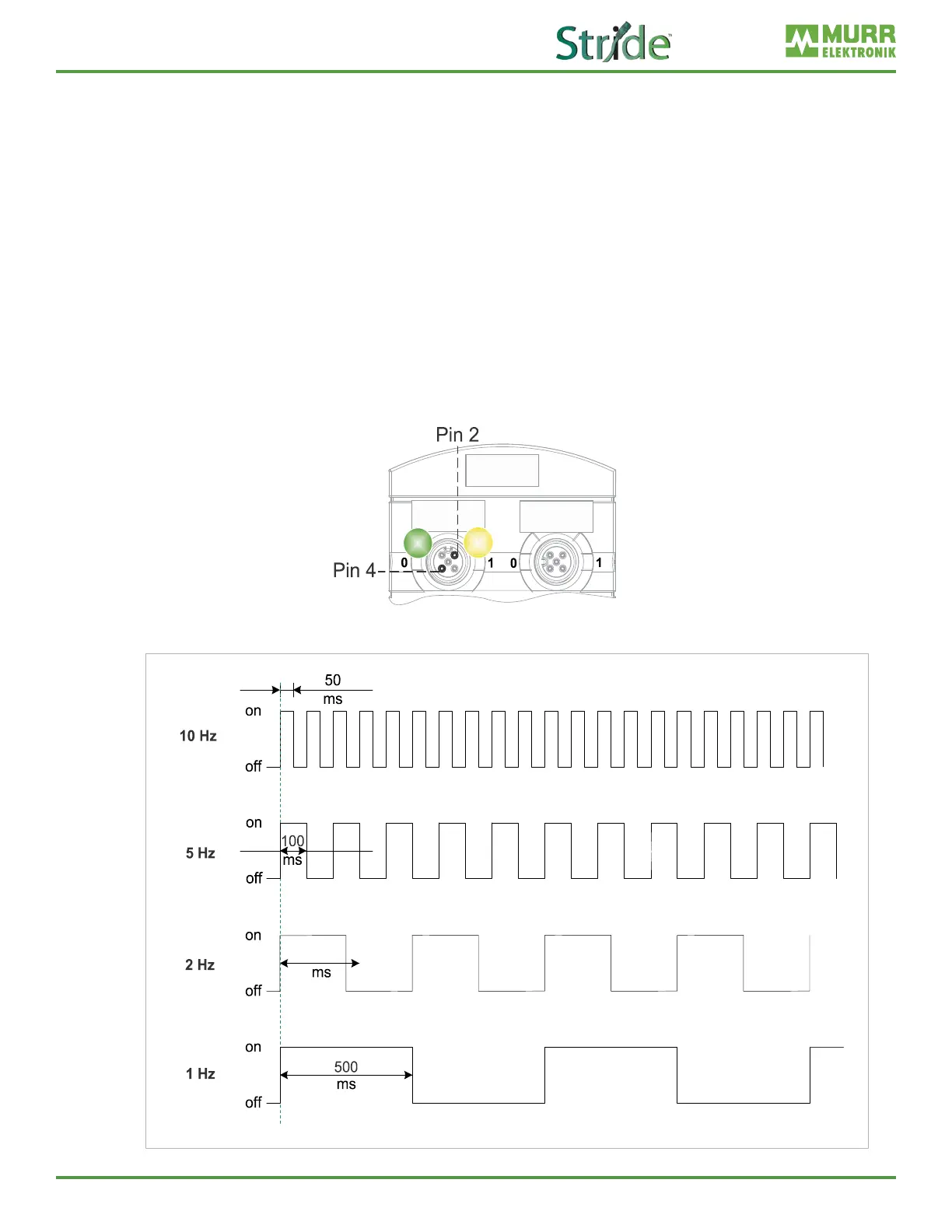

◼ LED 0 corresponds to pin 4.
◼ LED 1 corresponds to pin 2.
9.1.2. LED ashing behavior
250
Fig. 9-1: LED ashing behavior.
